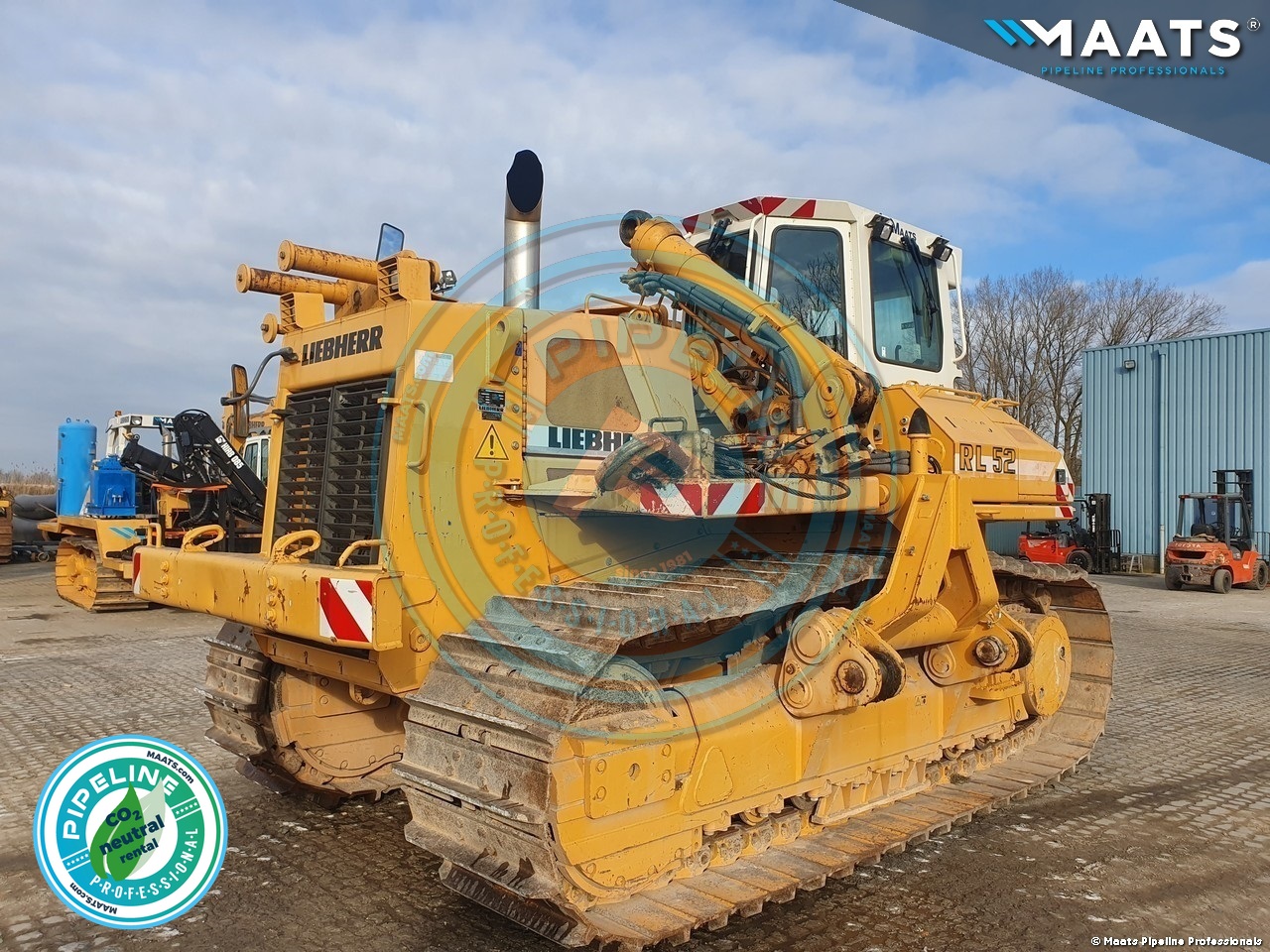

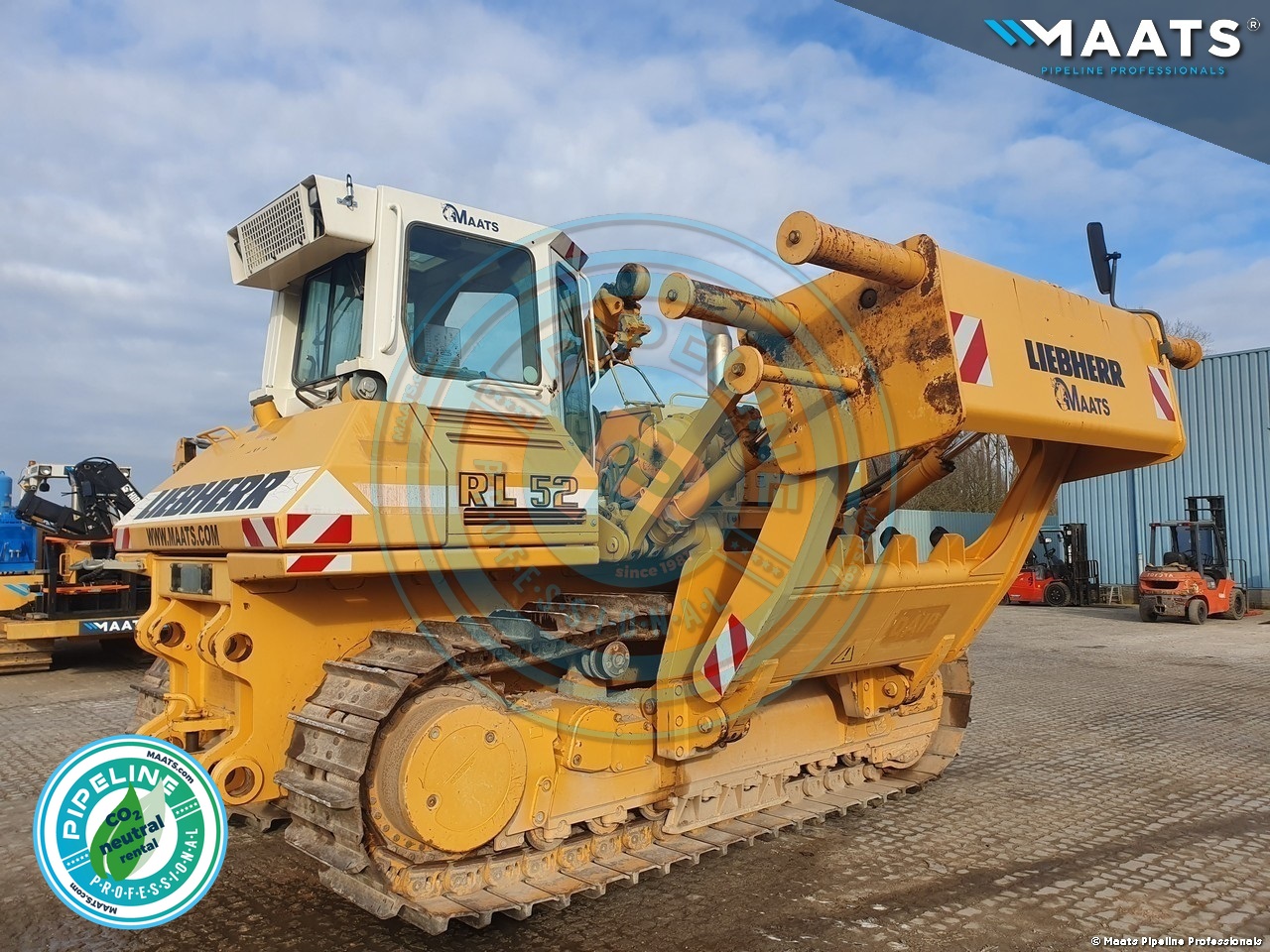

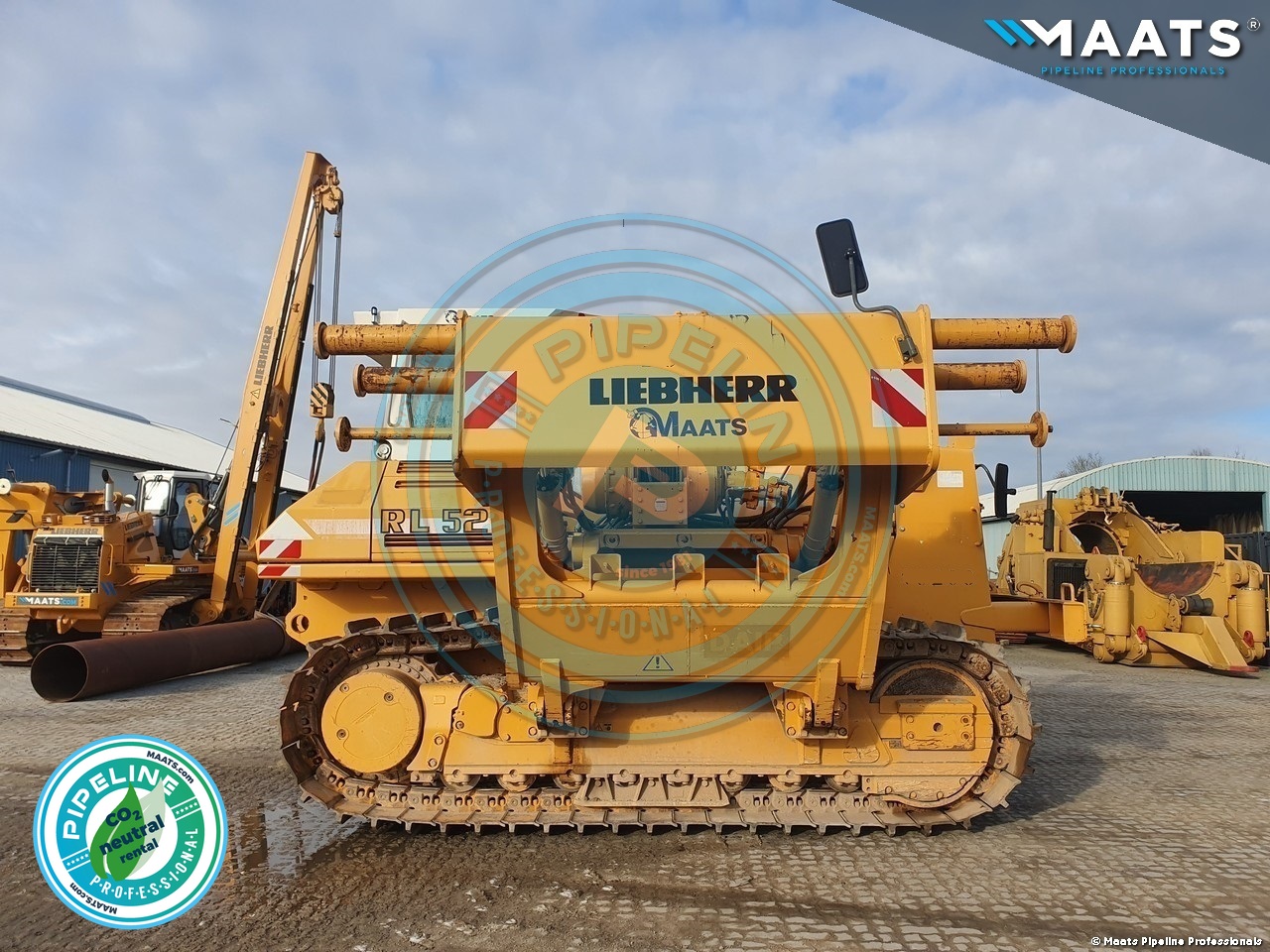

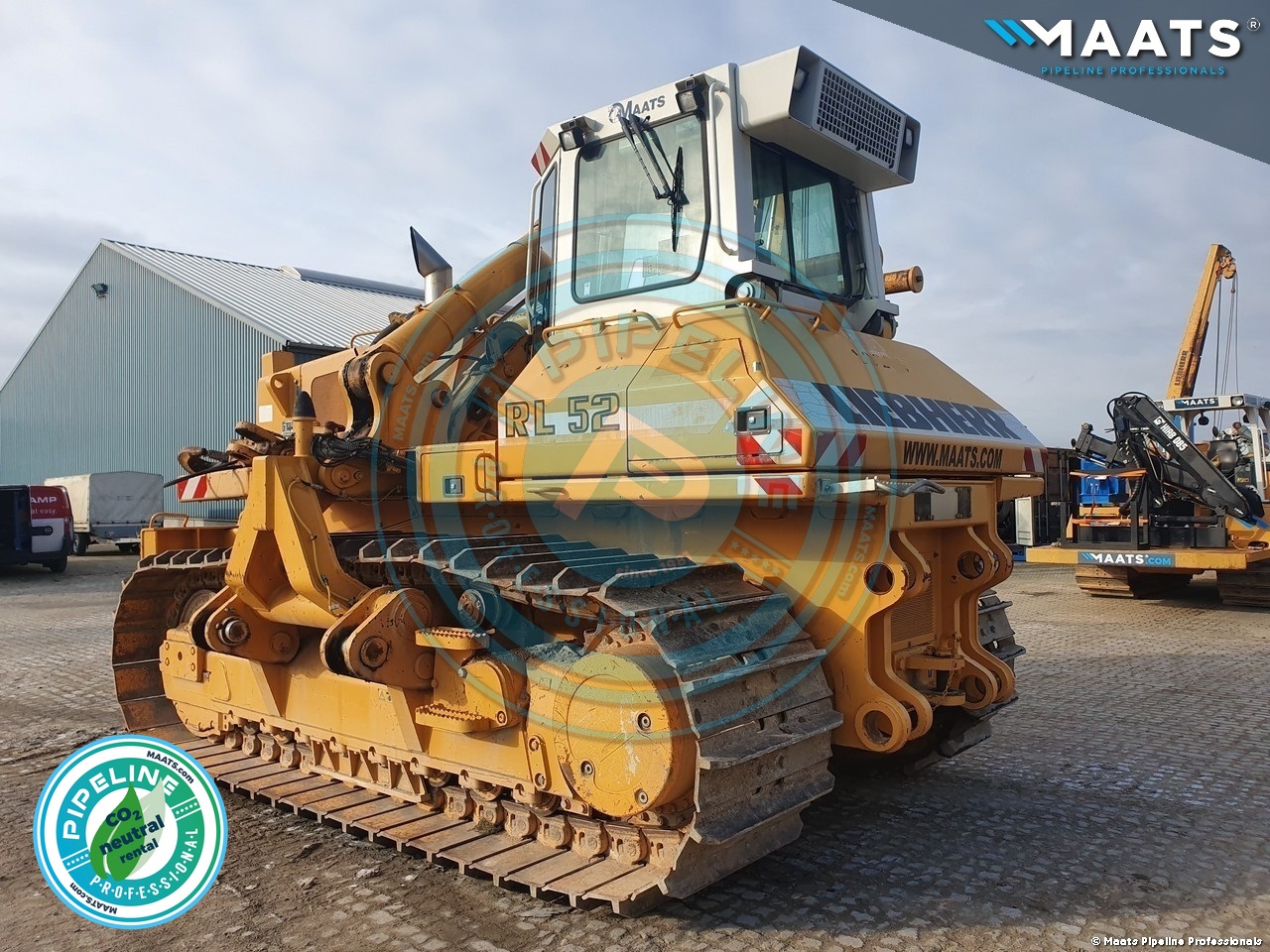

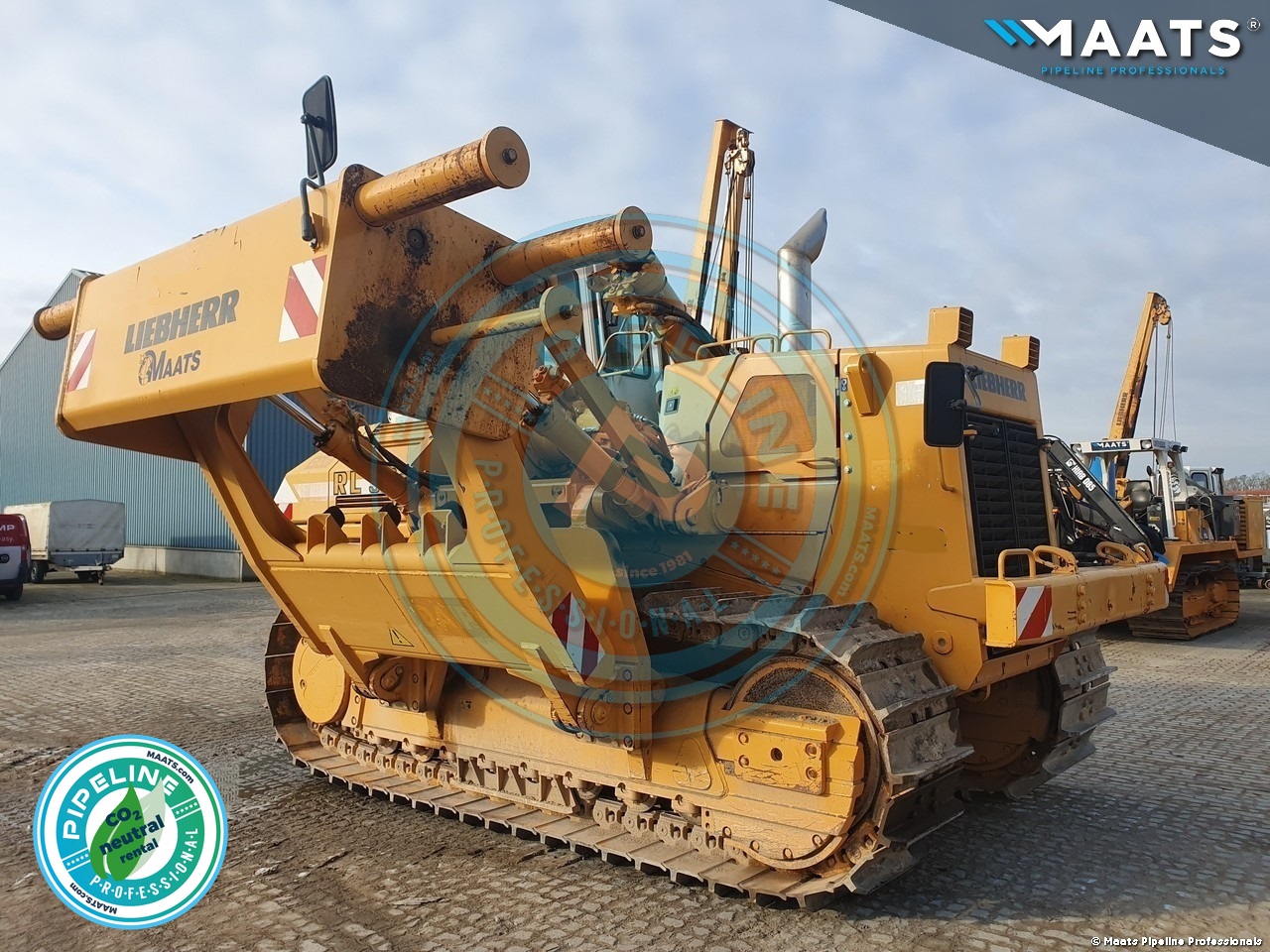

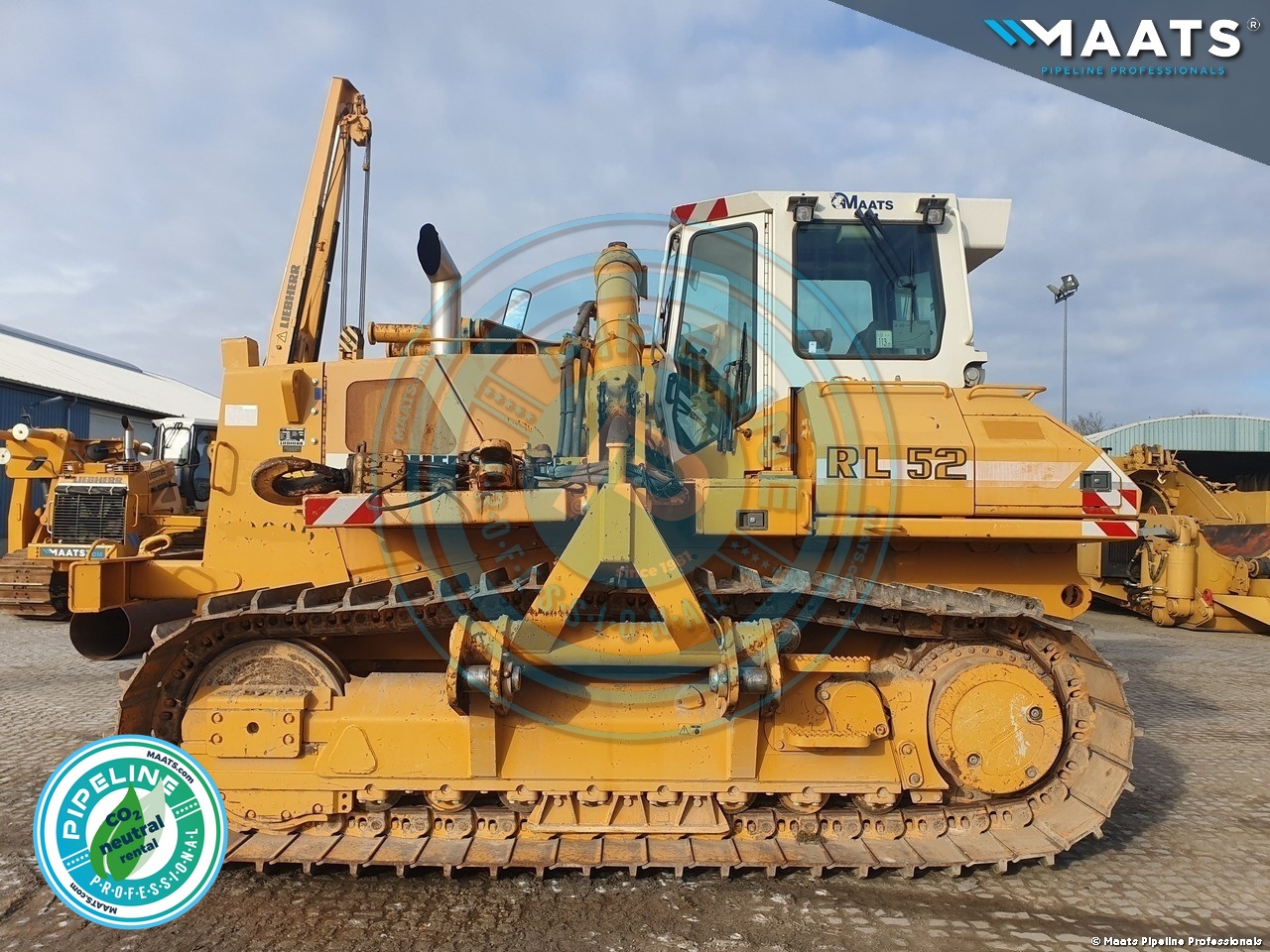

liebherr RL52 litronic
liebherr rl52 pipelayer lift capacity 80.000 kgs
Manufacturer | LIEBHERR |
Model | RL52 Litronic Sideboom Pipelayer |
Year of manufacture | 2007 |
Recorded hours | 5.000 hours |
Operating weight | 52.300 kgs |
Lift capacity | 80.000 kgs |
Certification | CE |
Engine make & model | LIEBHERR D9406T1-E A4 |
Engine output | 243 kW |
Emission standards | EU Stage IIIA & USA EPA Tier3 |
Fuel tank capacity | 610 liters |
Configuration | ROPS cab with heating |
Air conditioning | |
Boom 8.500 mm | |
Track pads 914 mm & 710 mm | |
Centre track guide | |
Acoustic back-up alarm | |
Fourteen (14) removable counterweights | |
Hydraulic driven winch | |
Partially prepared for arctic conditions (-40 degrees) | |
Free fall control | |
Load monitoring system | |
Transport dimensions (LxWxH) | Base machine: 5.800 mm x 3.750 mm x 3.650 mm |
Weight base machine: 40.100 kgs | |
Boom: 8.500 mm x 1.450 mm x 500 mm | |
Weight boom: 2.375 kgs | |
a) Counterweight - 7 units: 1.050 mm x 1.250 mm x 100 mm | |
Weight each: 810 kgs | |
b) Counterweight - 7 units: 1.050 mm x 800 mm x 100 mm | |
Weight each: 515 kgs | |
Remarks | Availability subject to prior rental or sale |
Machine is currently rented | |
Machine is available for rental as well: contact us for our rental rates | |
Product brochure | Specifications Liebherr RL52 |
Price | Contact us for a detailed quotation including pictures and price |
Contact Roderik van der Velde for more details: velde@maats.com | +31 (0)6 86 89 80 55 |
