Pipe Carrier
Maats has further developed the RL24 Pipelayer into an efficient pipe carrier RT24 for transporting pipes on the jobsite. Converting back to RL24 pipe layer is easy.
The flexibility makes the RL24 suitable for multiple tasks without compromising on power or reliability.
Next in line
Discover the next product in our lineup.
Need more information?
Please contact our sales department, they can and will be happy to help you.Specifications
Specifications

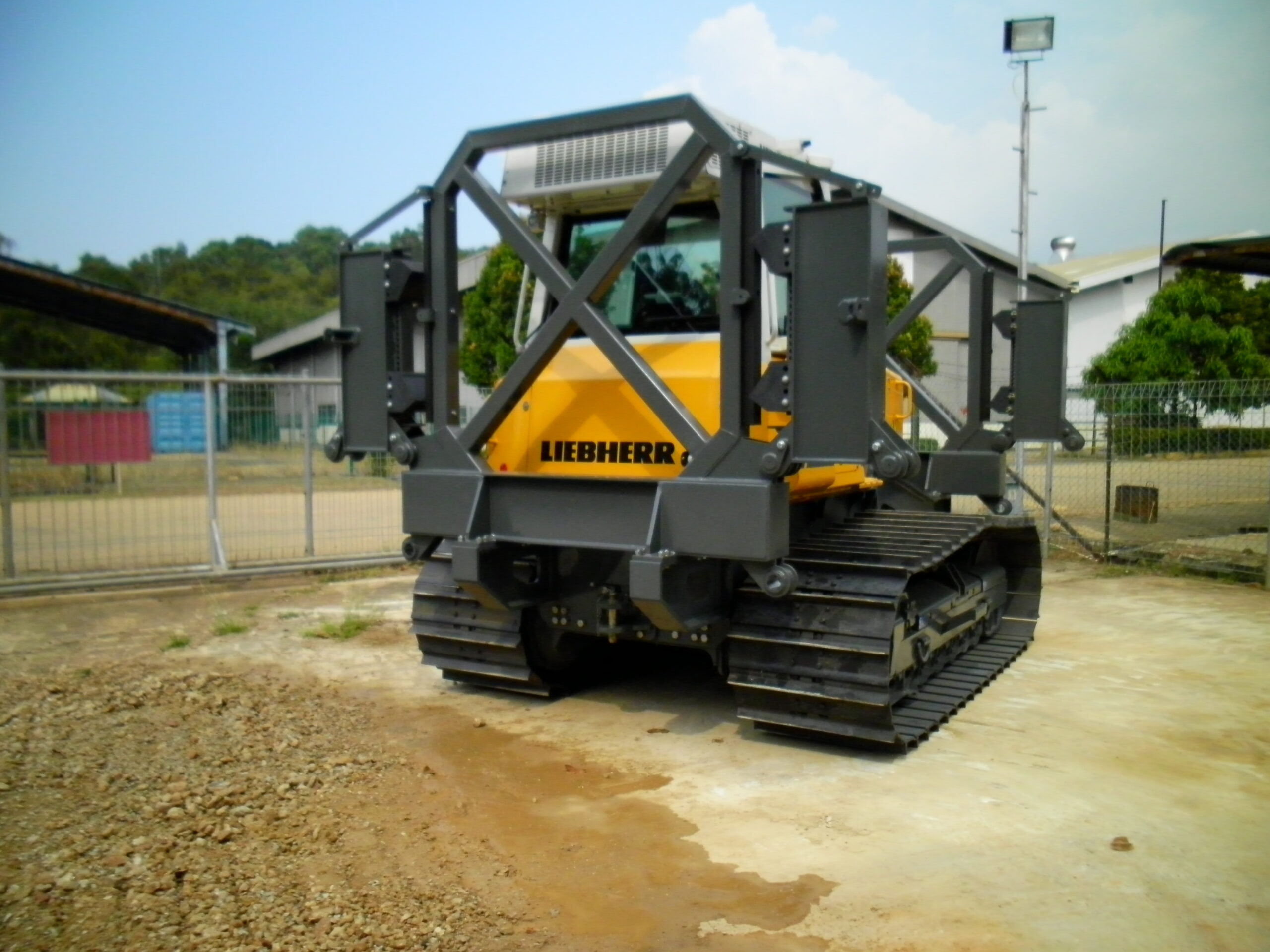

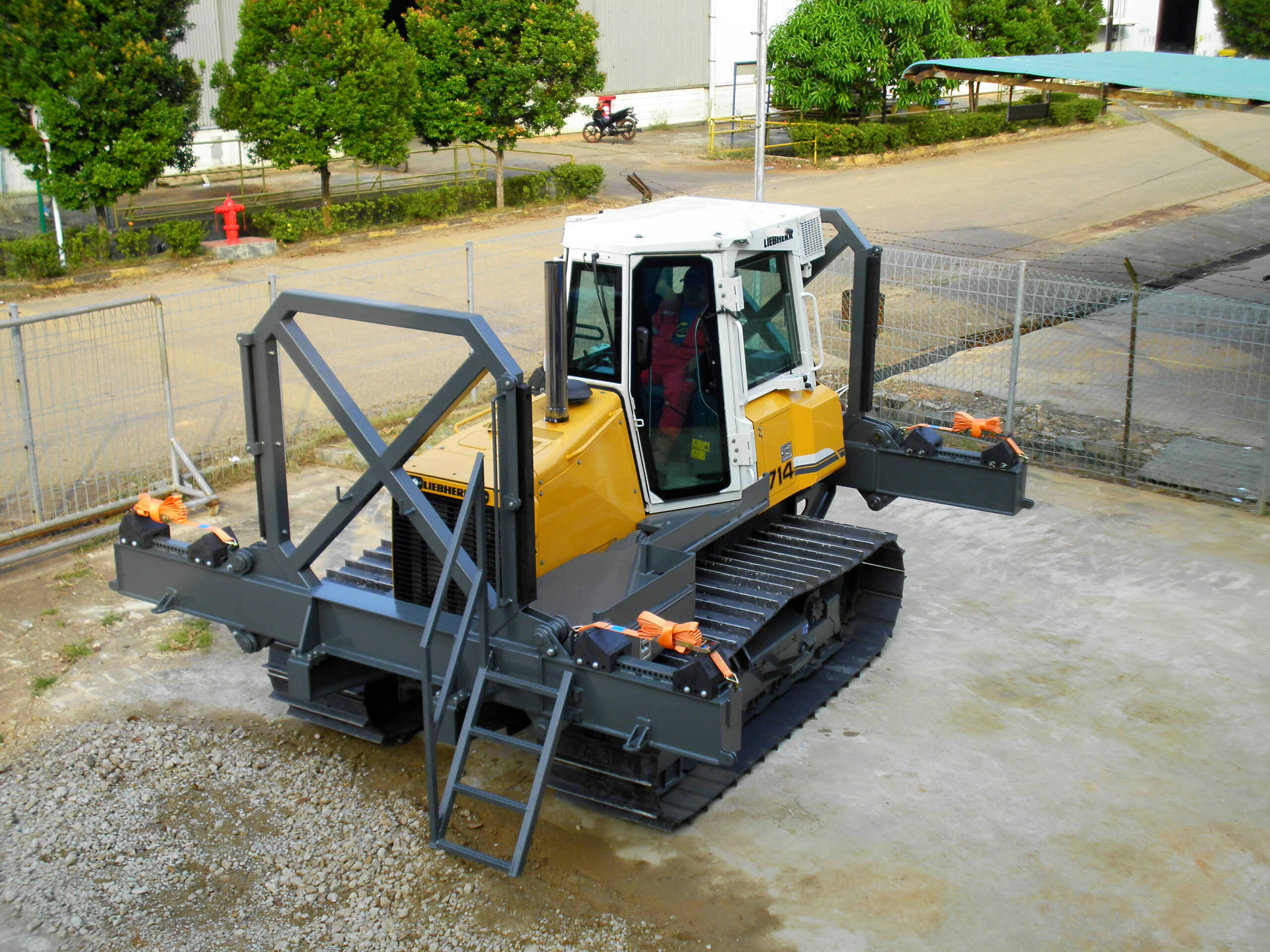

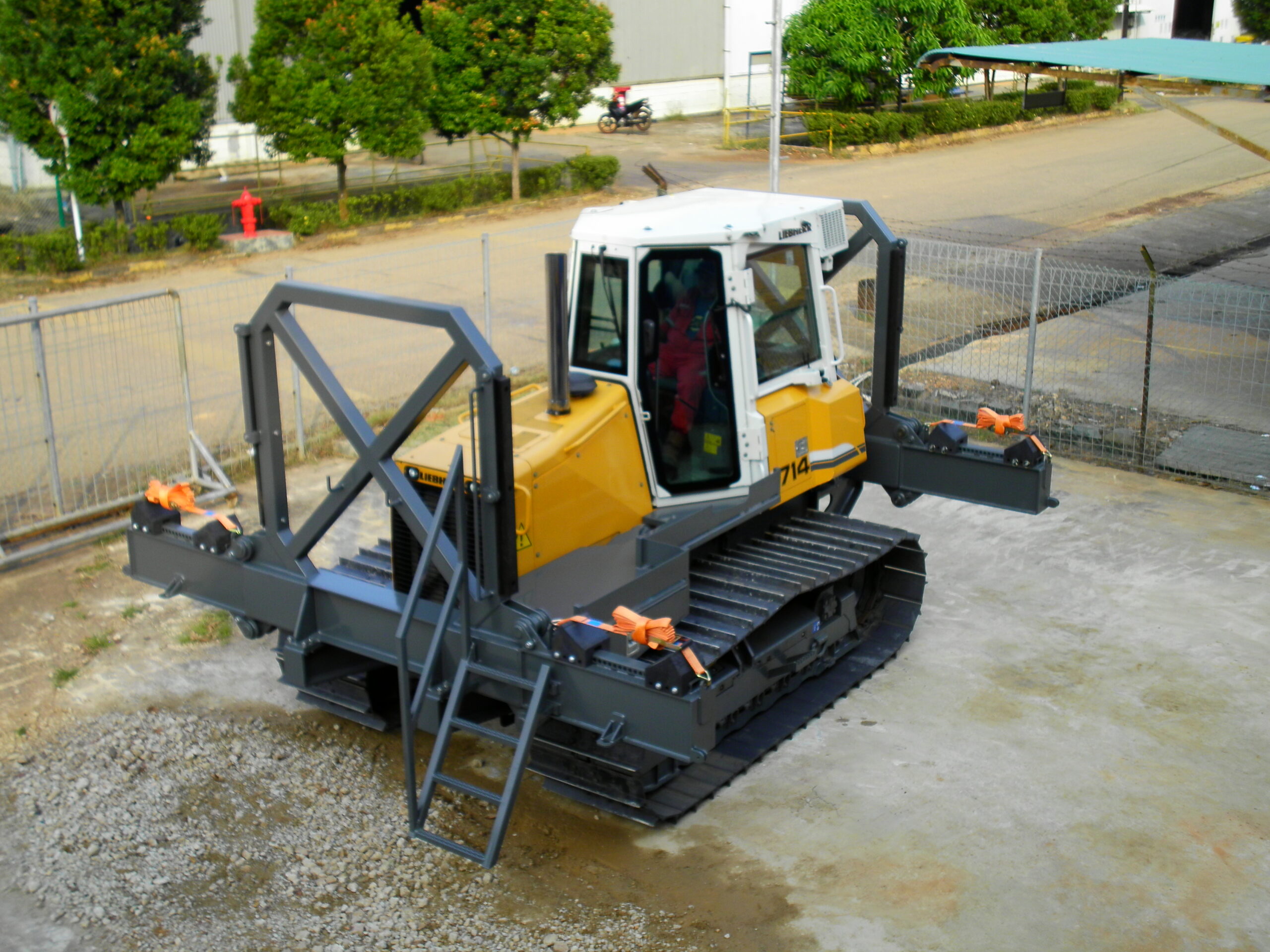

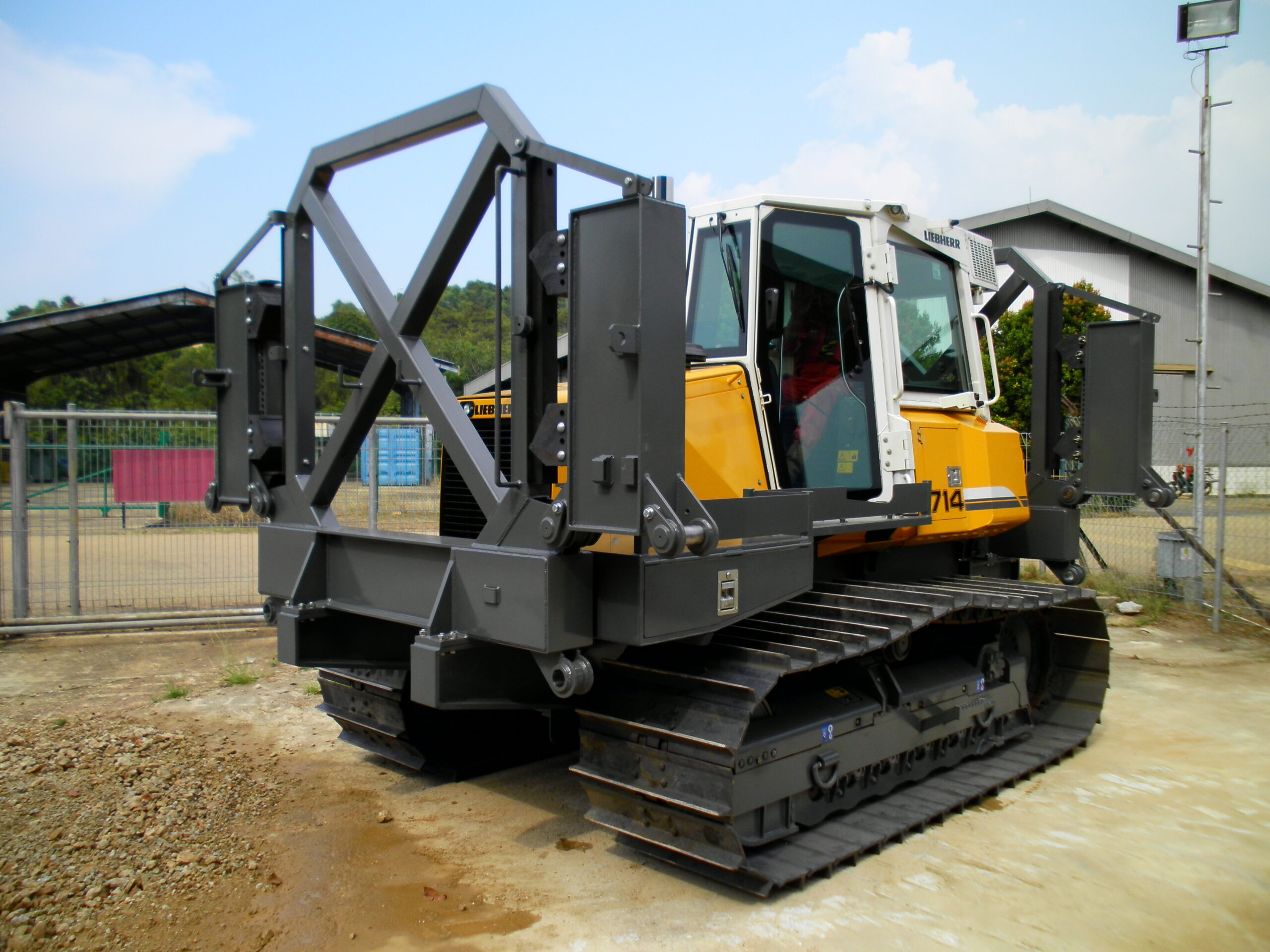

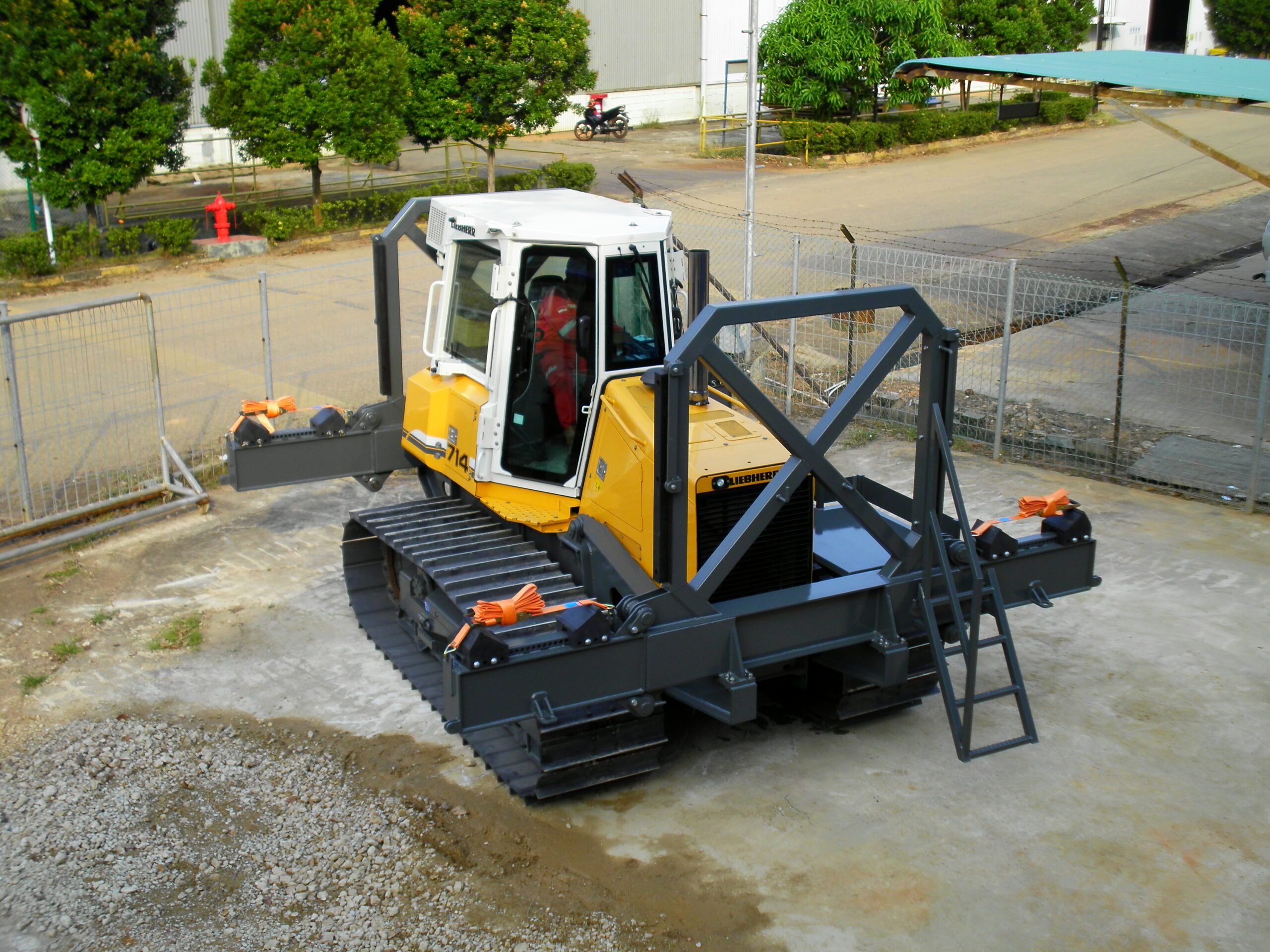

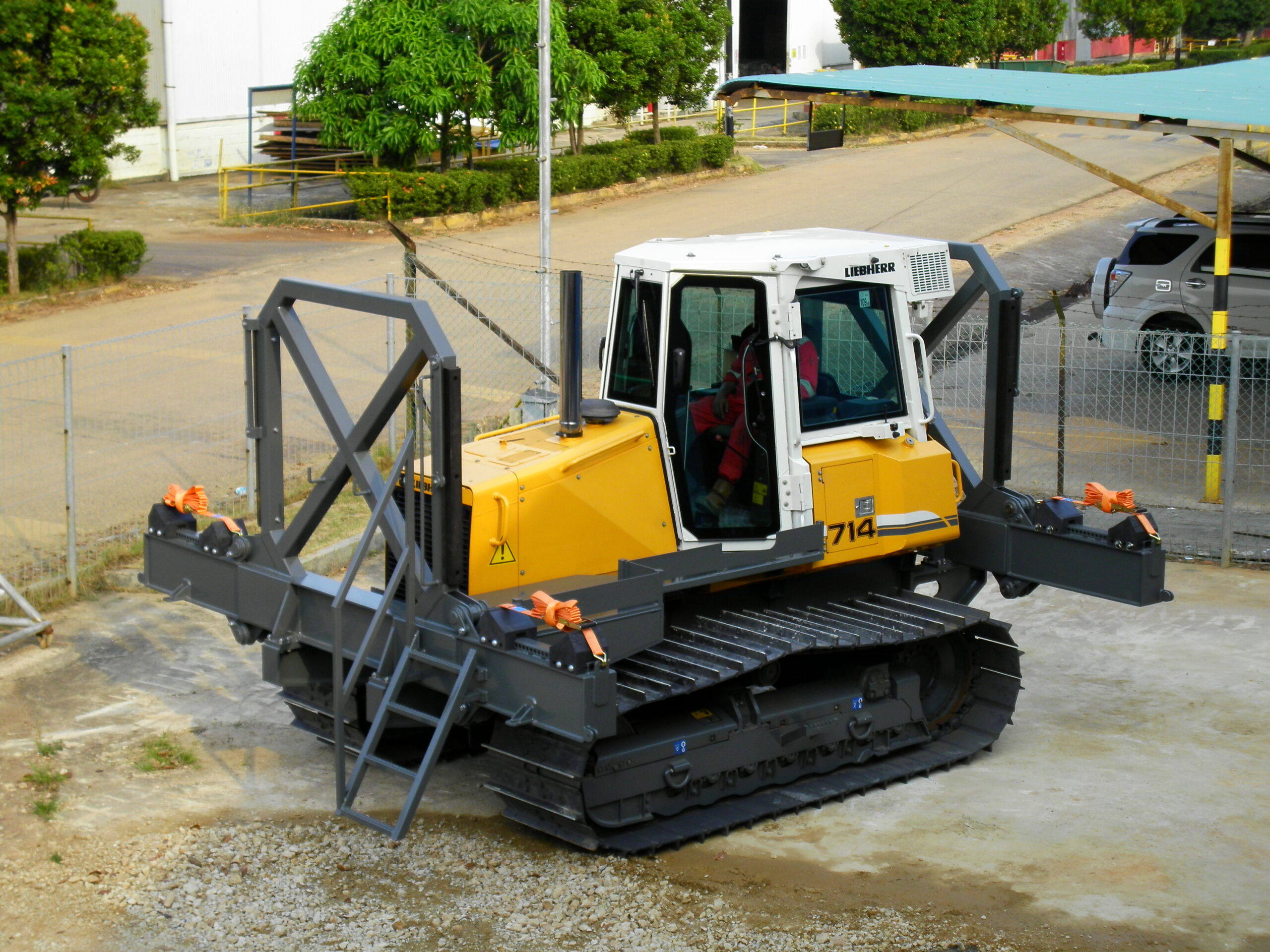

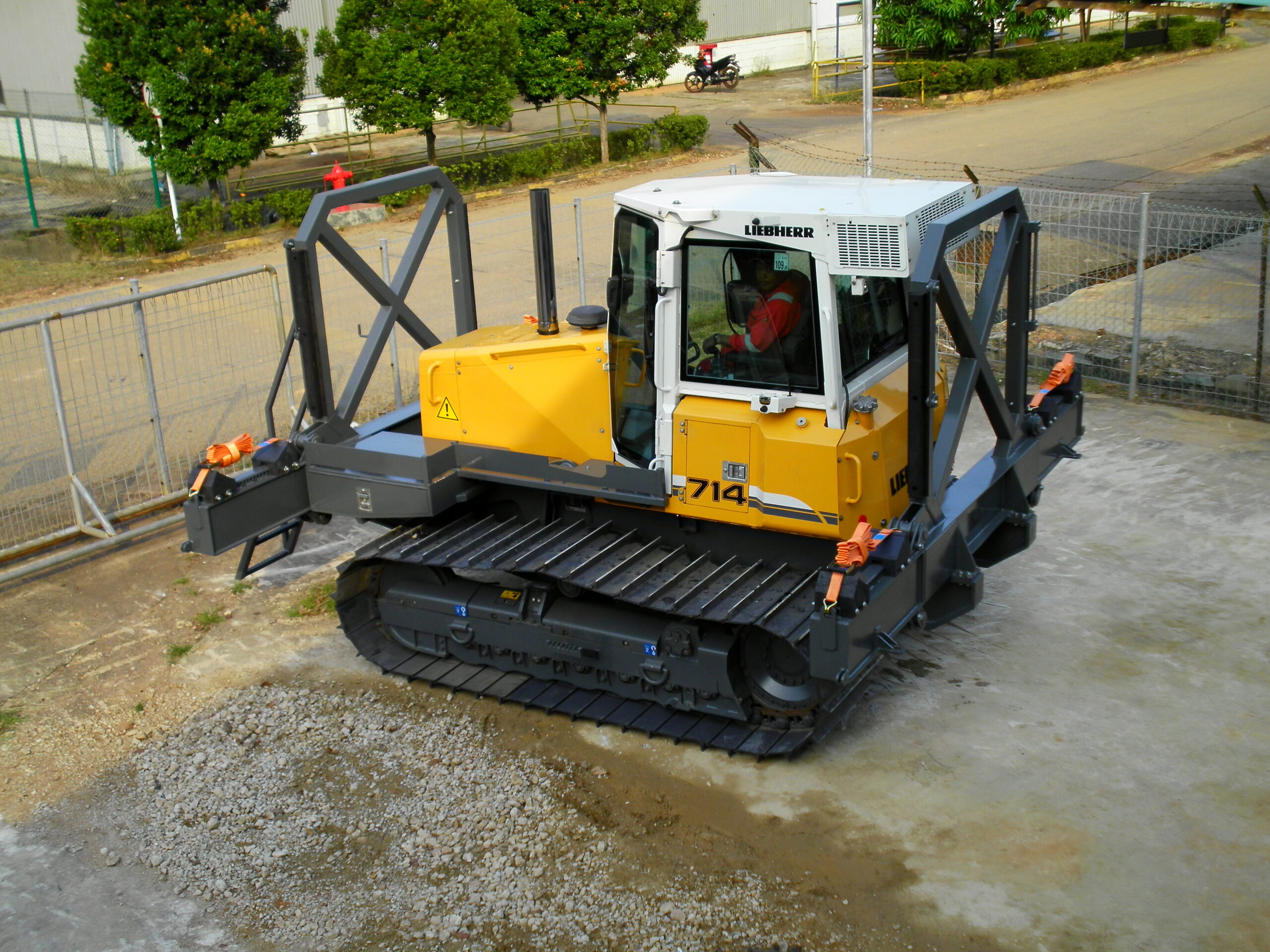

The Maats RT24 is based on the proven RL24 pipelayer and has been converted into a dedicated pipe carrier for transporting pipes ranging from 16 to 38 inches in diameter.
Thanks to its modular design, the machine can be easily and quickly converted back into a standard RL24 pipelayer.
This additional transport capability makes the RT24 a highly versatile solution, offering maximum flexibility and efficiency on the jobsite.
- Operating weight 21.900 kgs
- Lifting capacity 24.000 kgs
- Width trackpads 762 mm
- Engine make & model John Deere PowerTech 6068H
- Engine output 60 kW
- Exhaust gas after-treatment No
- Emission standards EU Stage IIIA
-
Standard configuration
• Closed ROPS cab
• Air conditioning
• Center track guide
• Back-up alarm (acoustic)
• Fixed counterweight
• Hydraulic drive hoist winch
• Free fall control
• Hydraulic PTO
• Lubricated single grouser track pads - Optional configuration Solid steel pipe carrying system to support pipes from 16-inch to 38-inch
