Maats has developed and manufactured a comprehensive range of pipe bending machines covering diameters from 6 to 60 inches. Built primarily with high-quality Liebherr components, these machines are renowned for their outstanding durability, precision, and reliability. Within the industry, they are widely regarded as the benchmark for build quality and operational performance.
Bending Machines for Pipeline Construction
Maats offers a range of bending machines available for both rental and sale, designed for the cold bending of steel pipes in pipeline construction projects. These machines are engineered to deliver precise, consistent bends while maintaining the structural integrity of the pipe.
Cold bending is a critical process in pipeline installation, allowing pipes to follow the natural contours of the terrain without the need for welding multiple sections. Our bending machines are suitable for various pipe diameters and wall thicknesses, making them a reliable solution for a wide range of applications.
In the sections below, you will find more detailed information about the different types of bending machines available and their specific capabilities.

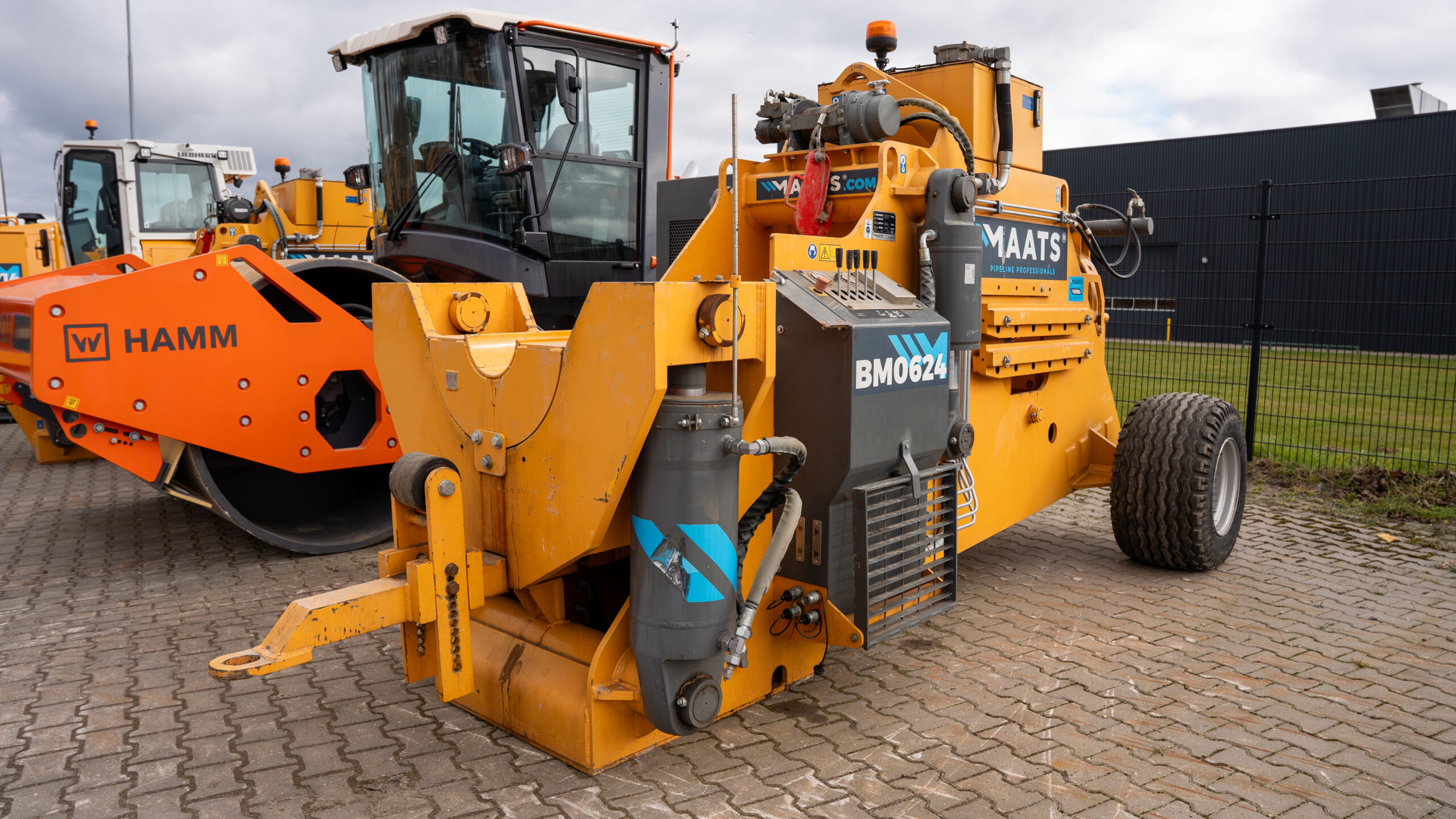

The Maats BM06-24 Pipe Bending Machine is engineered for bending pipe diameters ranging from 6″ to 24″ and has an operating weight of approximately 9.250 kgs. It is powered by a Yanmar engine, delivering reliable and efficient performance in demanding pipeline construction environments.

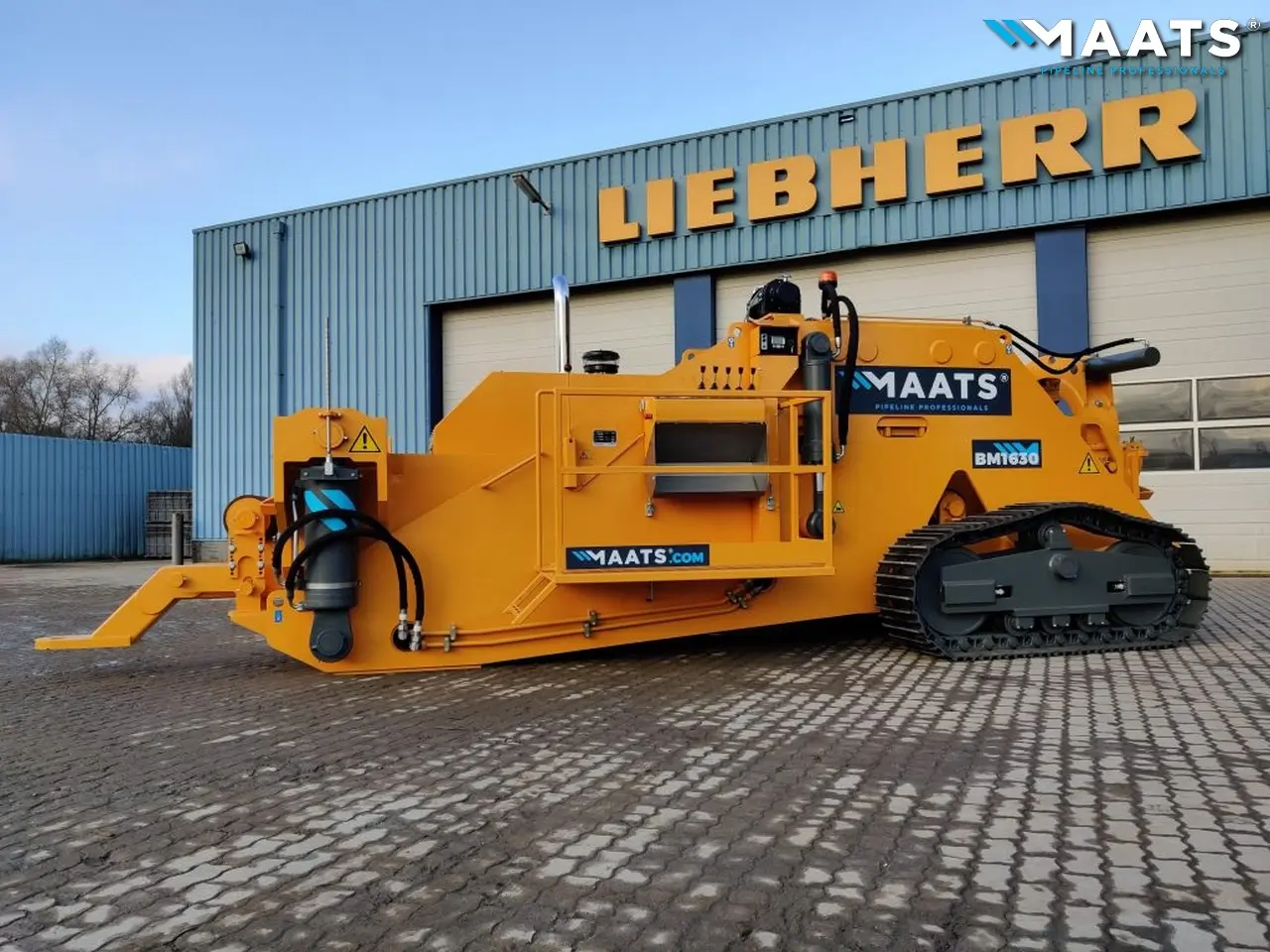

The Maats BM16-30 Pipe Bending Machine combines power, precision, and efficiency for pipelines ranging from 16 to 30 inches in diameter. Weighing approximately 22.500 kgs and powered by the advanced FPT N45 engine, it delivers reliable, low-emission performance to meet the demands of today’s pipeline construction industry.

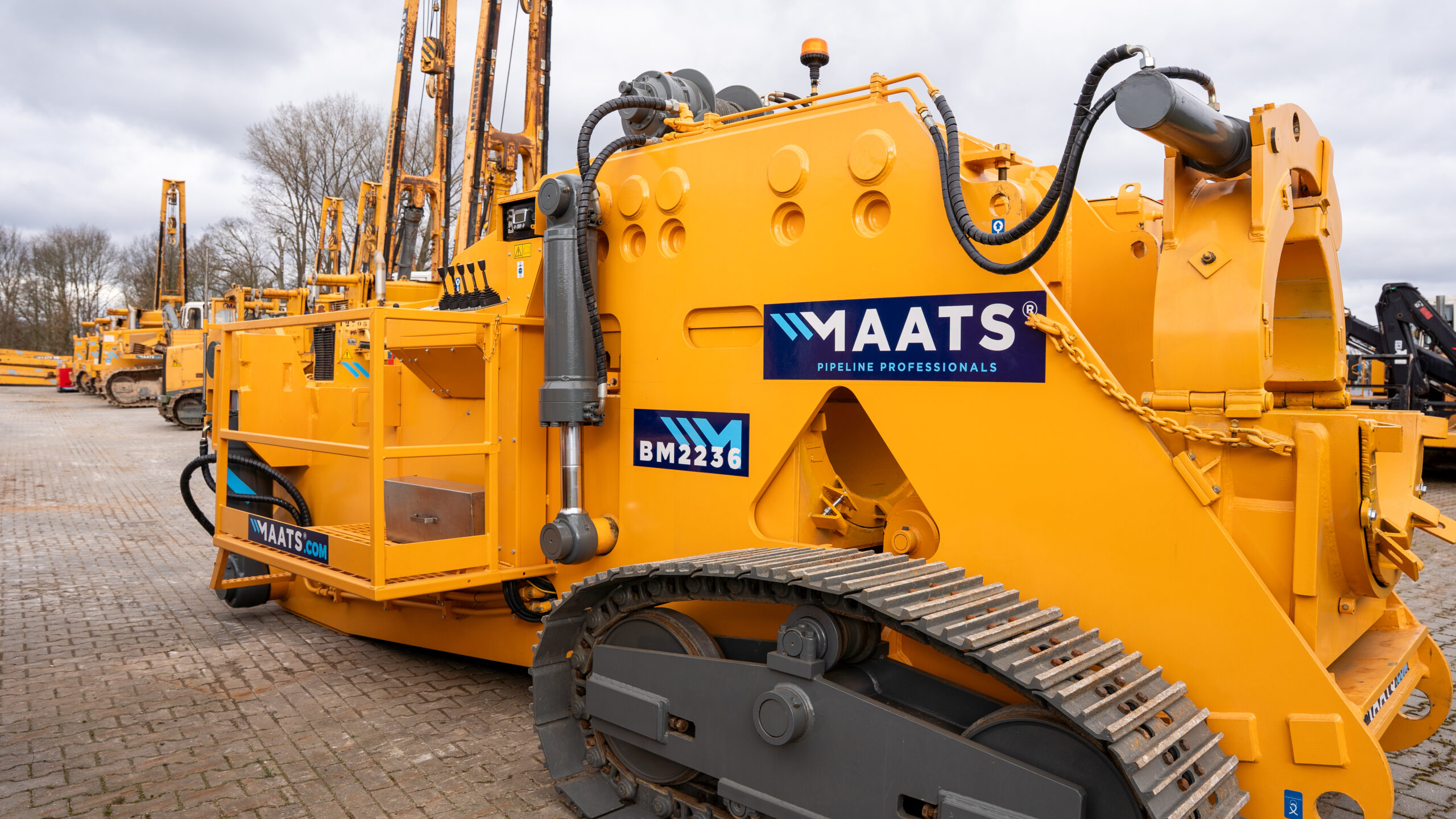

The Maats BM22-36 Pipe Bending Machine delivers outstanding performance and efficiency for pipe diameters from 22 to 36 inches. Weighing approximately 25,500 kg and powered by the advanced FPT N45 engine rated at 125 kW, it provides reliable, low-emission operation tailored to the demands of modern pipeline construction.

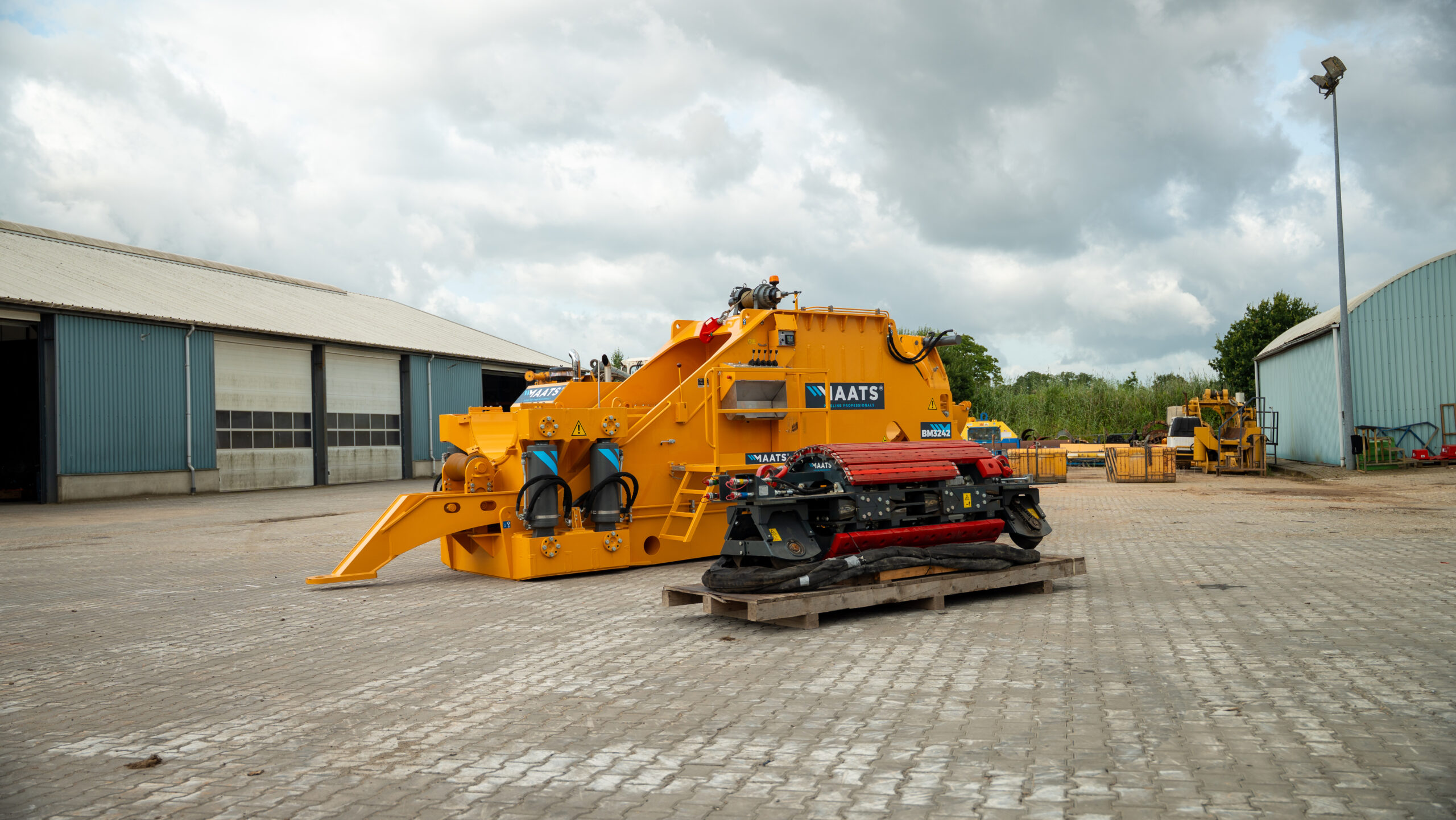

The Maats BM32-42 Pipe Bending Machine combines power, precision, and efficiency for large-diameter pipelines ranging from 32 to 42 inches. Weighing approximately 42.500 kgs and powered by the advanced FPT N45 engine, it ensures reliable, low-emission performance for demanding pipeline construction environments.
The Maats BM36-48 Pipe Bending Machine is purpose-built for demanding pipeline applications, handling pipe diameters from 36 to 48 inches with precision and power. Weighing approximately 64.500 kgs and driven by the robust Liebherr D934 L A6 engine rated at 180 KW, it delivers exceptional bending force and consistent performance under the toughest site conditions.

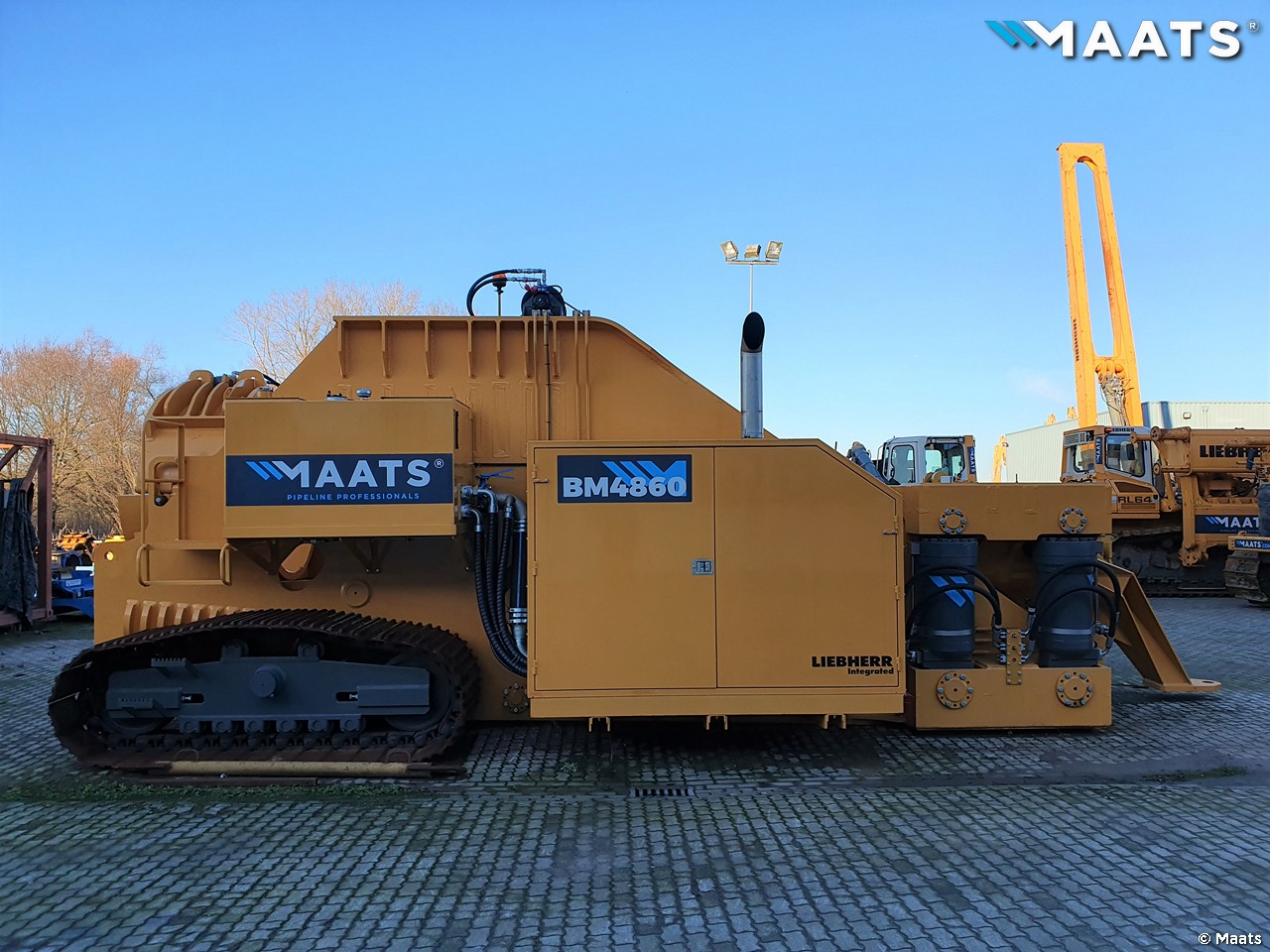

The Maats BM48-60 Pipe Bending Machine delivers exceptional strength and precision for large-diameter pipelines from 48 to 60 inches. Weighing approximately 88.000 kg and powered by the robust Liebherr D946 L A6 engine with an output of 275 kW, it offers outstanding power, reliability, and performance for the most demanding pipeline bending applications.

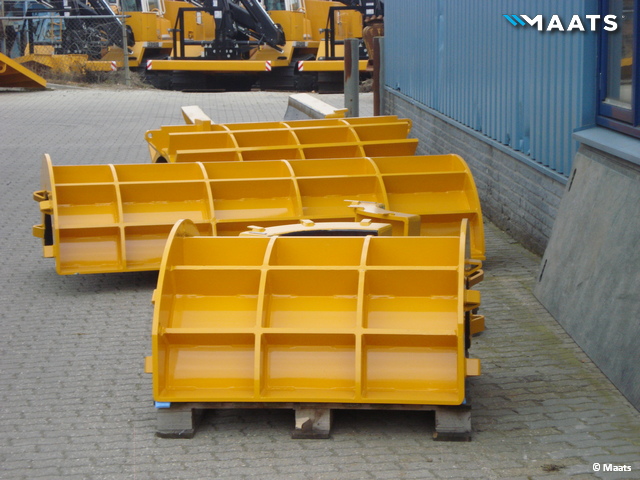

Maats supplies high-quality bending sets for pipeline construction, available for both rental and purchase. For every machine in our range, we offer a compatible bending set that can be installed directly into your bending machine.
Are you looking for a set to match your bending machine? To ensure availability and the correct fit, it is essential that you provide the brand and type of your machine when submitting a request. Contact us to discuss your requirements and find the right solution for your project.

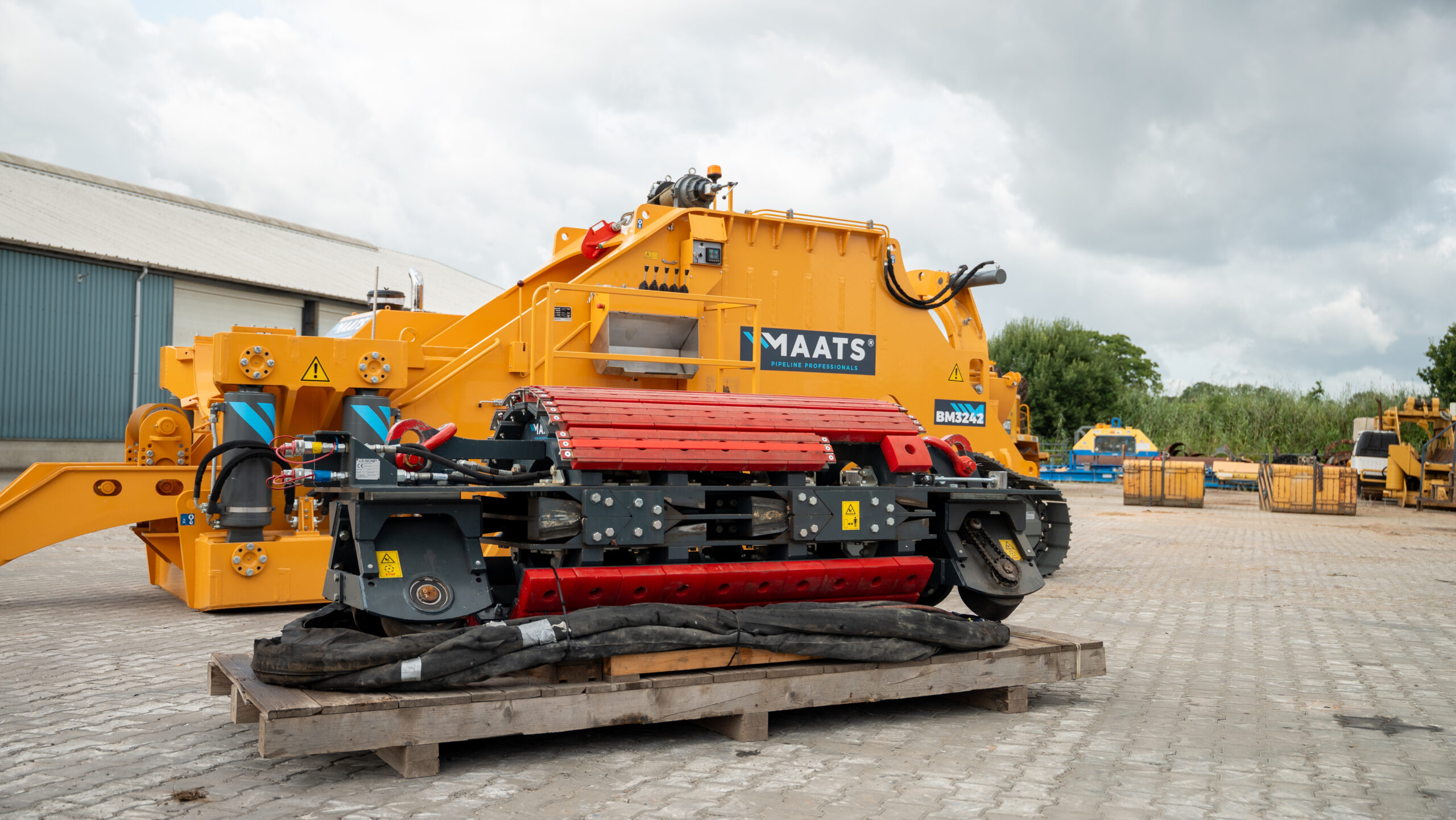

A mandrel is a vital component in the process of bending steel pipes, especially in pipelines with thick walls or large diameters. Its primary function is to support the interior of the pipe during bending, preventing deformation and ensuring that the pipe maintains its round shape and structural integrity.

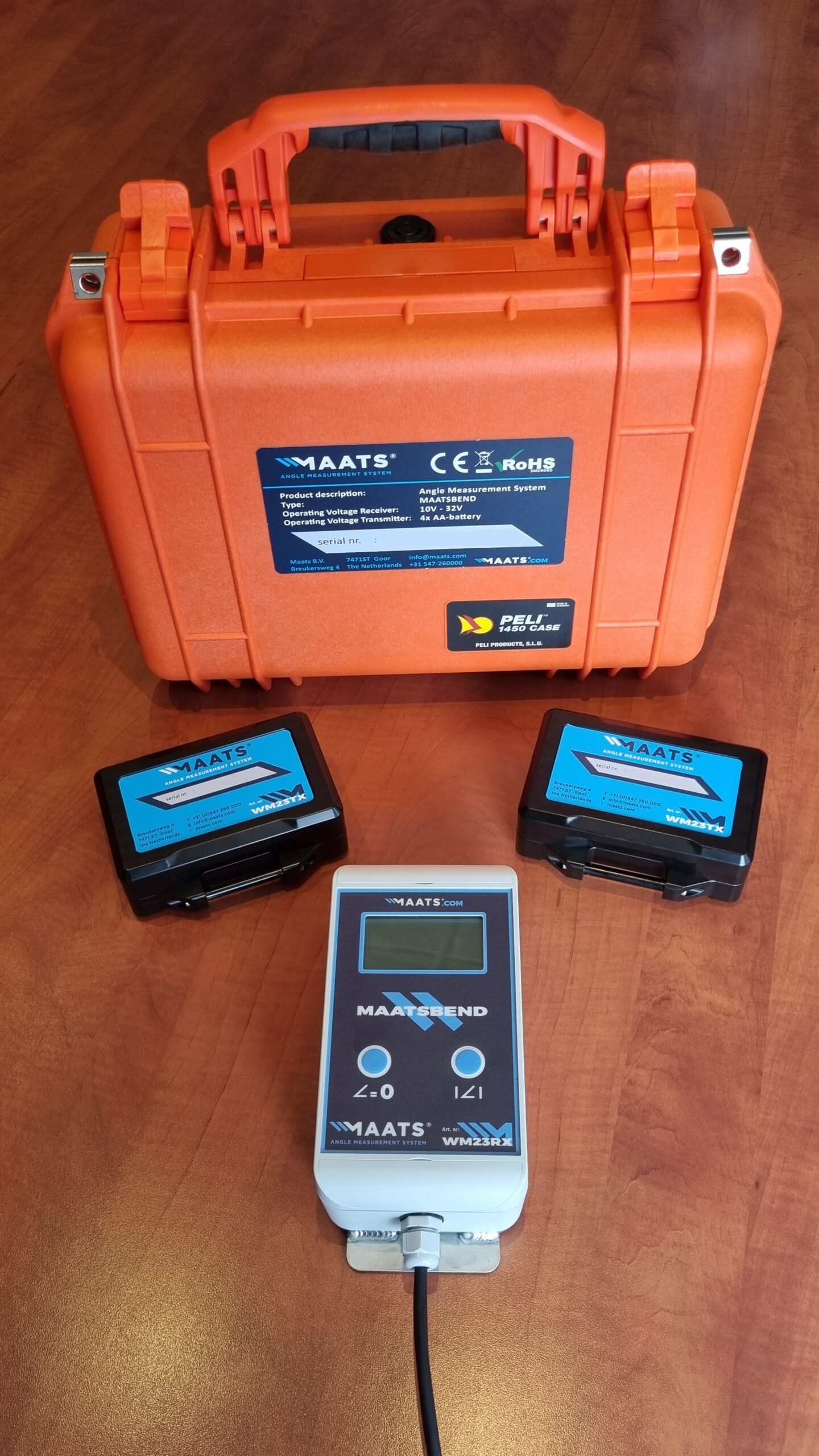

The Maats WM23 is a precise and reliable bending angle measurement system, designed as an essential component in the pipe bending process for pipeline construction. It ensures accurate measurement and control of bending angles during the cold bending of steel pipes, contributing to consistent, high-quality results.
By providing real-time feedback, the WM23 helps operators achieve the required bend with greater precision, reducing the risk of errors and improving overall efficiency on-site. Its robust design makes it suitable for use in demanding field conditions.
The Maats WM23 is available for both rental and sale and can be integrated into your bending setup as part of a complete solution.
Contact us for more information or to check availability for your project.

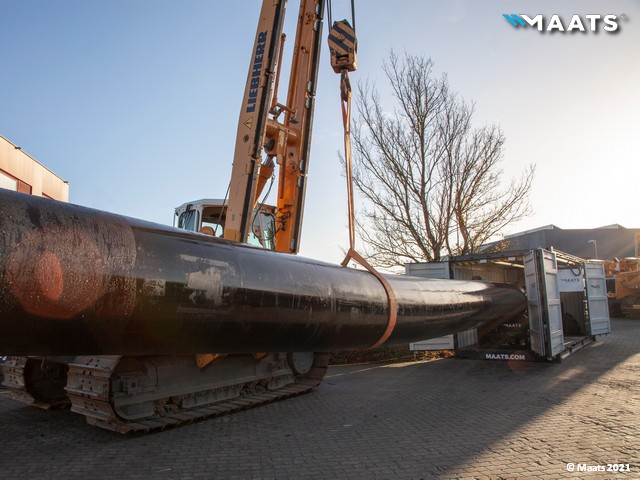

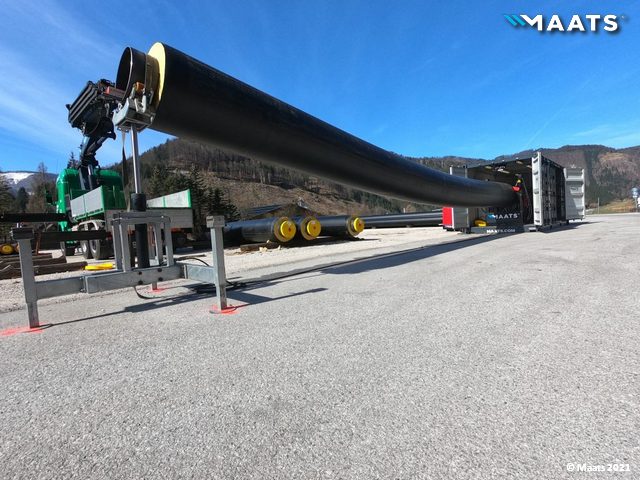

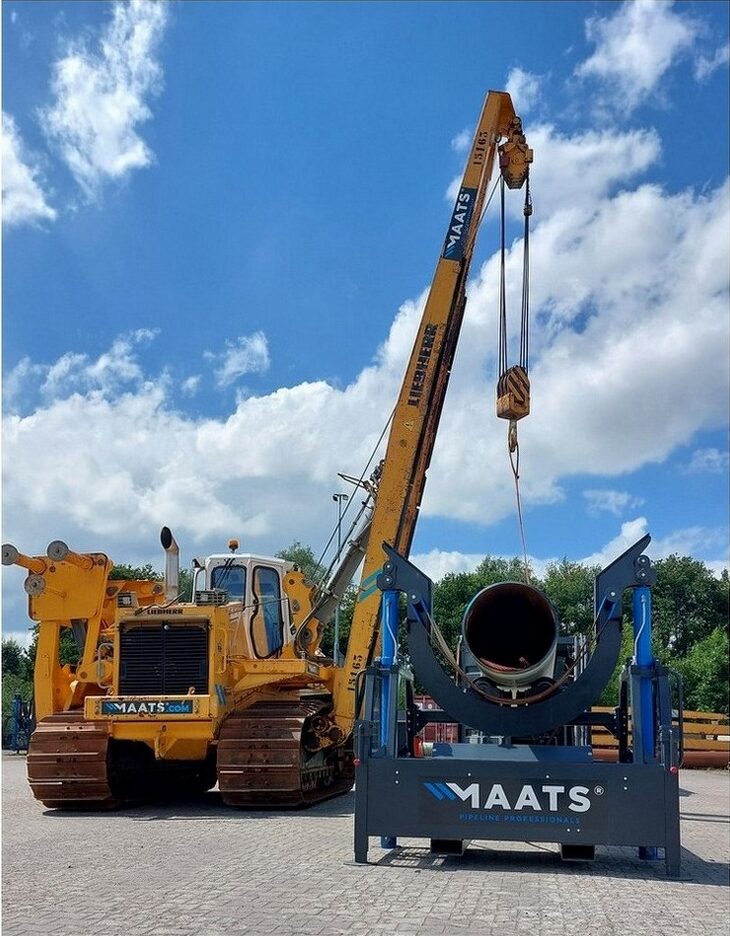

The Maats Internal Bending Machine is the world’s first pipe bending system capable of cold bending steel pipes from the inside. This pioneering technology is ideally suited to pipes with external insulation — such as those used in district heating and cooling networks, heated crude oil pipelines, and other applications where the medium must remain within precisely controlled temperature limits.
The Maats IB18-24 Internal Bending Machine is designed for internal pipe bending operations on pipe diameters ranging from 18″ to 24″. Engineered for precise alignment and controlled internal support during the bending process, the Maats IB18-24 ensures accurate pipe shaping while maintaining internal pipe integrity.
The Maats IB24-28 Internal Bending Machine is designed for internal pipe bending operations on pipe diameters ranging from 24″ to 28″. Engineered for precise alignment and controlled internal support during the bending process, the Maats IB24-28 ensures accurate pipe shaping while maintaining internal pipe integrity.
The Maats IB28-32 Internal Bending Machine is designed for internal pipe bending operations on pipe diameters ranging from 28″ to 32″. Engineered for precise alignment and controlled internal support during the bending process, the Maats IB28-32 ensures accurate pipe shaping while maintaining internal pipe integrity.
A compressor set provides the essential air supply needed to operate internal line-up clamps and mandrels during pipe welding and bending operations. Consistent and reliable air pressure ensures smooth, precise, and safe performance, making the compressor an indispensable support unit for every pipeline construction project.
