MAATS BM32-42

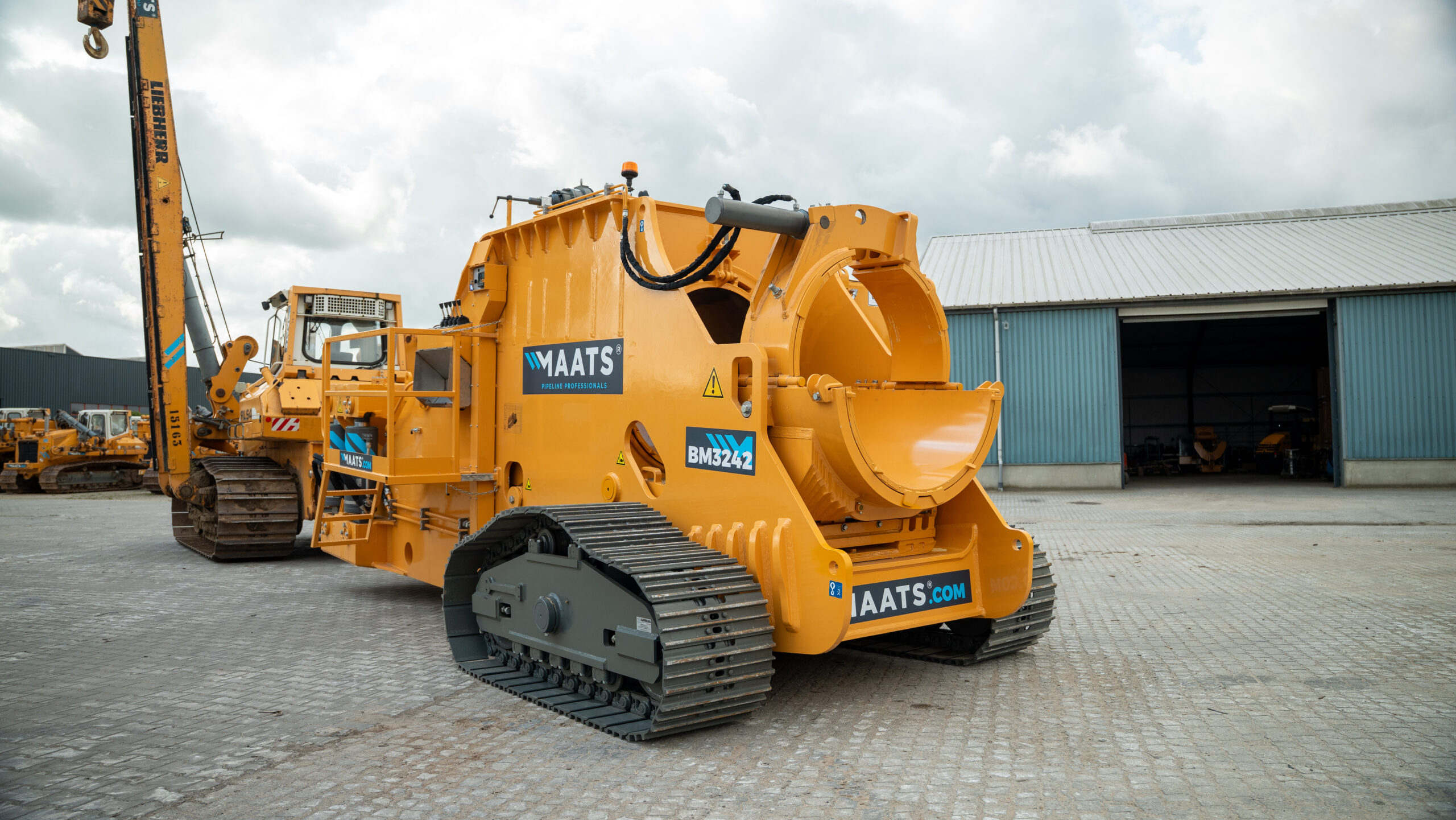

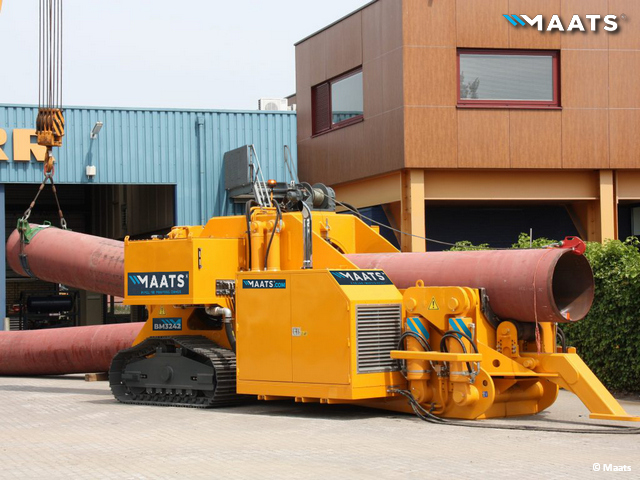

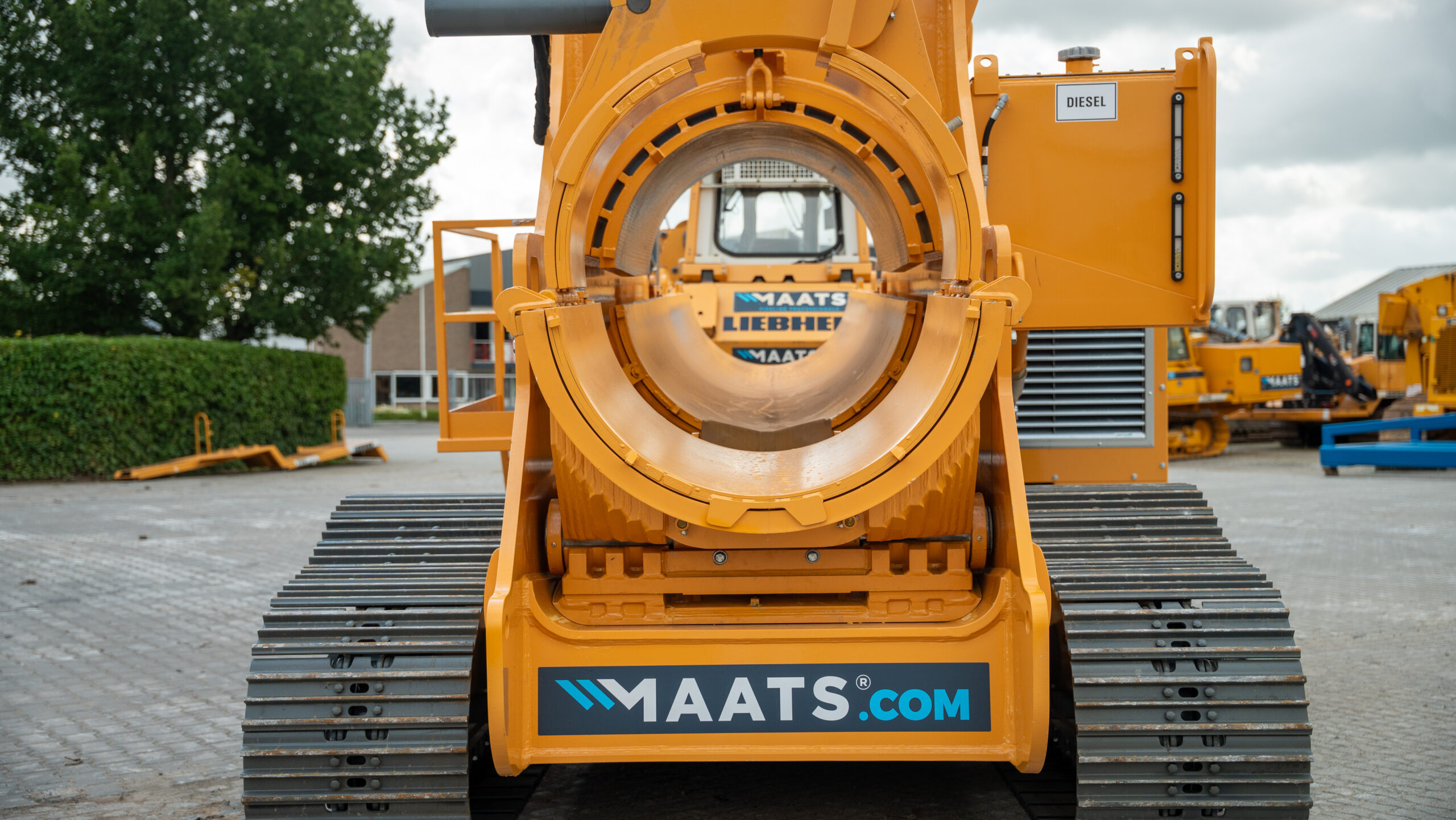

The Maats BM32-42 Pipe Bending Machine combines power, precision, and efficiency for large-diameter pipelines ranging from 32 to 42 inches. Weighing approximately 42.500 kgs and powered by the advanced FPT N45 engine, it ensures reliable, low-emission performance for demanding pipeline construction environments.
Looking for more working range?
Explore the Maats BM36-48
Need more information?
Please contact our sales department, they can and will be happy to help you.Specifications
Specifications
Equipped with a Liebherr Integrated hydraulic system, the MaatsS BM32-42 features a hydraulic PTO for driving a mandrel, ensuring precise control during bending operations. Units within the Maats rental fleet are built on a tracked chassis with 610 mm track pads and include a hydraulically driven winch with a 16 mm × 25 m cable for secure pipe handling throughout the bending process. Optional bending sets and dies are available to suit specific pipe sizes within the 32″ to 42″ working range.
- Working range 32" to 42"
- Engine make & model FPT N45
- Engine output 125 kW
- Exhaust gas after-treatment Yes
- Emission standards EU Stage IV and US EPA Tier 4 F
- Operating weight 42.500 kgs
-
Standard configuration
• Liebherr Integrated hydraulics
• Hydraulic PTO to drive a mandrel
• Tracked chassis
• Track pads 610 mm
• Hydraulic driven winch
• Cable 16 mm x 25 meters -
Optional Equipment
• Bending sets
• Dies
Frequently Asked Questions
FrequentlyAsked Questions
Maats does not stop performing when the equipment is delivered to the customer. We offer operator training for daily maintenance and first trouble shooting, commissioning and de-commissioning, preventive maintenance, spare parts availability and technical support during projects, both on site and remote by our technical team. Also; the vast Liebherr service network is globally present. Please contact us for proper assistance.
Maats' servicesMaats provides a vast fleet with a wide range of equipment including pipelayers, bending machines, pipe carriers, welding equipment – complete with related equipment such as mandrels, internal line-up clamps, roller cradles and more. Please visit our Equipment page for the full delivery program and specifications or contact our Rental and Sales team.
Go to Equipment pageYes; we offer both short-term and long-term rental options to suit your project timeline and budget. Our team can assist in customizing a rental agreement that will best fit your specific project requirements.
Read moreIndeed. All our equipment is inspected, certified when applicable and maintained according to industry standards to ensure safety, reliability and peak performance. We have our own workshops in Goor, the Netherlands and in Batam, Indonesia. Safety is priority at Maats and Liebherr, which is why all pipe layers, bending machines and welding tractors are based in a well-thought-out safety concept that sets standards in pipeline construction.
Yes. We provide e.g. eco-friendly drives, low-emission units, and circular material solutions whenever possible. All movements and deployment of our equipment as well as from our complete team are fully compensated.
Read moreYes. We can assist our customers in handling their transportation and shipping, customs, and documentation, ensuring machines are ready for worldwide projects. Our equipment can comply with ISO, CE, API, and project-specific local regulations when communicated timely. (Any approvals such as Dosh, UDT, etc. are arranged by our customers).
