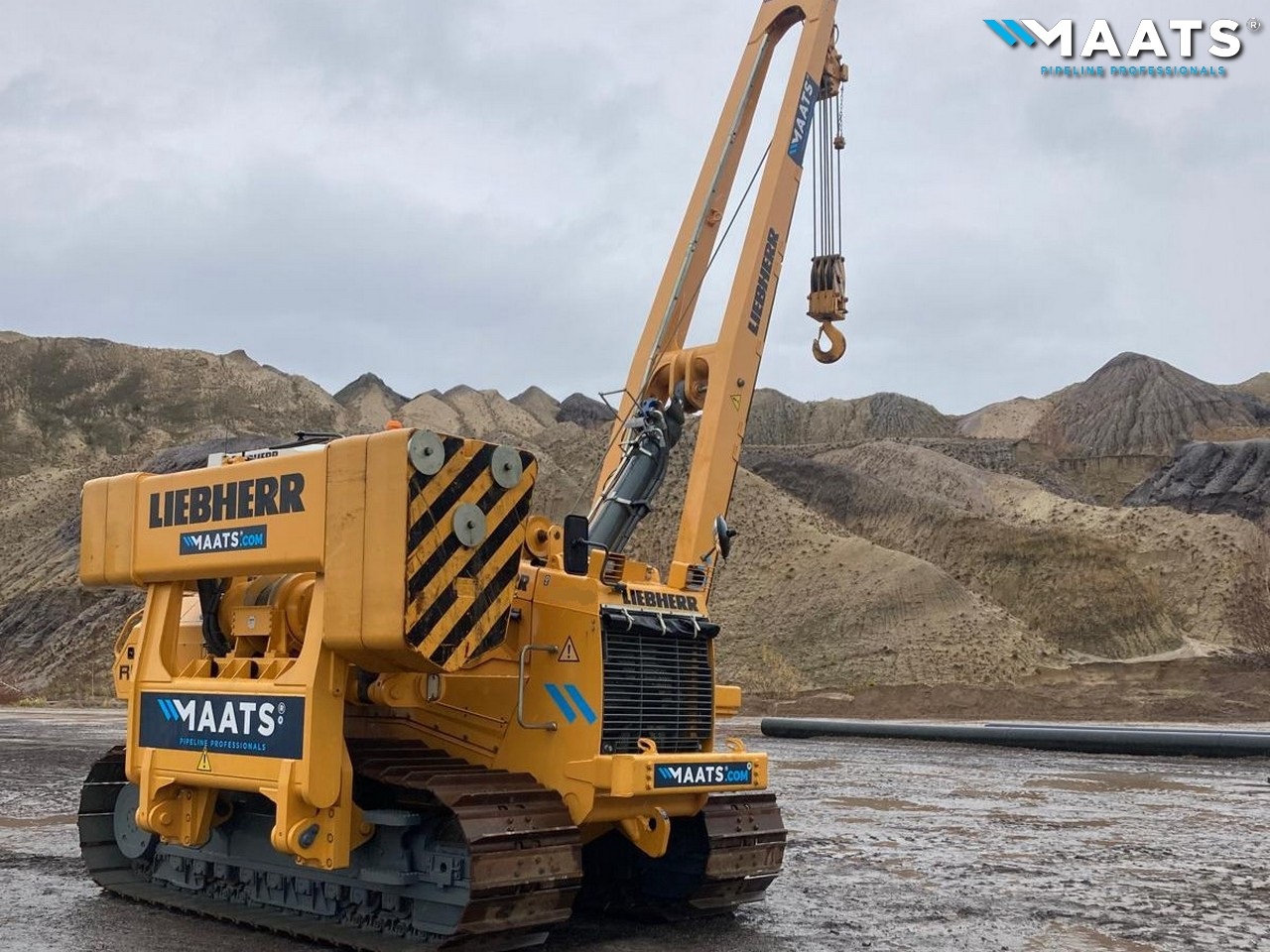

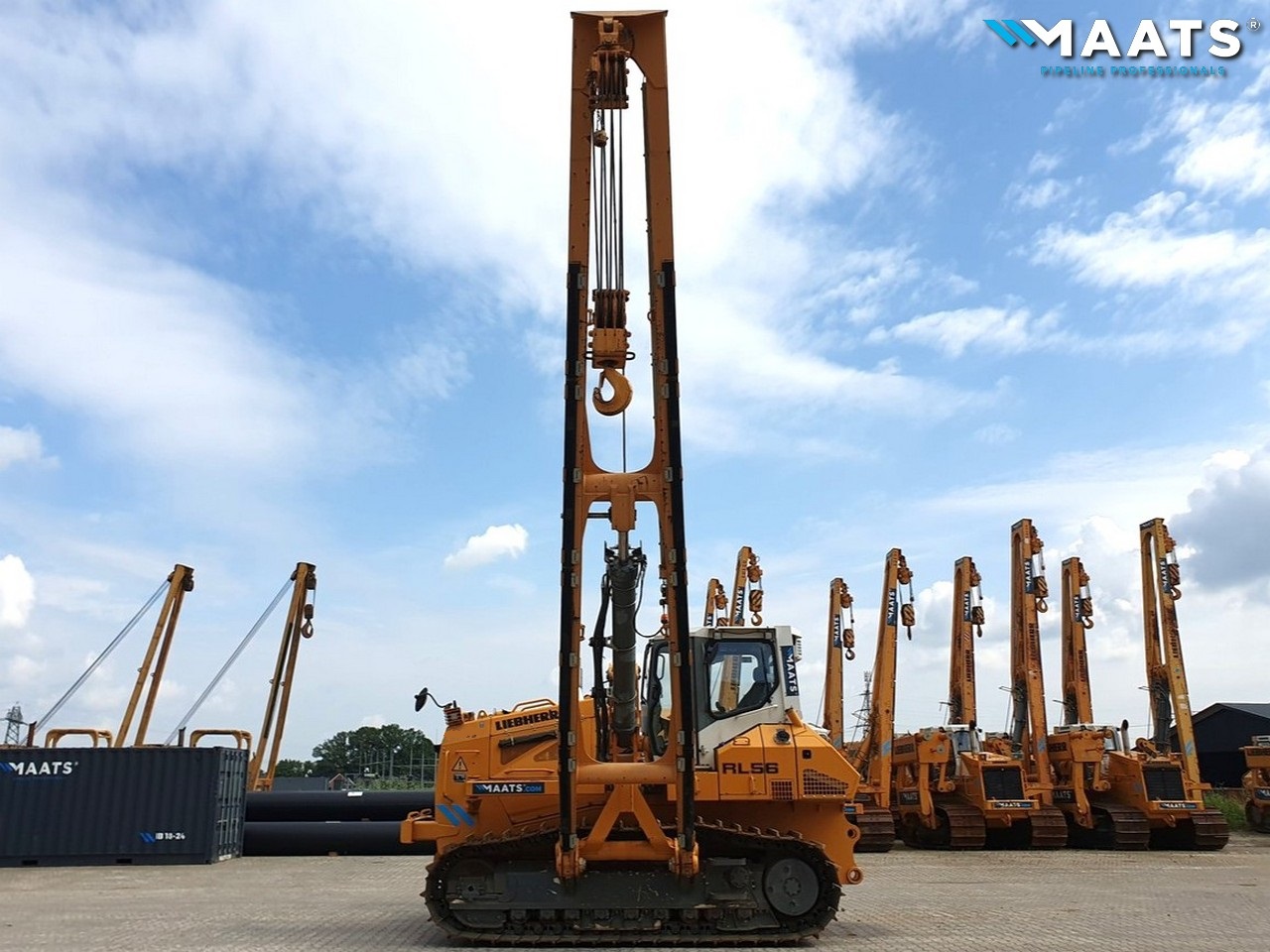

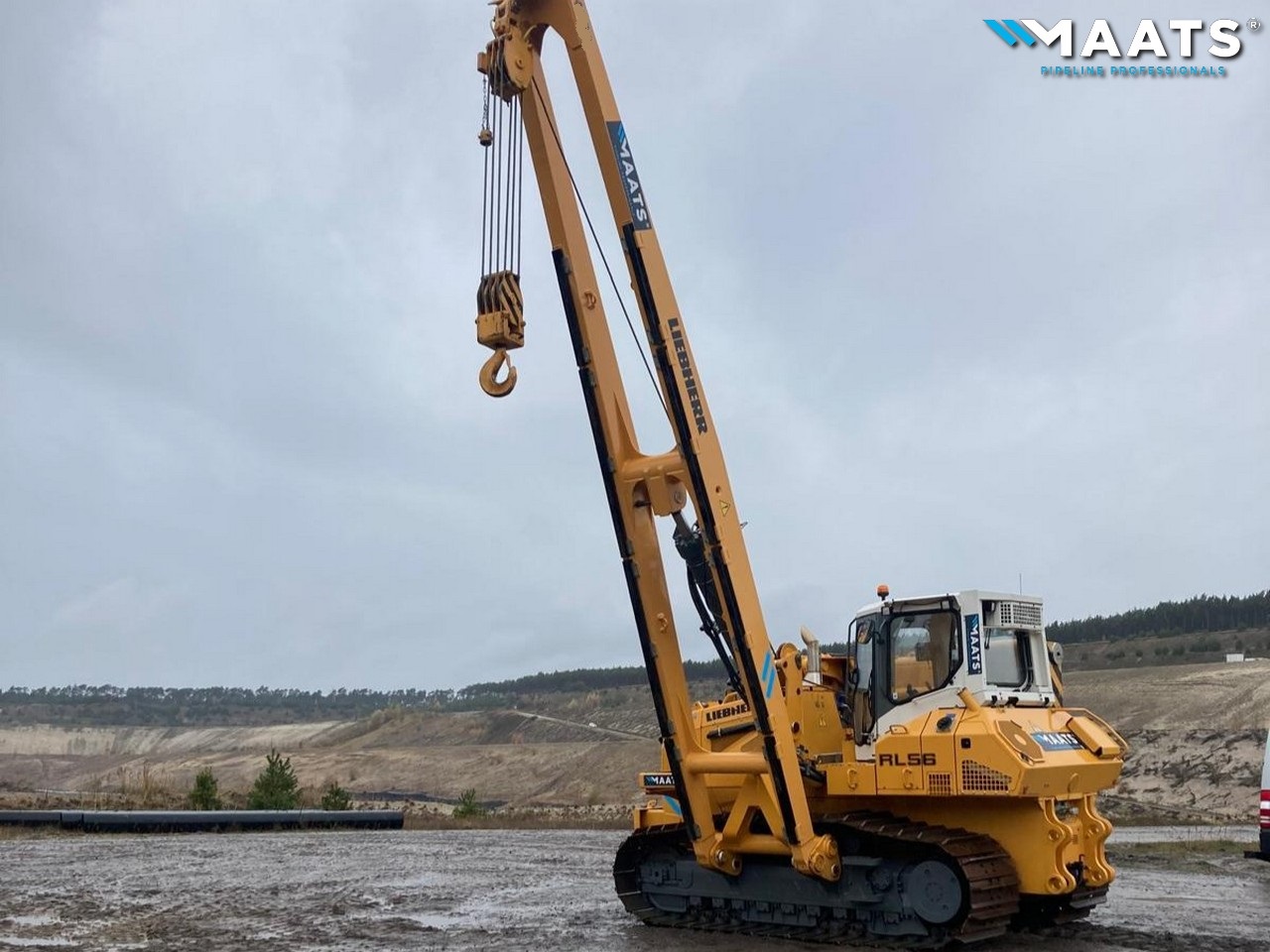

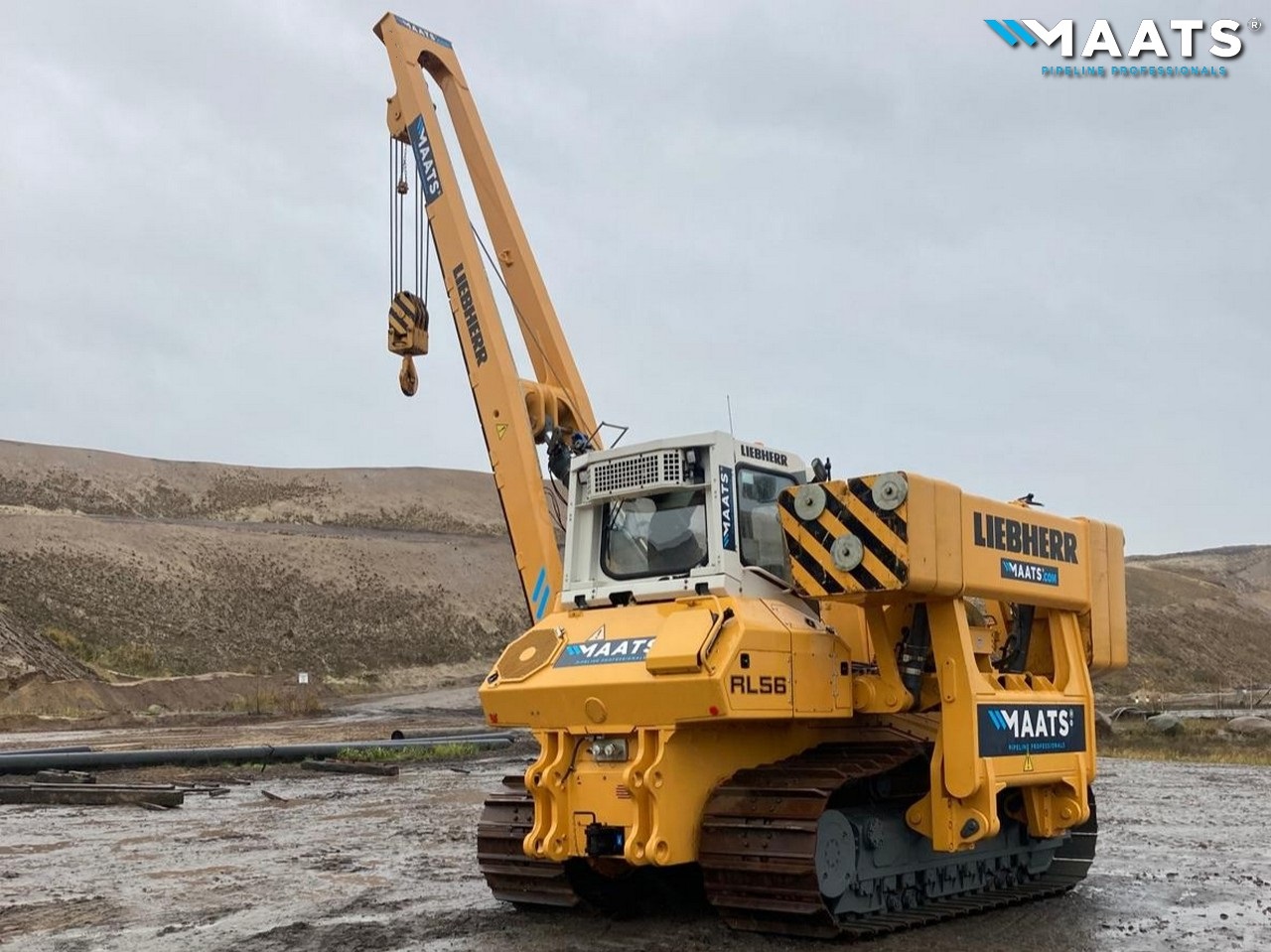

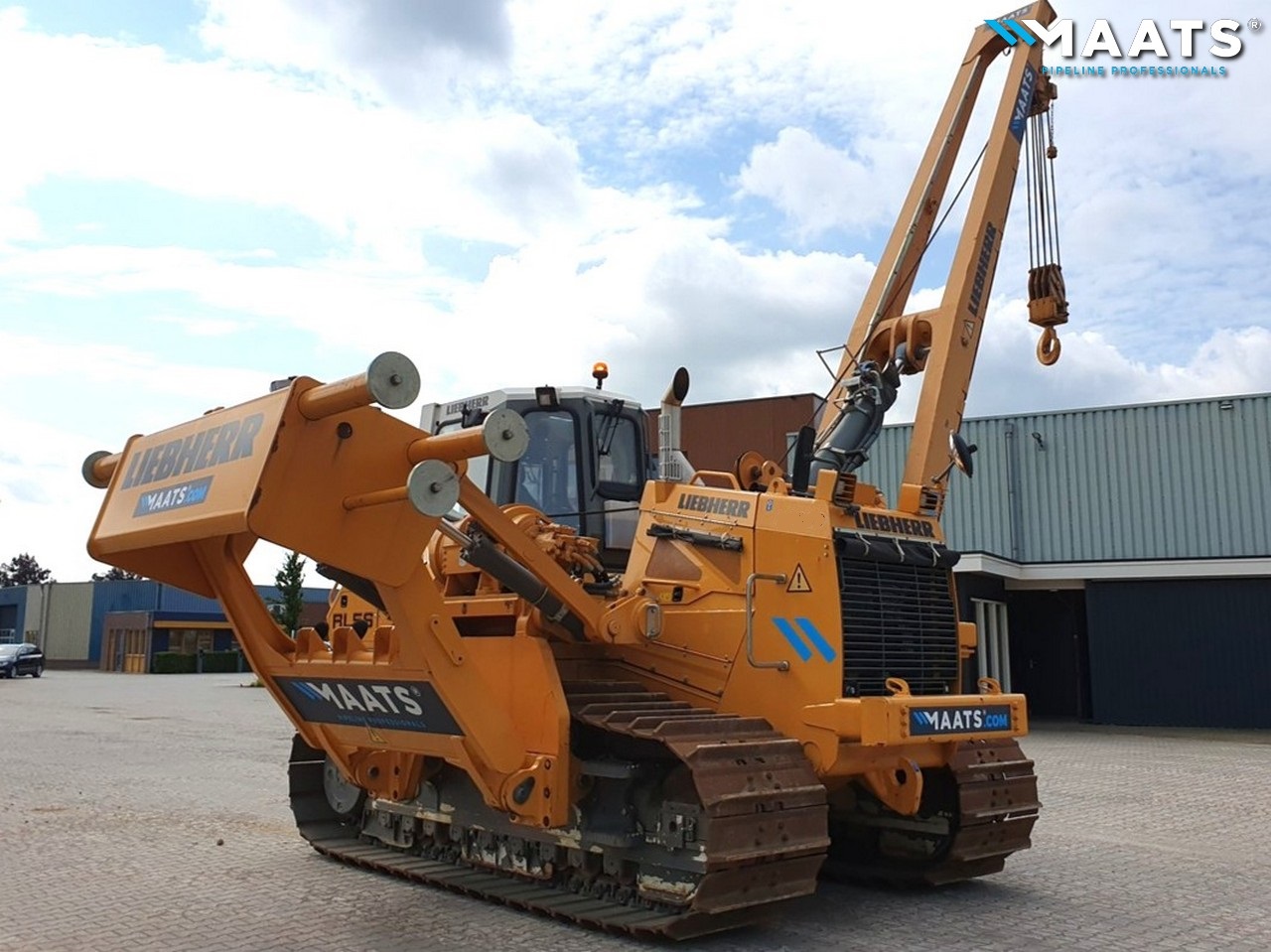

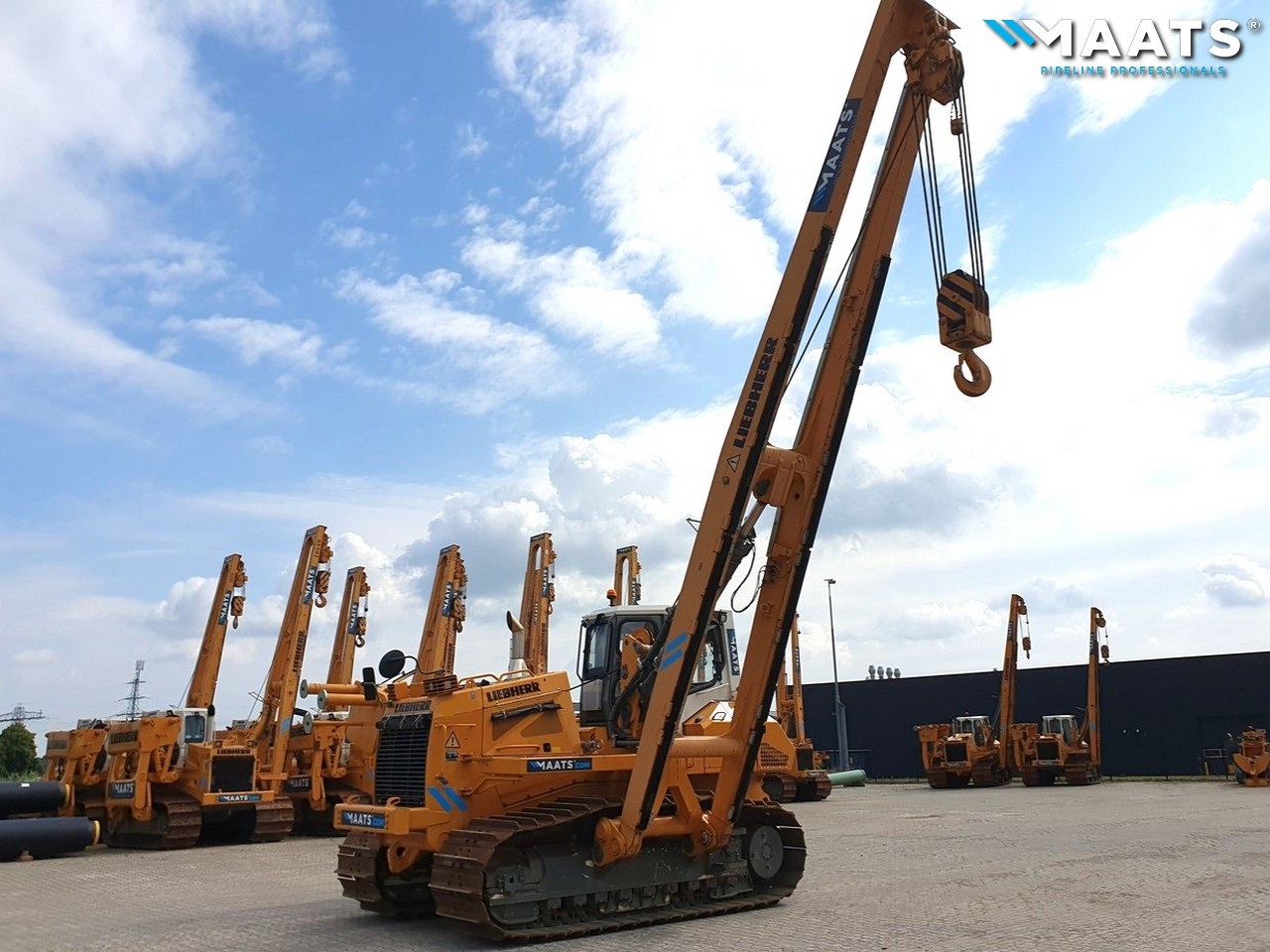

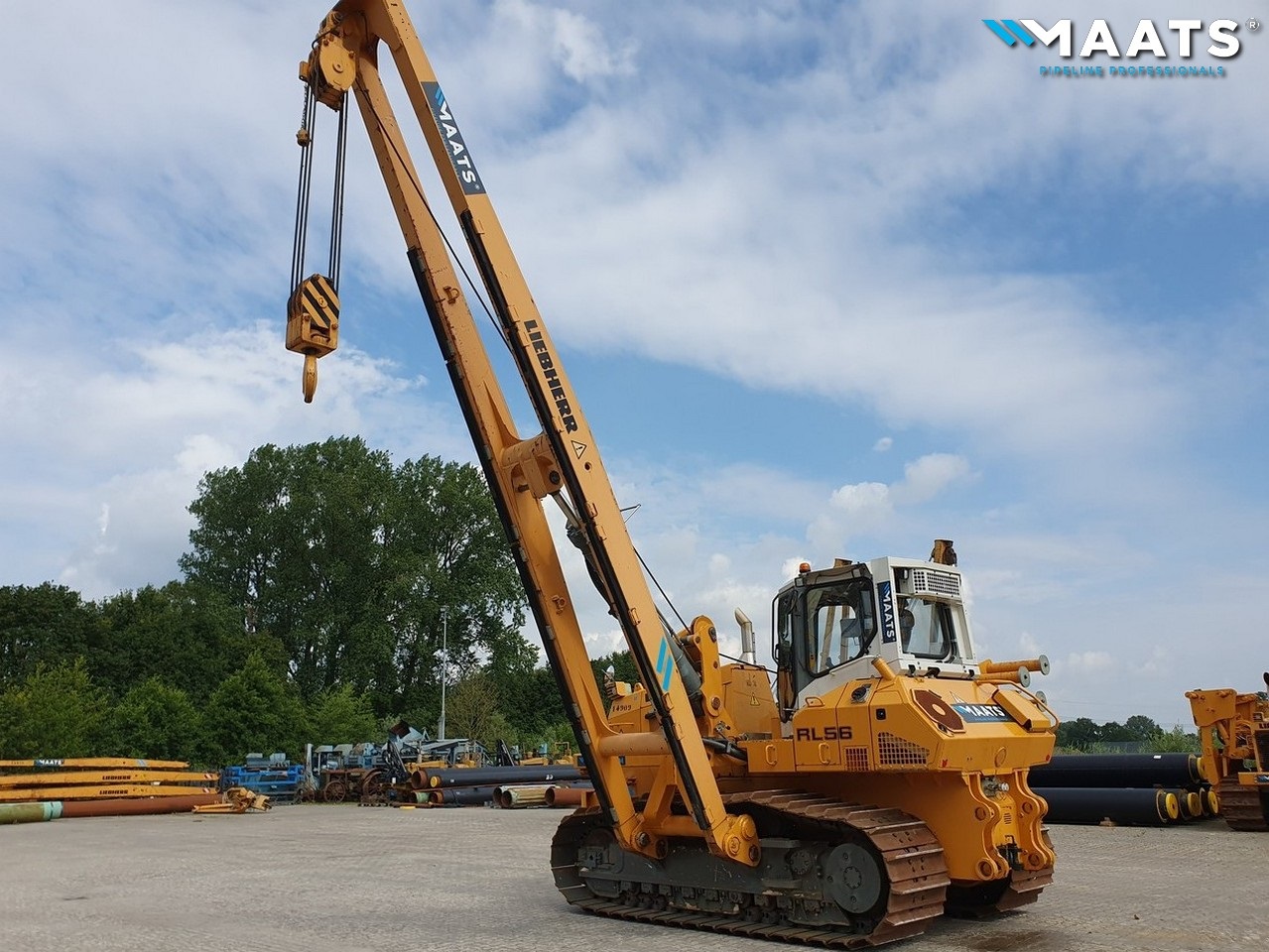

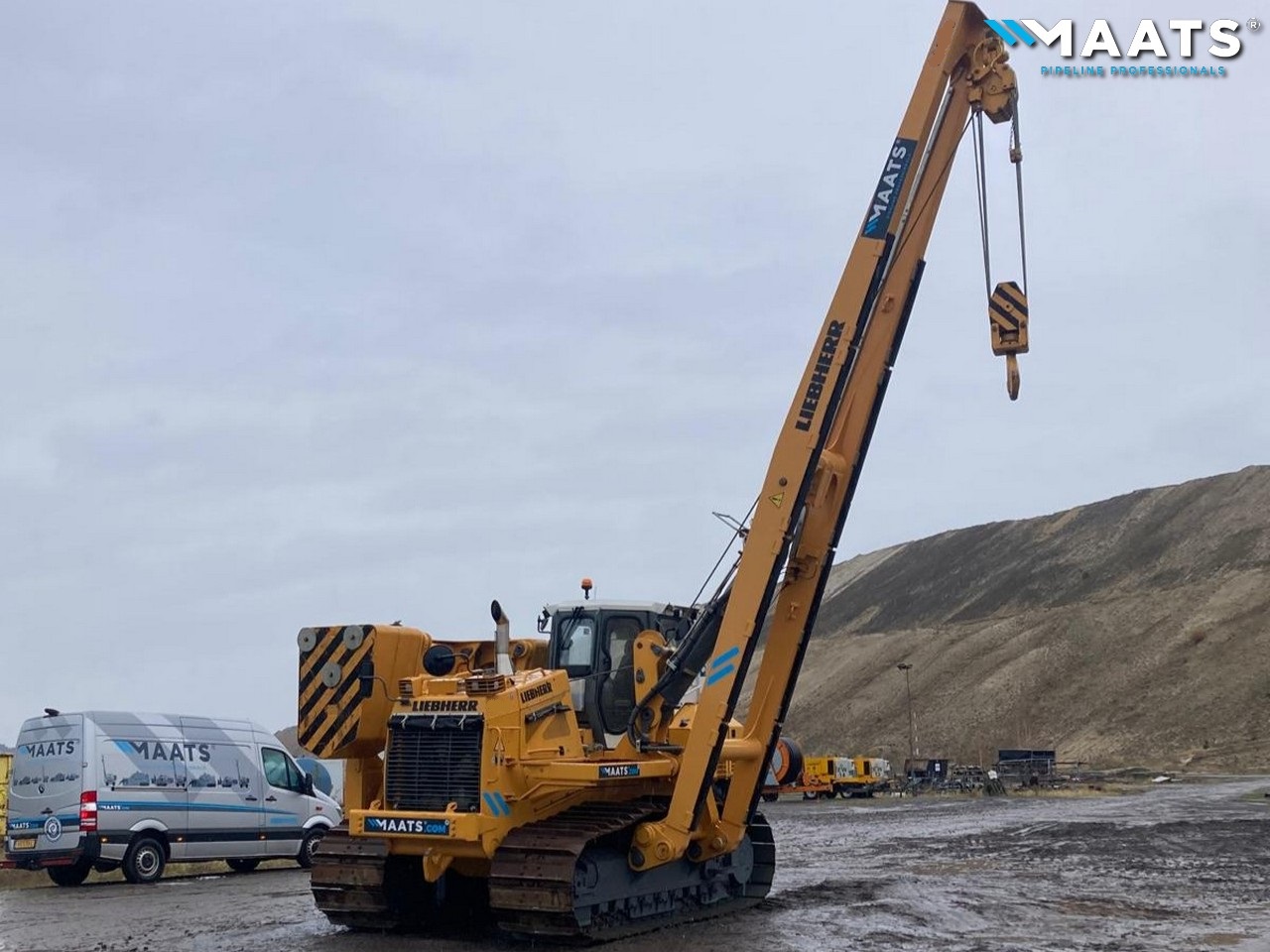

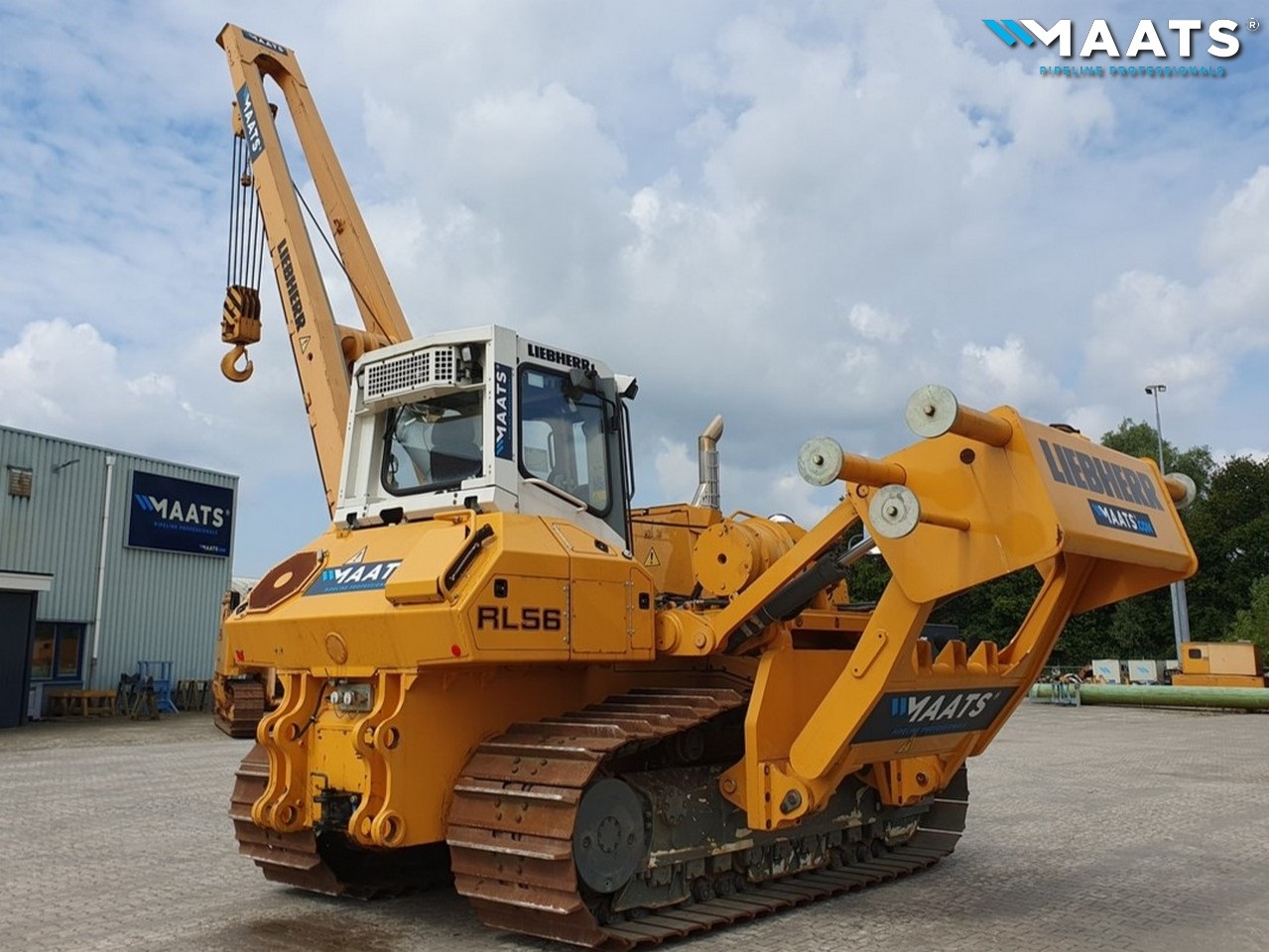

LIEBHERR RL56 Litronic
The Liebherr RL56 Litronic Sideboom Pipelayer offers a lifting capacity of 72.000 kgs and has an operating weight of approximately 46.280 kgs. It is powered by the Liebherr D936 A7 engine delivering 210 kW, compliant with EU Stage IV and US EPA Tier 4 Final emission standards, featuring exhaust gas after-treatment technology for reduced emissions and improved fuel efficiency.
Looking for more lifting capacity?
Explore the Liebherr RL64 Litronic
Need more information?
Please contact our sales department, they can and will be happy to help you.Specifications
Specifications
Designed for high-performance pipeline handling, the Liebherr RL56 Litronic combines powerful lifting capability with precise control. The hydrostatic drive enables smooth, stepless manoeuvring under heavy load, while the 8.500 mm boom with protective strips, hydraulic winch with free-fall control, and load monitoring system ensure accurate and safe lifting dynamics. Units within the Maats rental fleet are equipped with a ROPS cab featuring heating and air conditioning, 914 mm track pads, a centre track guide, acoustic back-up alarm, and four removable counterweights, ensuring stability and operator comfort. With an integrated hydraulic PTO, arctic kit, and drawbar included as standard, the Liebherr RL56 Litronic is configured for demanding pipeline projects in both standard and extreme climatic conditions.
- Operating weight 46,280 kgs
- Lifting capacity 72.000 kgs
- Type of boom Removable fixed length boom
- Length of boom 8.500 mm
- Width trackpads 914 mm
- Engine make & model Liebherr D936 A7
- Engine output 210 kW
- Exhaust gas after-treatment Yes
- Emission standards EU Stage IV & US EPA Tier 4 F
- Certification CE
-
Standard configuration
• ROPS cab with heating
• Air conditioning
• Centre track guide
• Acoustic back-up alarm

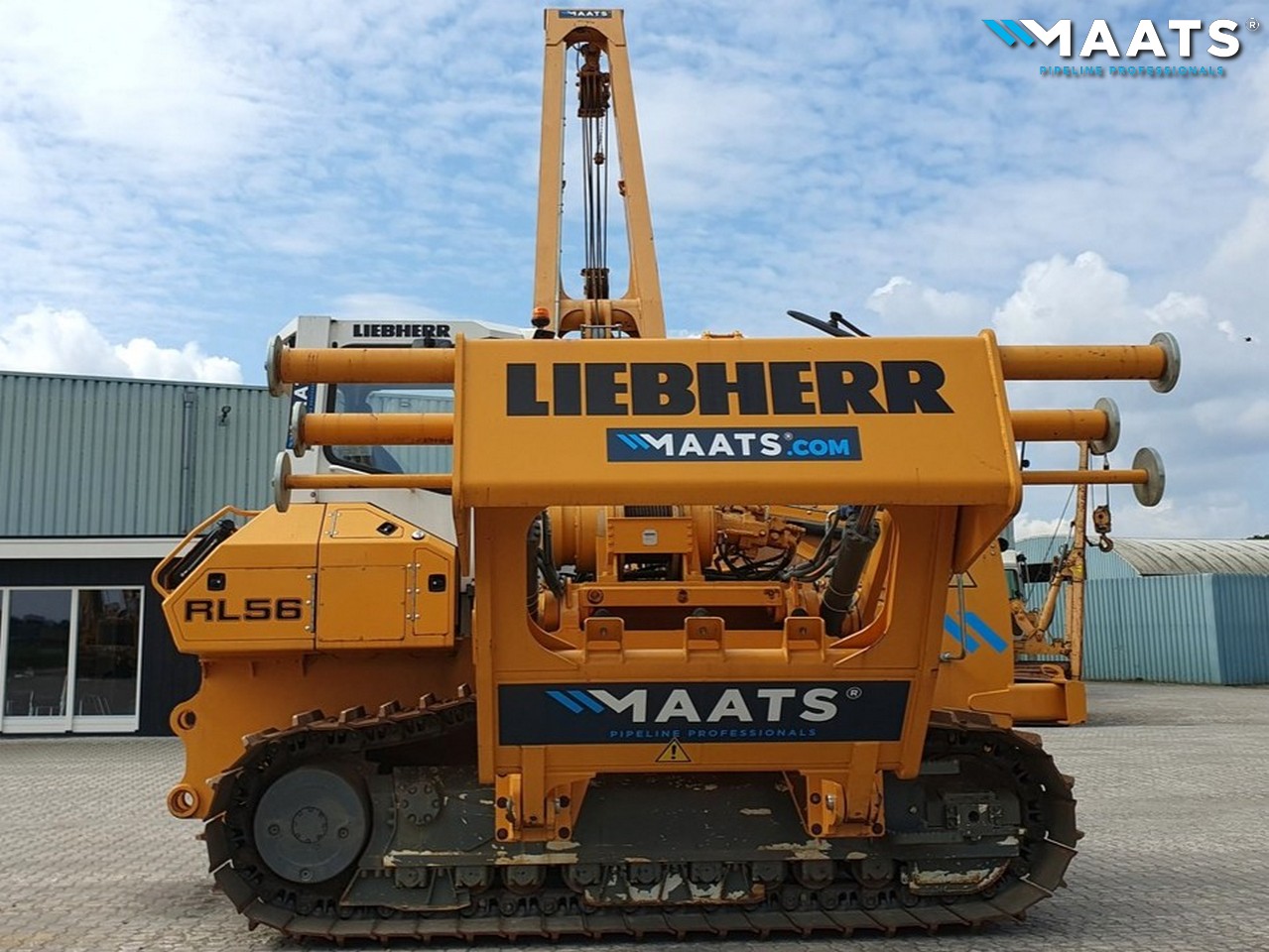

• Four (04) removable counterweights
• Hydraulic driven winch
• Free fall control
• Load monitoring system
• Hydraulic PTO to drive a mandrel or a pipefacing machine
• Arctic kit (-40 degrees)
• Drawbar
Frequently Asked Questions
FrequentlyAsked Questions
Maats does not stop performing when the equipment is delivered to the customer. We offer operator training for daily maintenance and first trouble shooting, commissioning and de-commissioning, preventive maintenance, spare parts availability and technical support during projects, both on site and remote by our technical team. Also; the vast Liebherr service network is globally present. Please contact us for proper assistance.

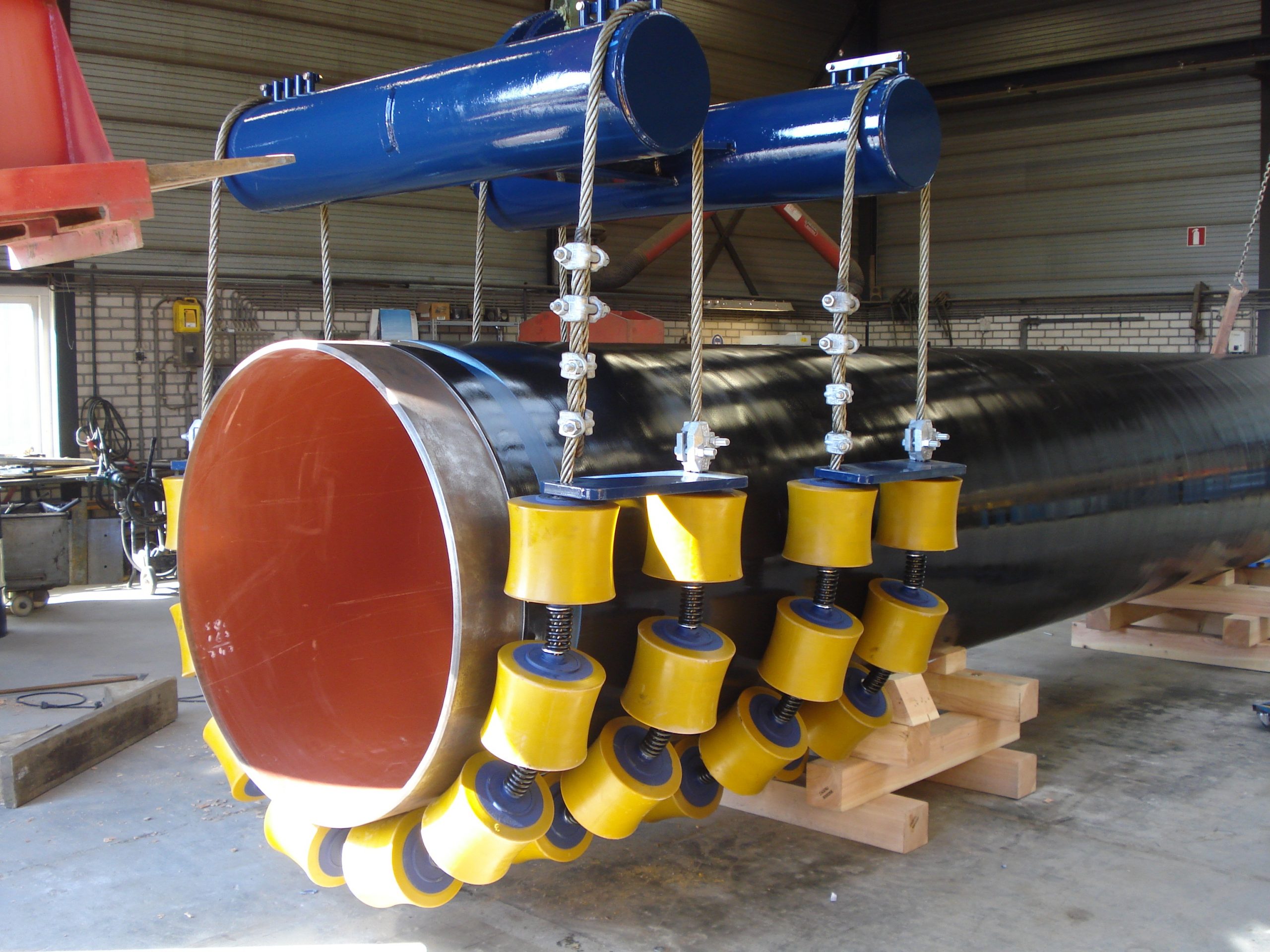

Maats' servicesMaats provides a vast fleet with a wide range of equipment including pipelayers, bending machines, pipe carriers, welding equipment – complete with related equipment such as mandrels, internal line-up clamps, roller cradles and more. Please visit our Equipment page for the full delivery program and specifications or contact our Rental and Sales team.
Go to Equipment pageYes; we offer both short-term and long-term rental options to suit your project timeline and budget. Our team can assist in customizing a rental agreement that will best fit your specific project requirements.
Read moreIndeed. All our equipment is inspected, certified when applicable and maintained according to industry standards to ensure safety, reliability and peak performance. We have our own workshops in Goor, the Netherlands and in Batam, Indonesia. Safety is priority at Maats and Liebherr, which is why all pipe layers, bending machines and welding tractors are based in a well-thought-out safety concept that sets standards in pipeline construction.
Yes. We provide e.g. eco-friendly drives, low-emission units, and circular material solutions whenever possible. All movements and deployment of our equipment as well as from our complete team are fully compensated.
Read moreYes. We can assist our customers in handling their transportation and shipping, customs, and documentation, ensuring machines are ready for worldwide projects. Our equipment can comply with ISO, CE, API, and project-specific local regulations when communicated timely. (Any approvals such as Dosh, UDT, etc. are arranged by our customers).
