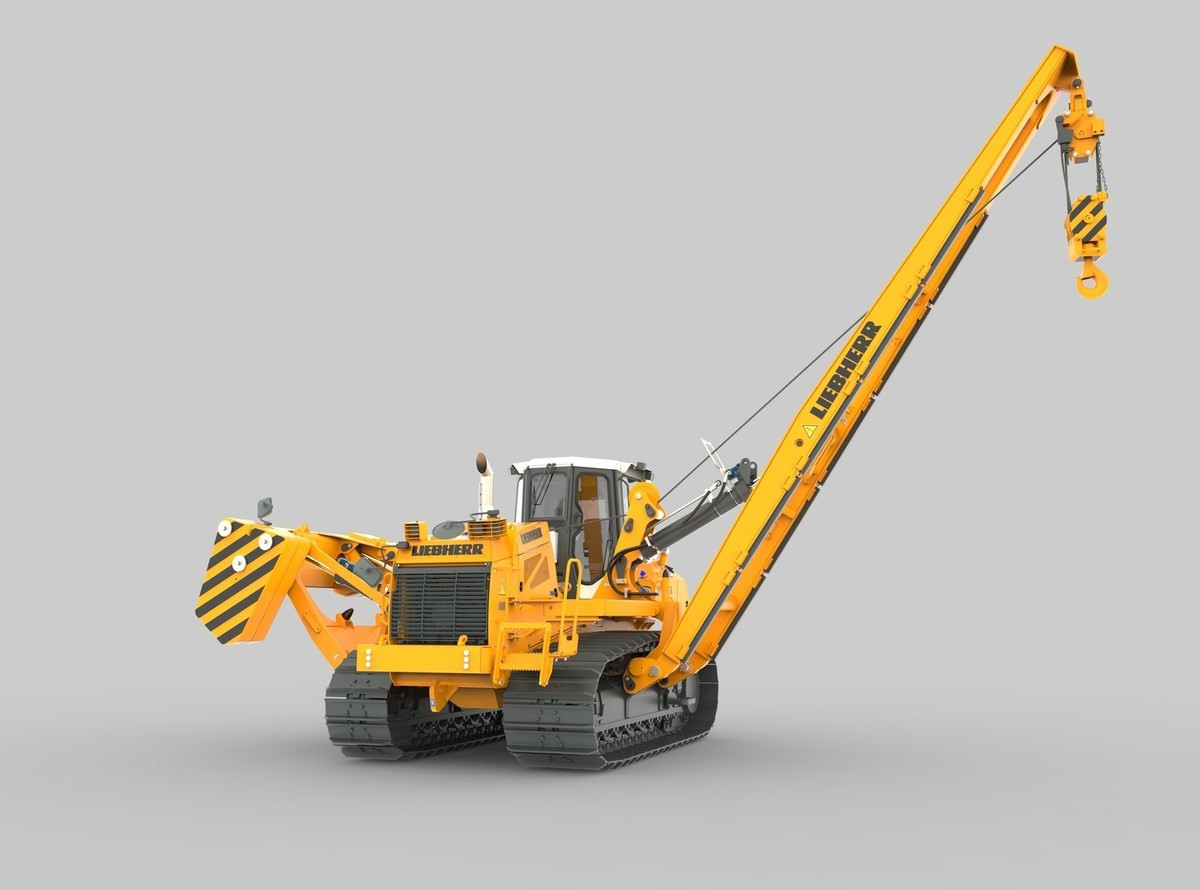

LIEBHERR RL46 Litronic
Designed for modern pipeline construction, the Liebherr RL46 Litronic combines compact dimensions with dependable lifting performance. The stepless hydrostatic drive enables precise manoeuvring, even under full load and across uneven terrain, while Liebherr’s dedicated boom system, free-fall control, and hydraulic winch ensure accurate handling and consistent lifting dynamics.
Looking for more lifting capacity?
Explore the Liebherr RL54 Litronic
Need more information?
Please contact our sales department, they can and will be happy to help you.Specifications
Specifications
The Liebherr RL46 Litronic Sideboom Pipelayer combines exceptional lifting capability with modern engine efficiency, delivering a capacity of 46.700 kgs and an operating weight of approximately 35.100 kgs. Powered by the high-performance Liebherr D934 A7 engine, it utilises advanced exhaust gas after-treatment technology to deliver cleaner, more efficient operation on demanding pipeline projects worldwide.
- Operating weight 35.100 kgs
- Lifting capacity 46.700 kgs
- Type of boom Removable fixed length boom
- Length of boom 7.300 mm
- Width trackpads 711 mm
- Engine make & model Liebherr D934 A7
- Engine output 175 kW
- Exhaust gas after-treatment Yes
- Emission standards EU Stage IV & US EPA Tier4 F
- Certification CE
-
Standard configuration
• ROPS cab with heating
• Air conditioning
• Free fall control
• Acoustic back-up alarm
• Removable counterweights
• Hydraulic driven winch
• Rear tow hitch
• Hook block -
Optional equipment
• Centre track guide
Track pads 914 mm
Boom 7.300 mm
Boom protection strips
Arctic kit (-40 degrees)
Load monitoring system

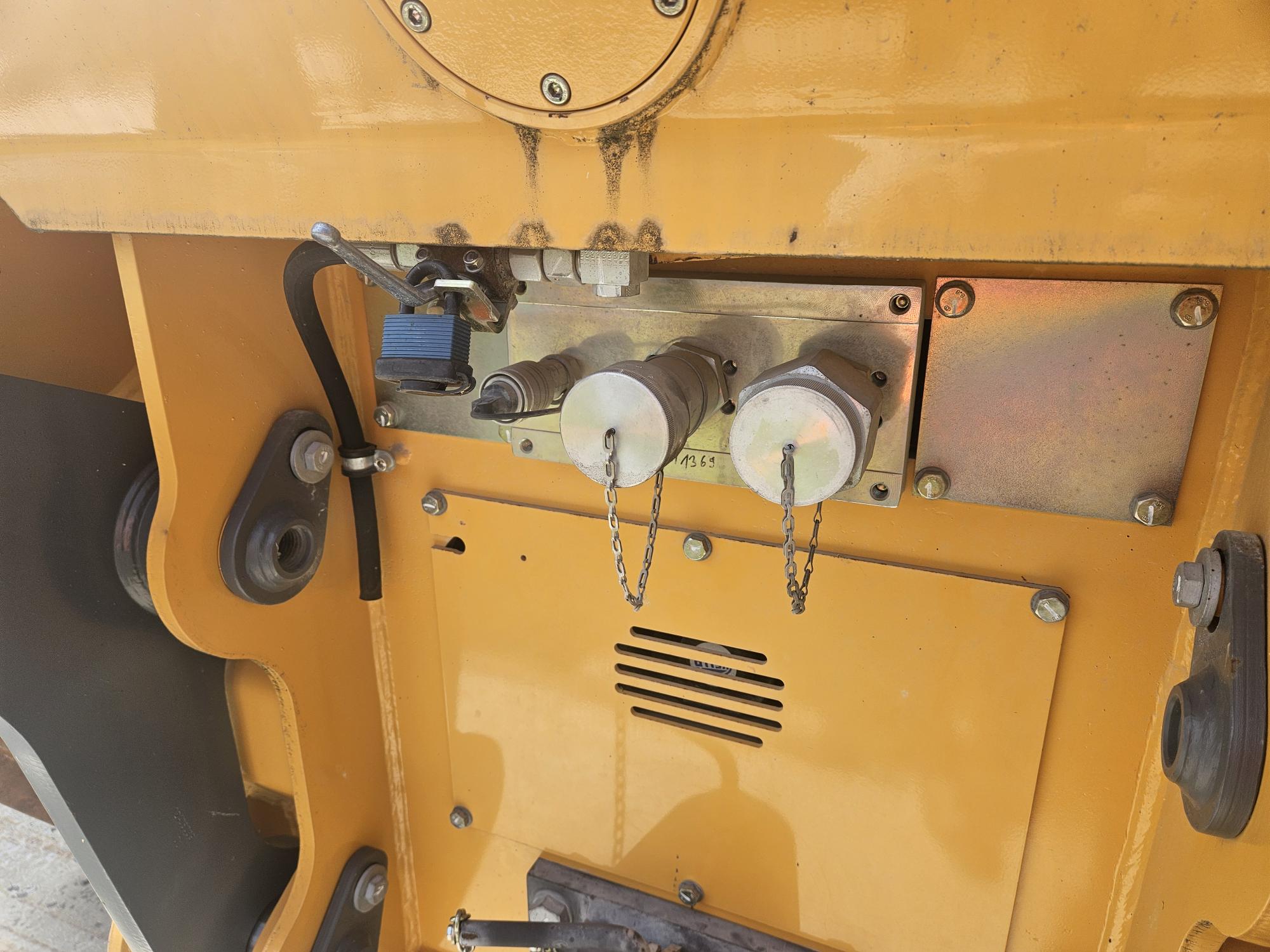

Hydraulic PTO to drive a mandrel or a pipefacing machine
Frequently Asked Questions
FrequentlyAsked Questions
Maats does not stop performing when the equipment is delivered to the customer. We offer operator training for daily maintenance and first trouble shooting, commissioning and de-commissioning, preventive maintenance, spare parts availability and technical support during projects, both on site and remote by our technical team. Also; the vast Liebherr service network is globally present. Please contact us for proper assistance.
Maats' servicesMaats provides a vast fleet with a wide range of equipment including pipelayers, bending machines, pipe carriers, welding equipment – complete with related equipment such as mandrels, internal line-up clamps, roller cradles and more. Please visit our Equipment page for the full delivery program and specifications or contact our Rental and Sales team.
Go to Equipment pageYes; we offer both short-term and long-term rental options to suit your project timeline and budget. Our team can assist in customizing a rental agreement that will best fit your specific project requirements.
Read moreIndeed. All our equipment is inspected, certified when applicable and maintained according to industry standards to ensure safety, reliability and peak performance. We have our own workshops in Goor, the Netherlands and in Batam, Indonesia. Safety is priority at Maats and Liebherr, which is why all pipe layers, bending machines and welding tractors are based in a well-thought-out safety concept that sets standards in pipeline construction.
Yes. We provide e.g. eco-friendly drives, low-emission units, and circular material solutions whenever possible. All movements and deployment of our equipment as well as from our complete team are fully compensated.
Read moreDesigned for modern pipeline construction, the Liebherr RL46 Litronic combines compact dimensions with dependable lifting performance. The stepless hydrostatic drive enables precise manoeuvring, even under full load and across uneven terrain, while Liebherr’s dedicated boom system, free-fall control, and hydraulic winch ensure accurate handling and consistent lifting dynamics.
