MAATS RL26 Litronic

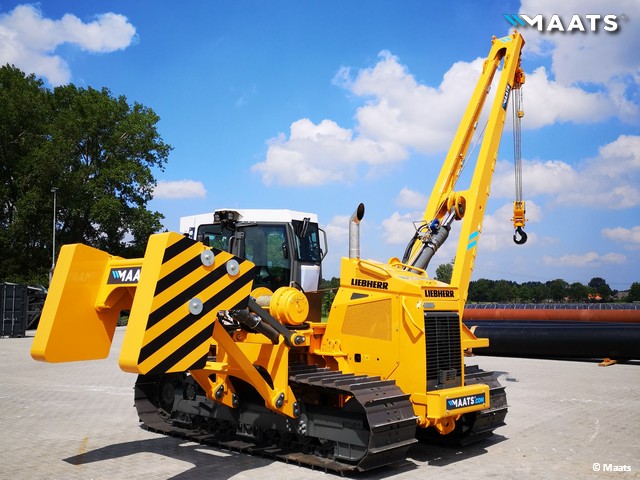

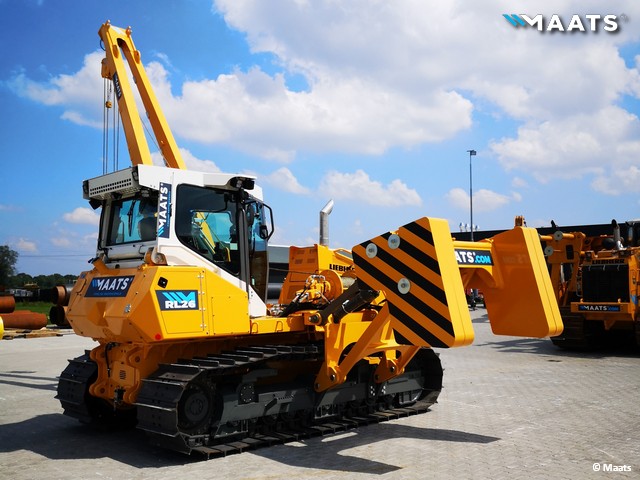

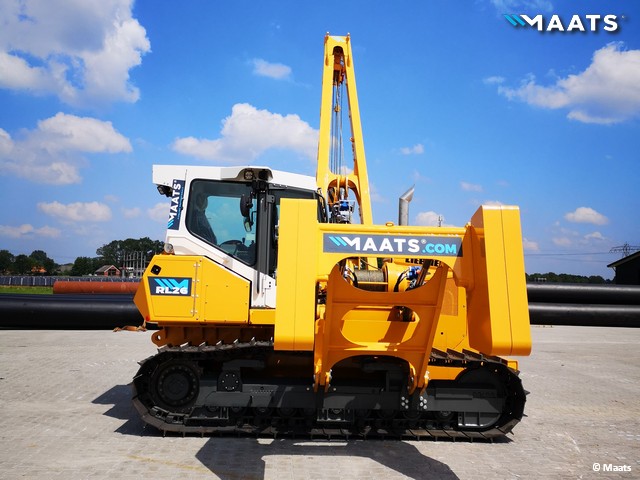

The Maats RL26 Litronic Sideboom Pipelayer combines lifting strength and efficiency, offering a lifting capacity of 27.500 kgs and an operating weight of around 23.300 kgs. Powered by the advanced Liebherr D942 A7 engine rated at 107 kW, it incorporates state-of-the-art exhaust gas after-treatment technology, ensuring powerful yet environmentally responsible performance.

Manufacturer: MAATS

Model: RL26 Litronic

Lifting capacity: 27.500 kgs

Operating weight: 23.300 kgs

Engine: Liebherr D942 A7

Request information

Download leaflet

Looking for more lifting capacity?

Explore the Liebherr RL44 Litronic

LIEBHERR RL44 Litronic Lifting capacity: 45.900 kgs

Need more information?

Please contact our sales department, they can and will be happy to help you.

+31 (0)547 260 000

info@maats.com

Specifications

Built for versatility in pipeline applications, the Maats RL26 Litronic combines compact dimensions with robust lifting performance. The hydrostatic travel drive enables precise manoeuvring, even under load and on uneven terrain. Equipped with a 7.000 mm boom, free-fall control, and a hydraulically driven winch, the machine ensures accurate handling and consistent lifting dynamics. The standard ROPS cab, fitted with heating and air conditioning, provides dependable operator comfort across a range of climates, while removable counterweights and a rear tow hitch offer enhanced flexibility on site.

Operating weight 23.300 kgs
Lifting capacity 27.500 kgs
Type of boom Removable fixed length boom
Length of boom 7.320 mm
Width trackpads 762 mm
Engine make & model Liebherr D942 A7
Engine output 107 kW
Exhaust gas after-treatment Yes
Emission standards EU Stage IV & US EPA Tier 4 F
Certification CE
Standard configuration
Optional equipment Load Monitoring System (LMS)
0-10 km/h infinitely variable travel speed (forward and reverse)

FrequentlyAsked Questions

Maats does not stop performing when the equipment is delivered to the customer. We offer operator training for daily maintenance and first trouble shooting, commissioning and de-commissioning, preventive maintenance, spare parts availability and technical support during projects, both on site and remote by our technical team. Also; the vast Liebherr service network is globally present. Please contact us for proper assistance.

Maats' services

Maats provides a vast fleet with a wide range of equipment including pipelayers, bending machines, pipe carriers, welding equipment – complete with related equipment such as mandrels, internal line-up clamps, roller cradles and more. Please visit our Equipment page for the full delivery program and specifications or contact our Rental and Sales team.

Go to Equipment page

Yes; we offer both short-term and long-term rental options to suit your project timeline and budget. Our team can assist in customizing a rental agreement that will best fit your specific project requirements.

Indeed. All our equipment is inspected, certified when applicable and maintained according to industry standards to ensure safety, reliability and peak performance. We have our own workshops in Goor, the Netherlands and in Batam, Indonesia. Safety is priority at Maats and Liebherr, which is why all pipe layers, bending machines and welding tractors are based in a well-thought-out safety concept that sets standards in pipeline construction.

Yes. We provide e.g. eco-friendly drives, low-emission units, and circular material solutions whenever possible. All movements and deployment of our equipment as well as from our complete team are fully compensated.

Yes. We can assist our customers in handling their transportation and shipping, customs, and documentation, ensuring machines are ready for worldwide projects. Our equipment can comply with ISO, CE, API, and project-specific local regulations when communicated timely. (Any approvals such as Dosh, UDT, etc. are arranged by our customers).
