LIEBHERR RL22B

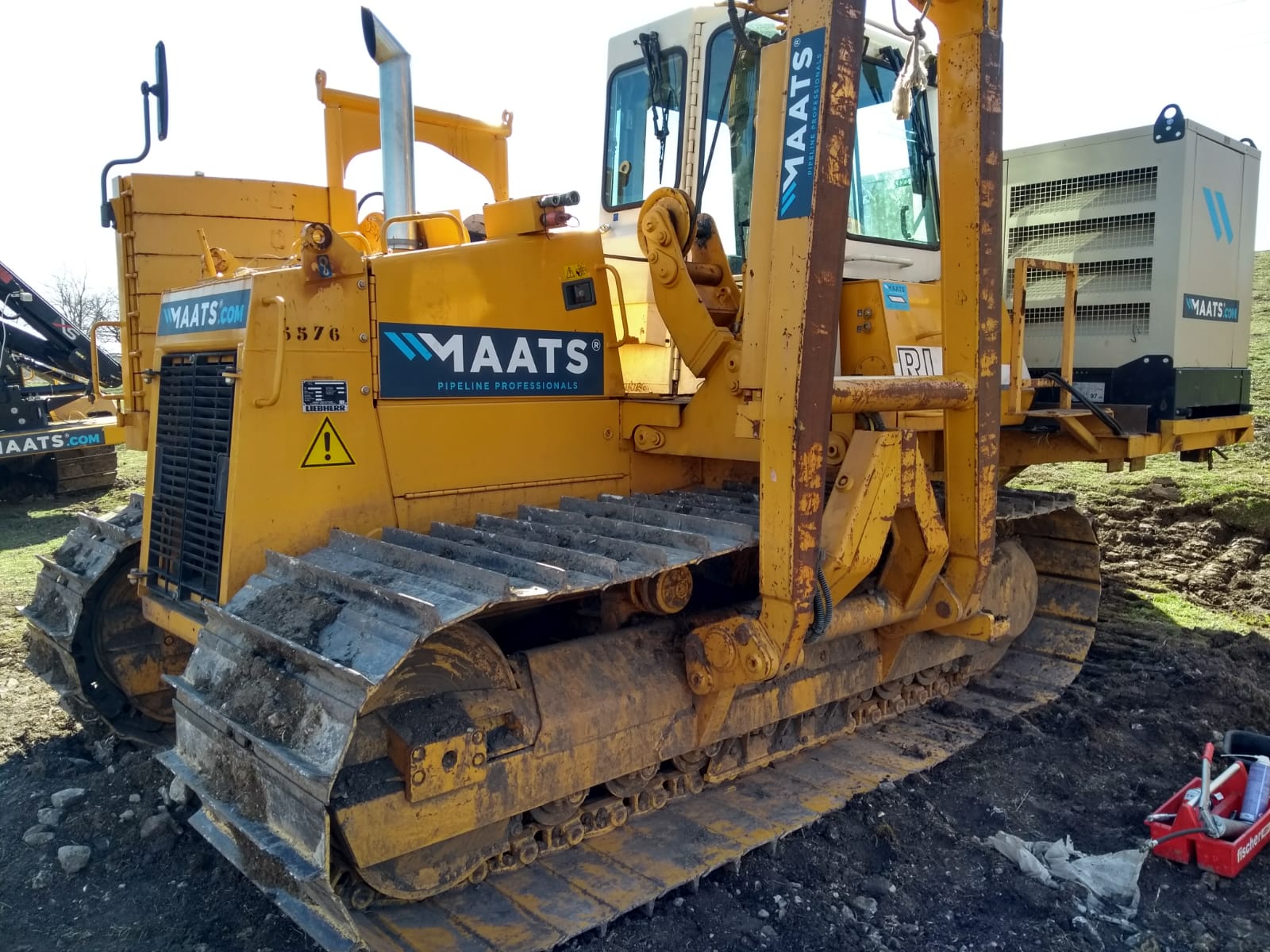

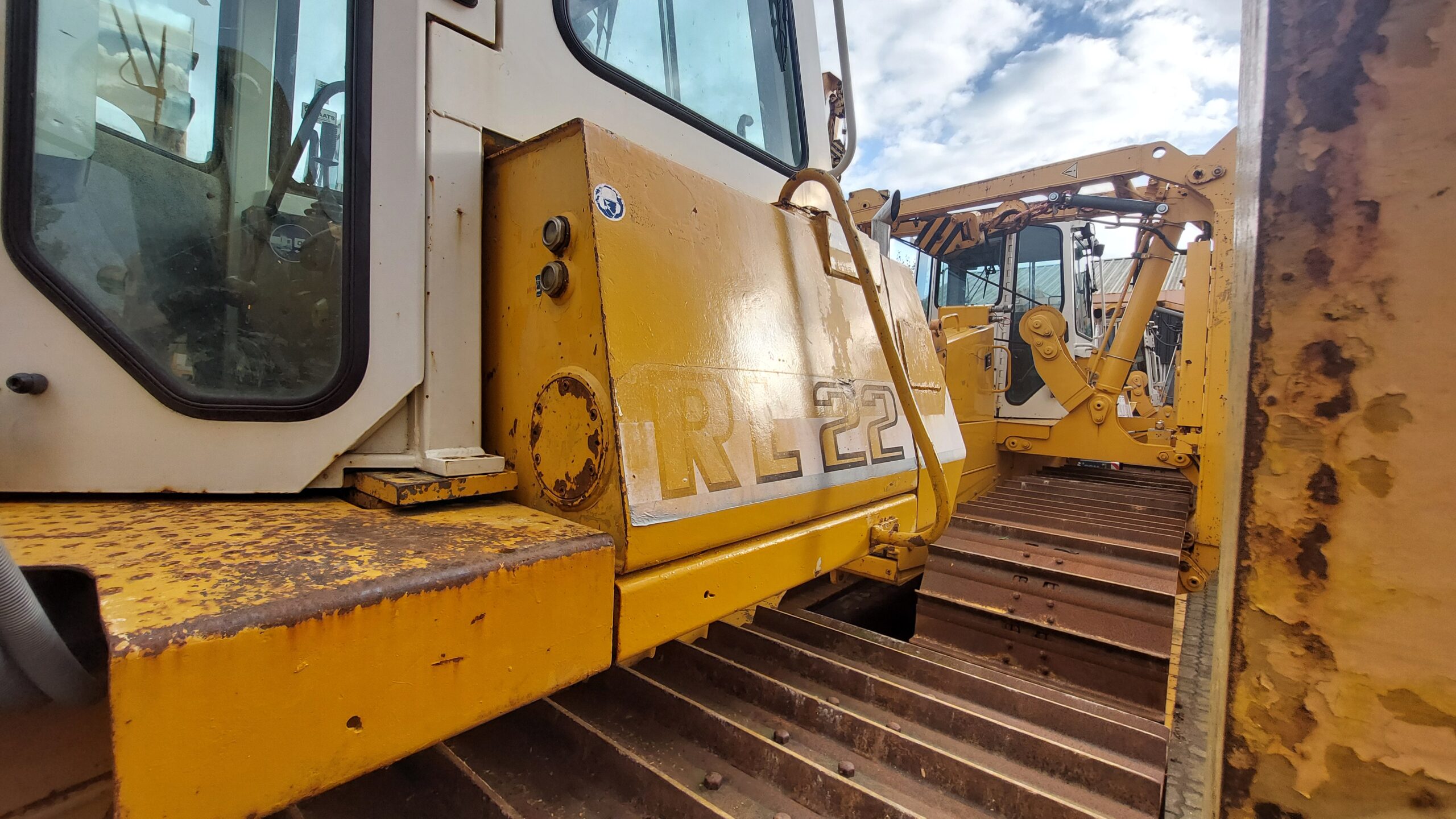

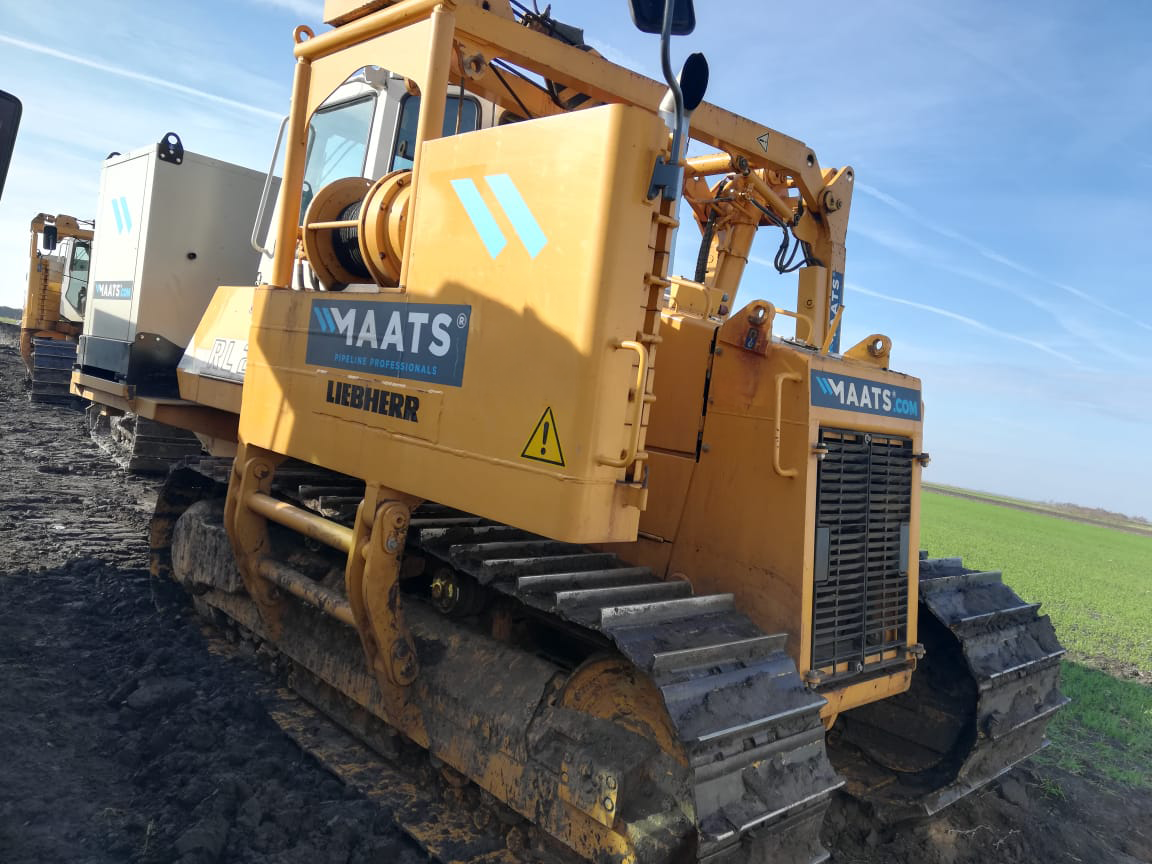

The Liebherr RL22B Pipelayer (or: Sideboom) offers a lifting capacity of 21.200 kg with an operating weight of approximately 20.500 kg. It is powered by the Liebherr D924 T-E engine (97 kW).
Looking for more lifting capacity?
Explore the Maats RL24
Need more information?
Please contact our sales department, they can and will be happy to help you.Specifications
Specifications
Compact yet capable, the Liebherr RL22B is designed for precision handling in light to medium pipeline operations. The ROPS cab with heating, combined with a 4,740 mm hinged boom, fixed counterweight and hydraulic winch with free fall control, ensures controlled and stable lifting performance. Track pads 914 mm / 610 mm width, a center track guide and acoustic back-up alarm support safe maneuvering across varied terrain. Units in the Maats rental fleet can additionally be equipped with a welding platform complete with generator, hydraulic PTO and JIB boom extension, enhancing on-site versatility. The hinged boom accommodates easy handling and compact transport dimensions – no need to dismount boom our A-frame for transportation purposes.
- Certification CE

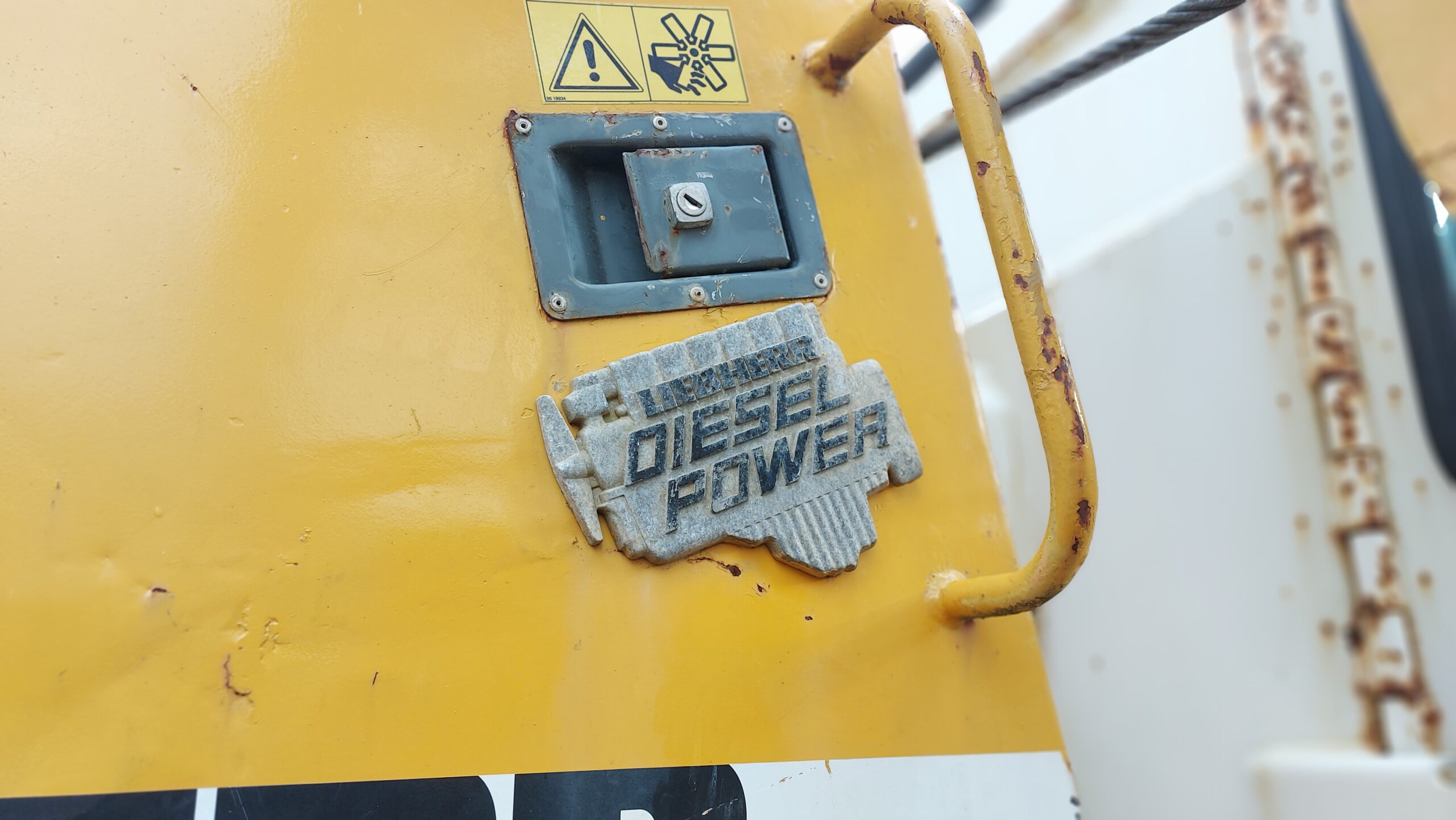

- Engine make & model Liebherr D924 T-E
- Engine output 97 kW, 132 HP @ 2.000 rpm
-
Standard configuration
Closed ROPS cabin with heater
Center track guide
0-11 km/h infinitely variable travel speed (forward and reverse)
Back-up alarm (acoustic)
Fixed counterweight

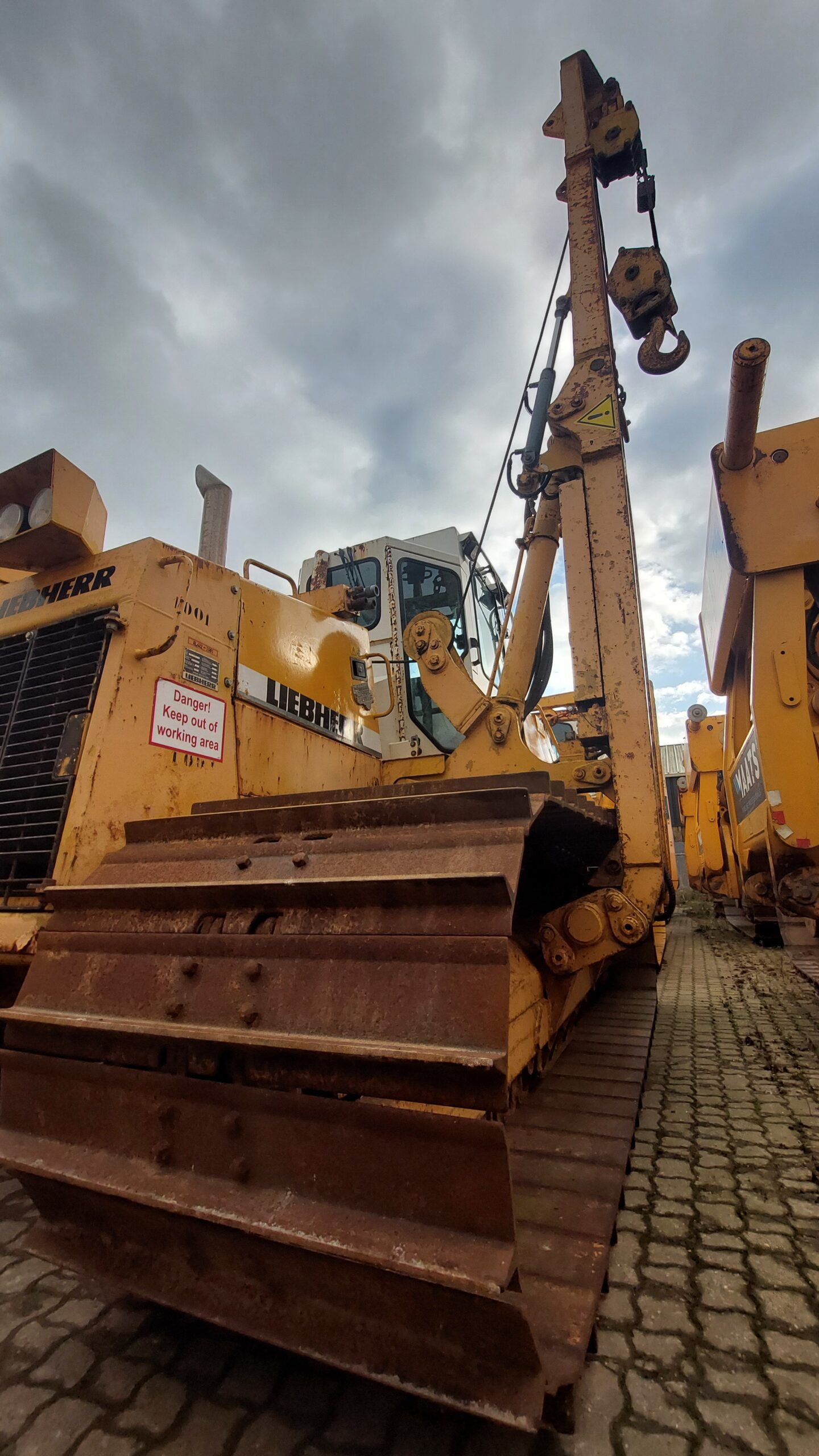

4.740 mm boom, hinged

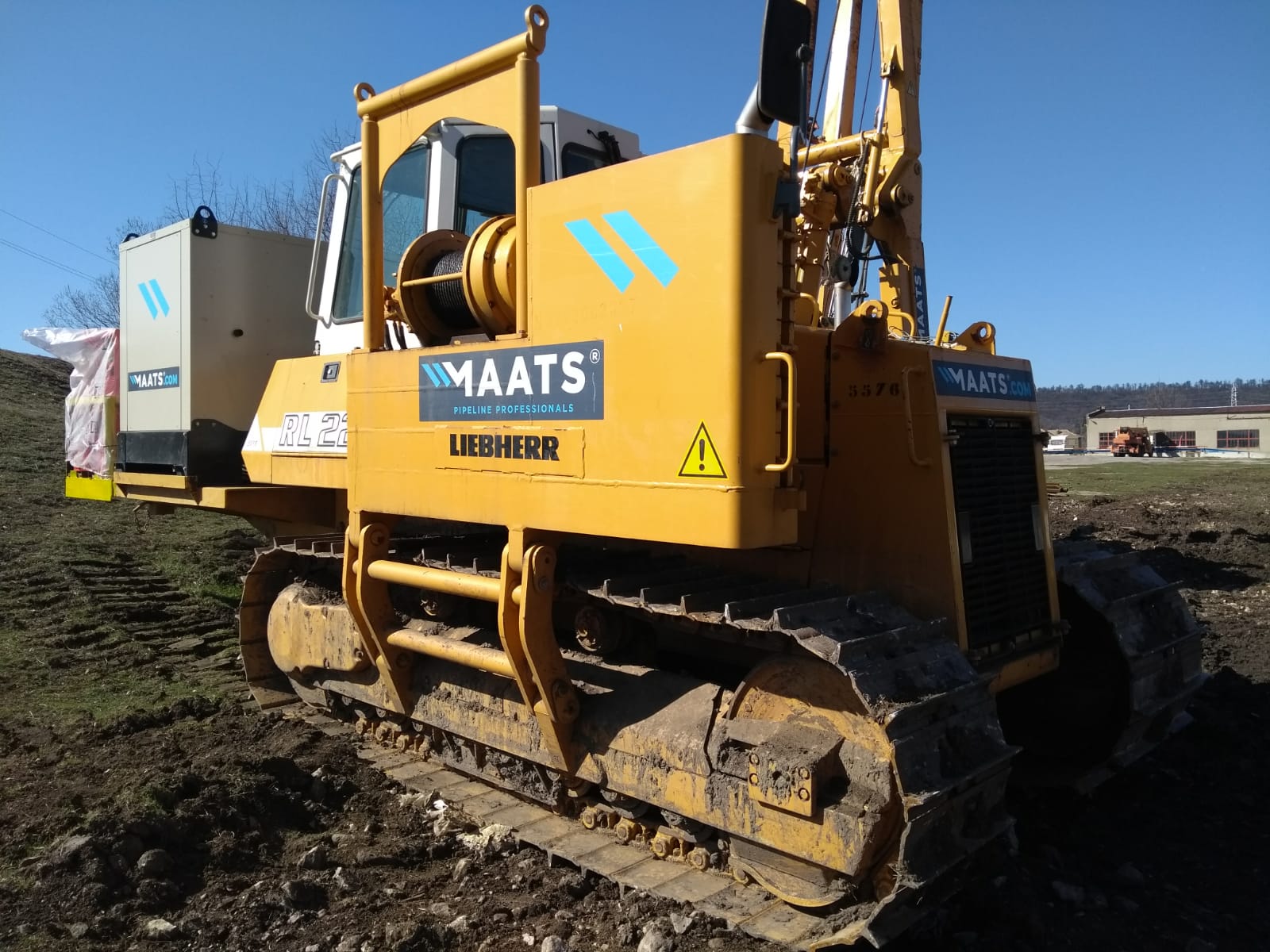

Hydraulic driven hoist winch
Free fall control
Hydraulic PTO

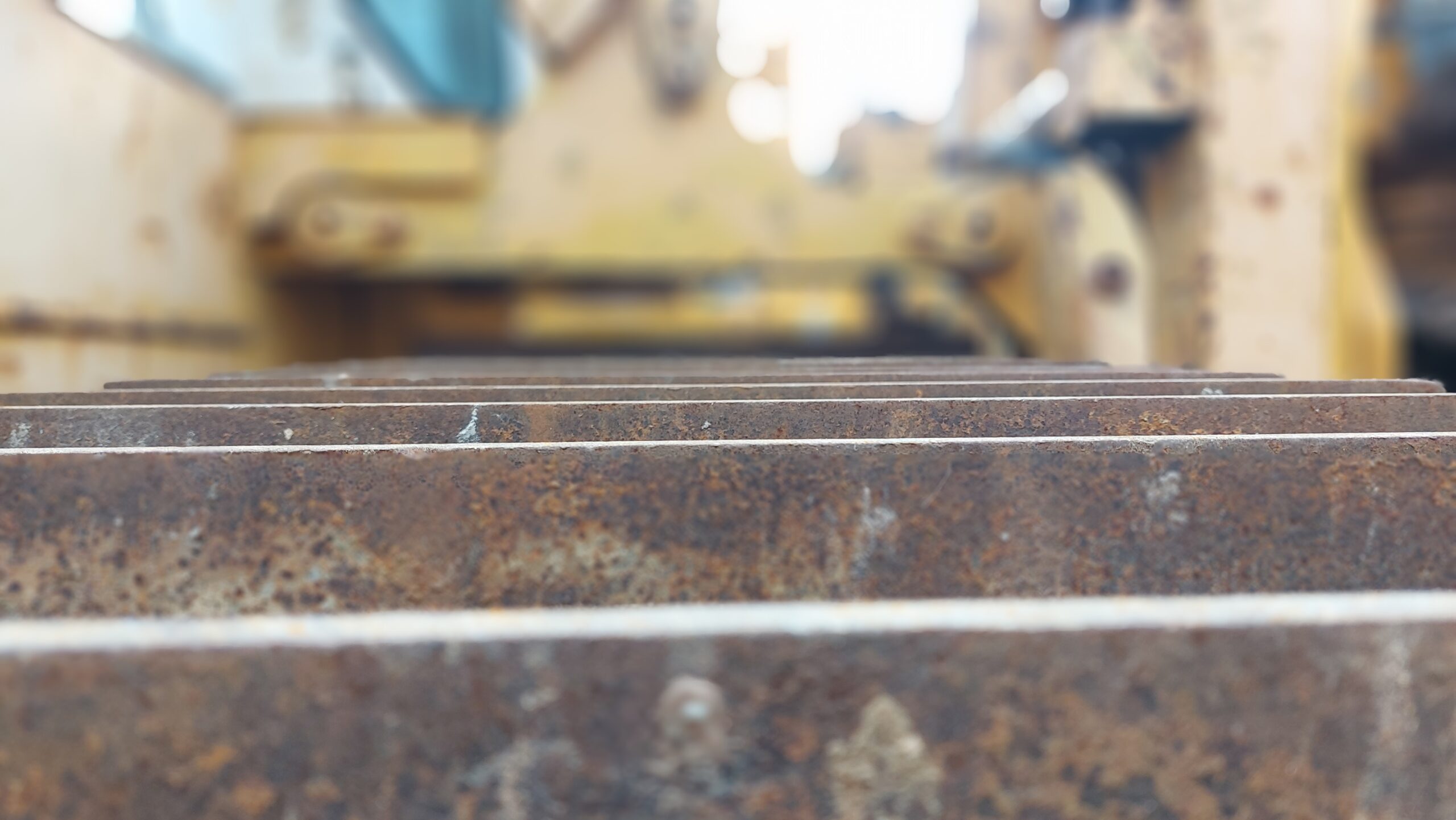

Lubricated single grouser track pads 914/610 mm -
Optional equipment

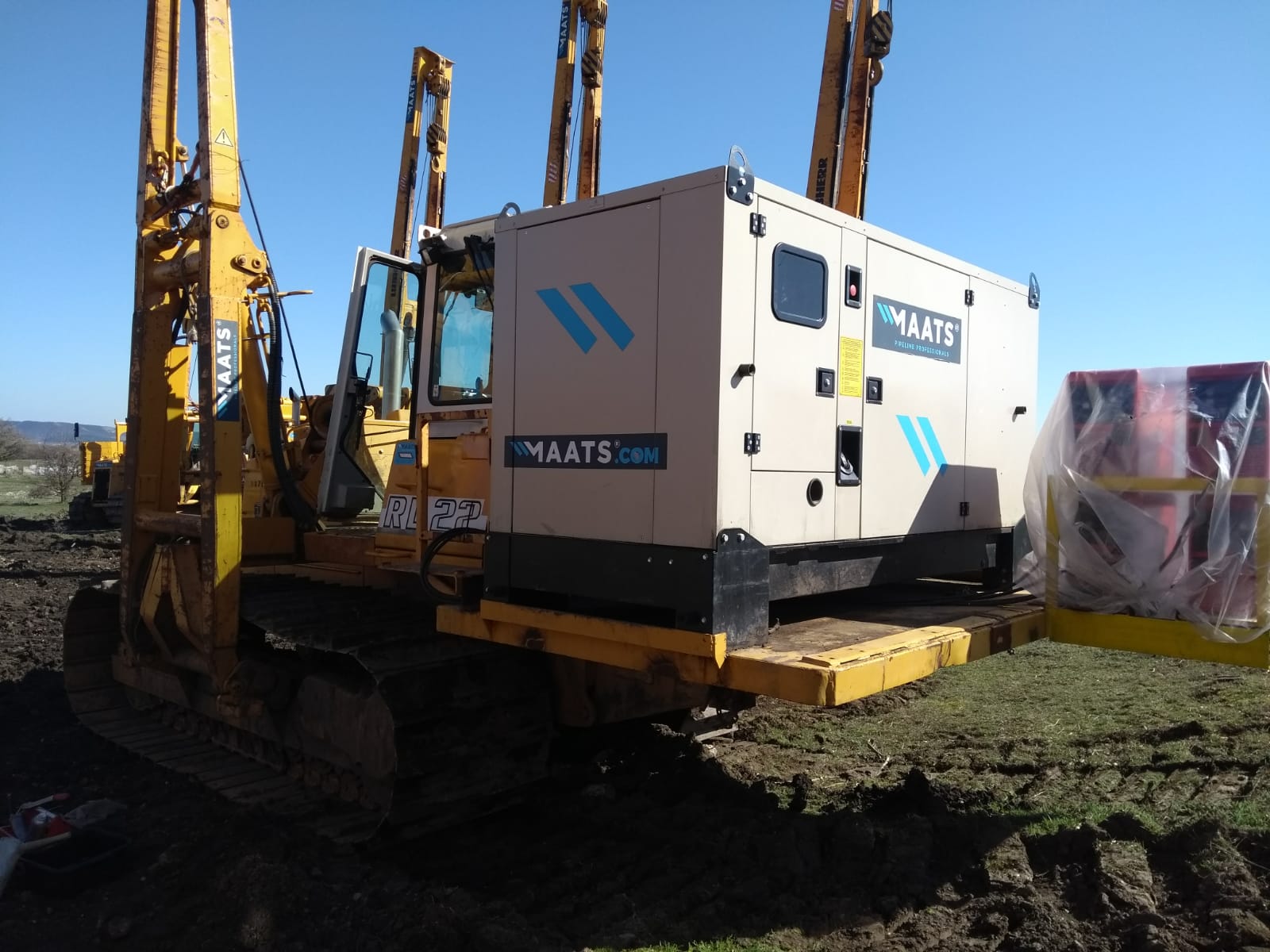

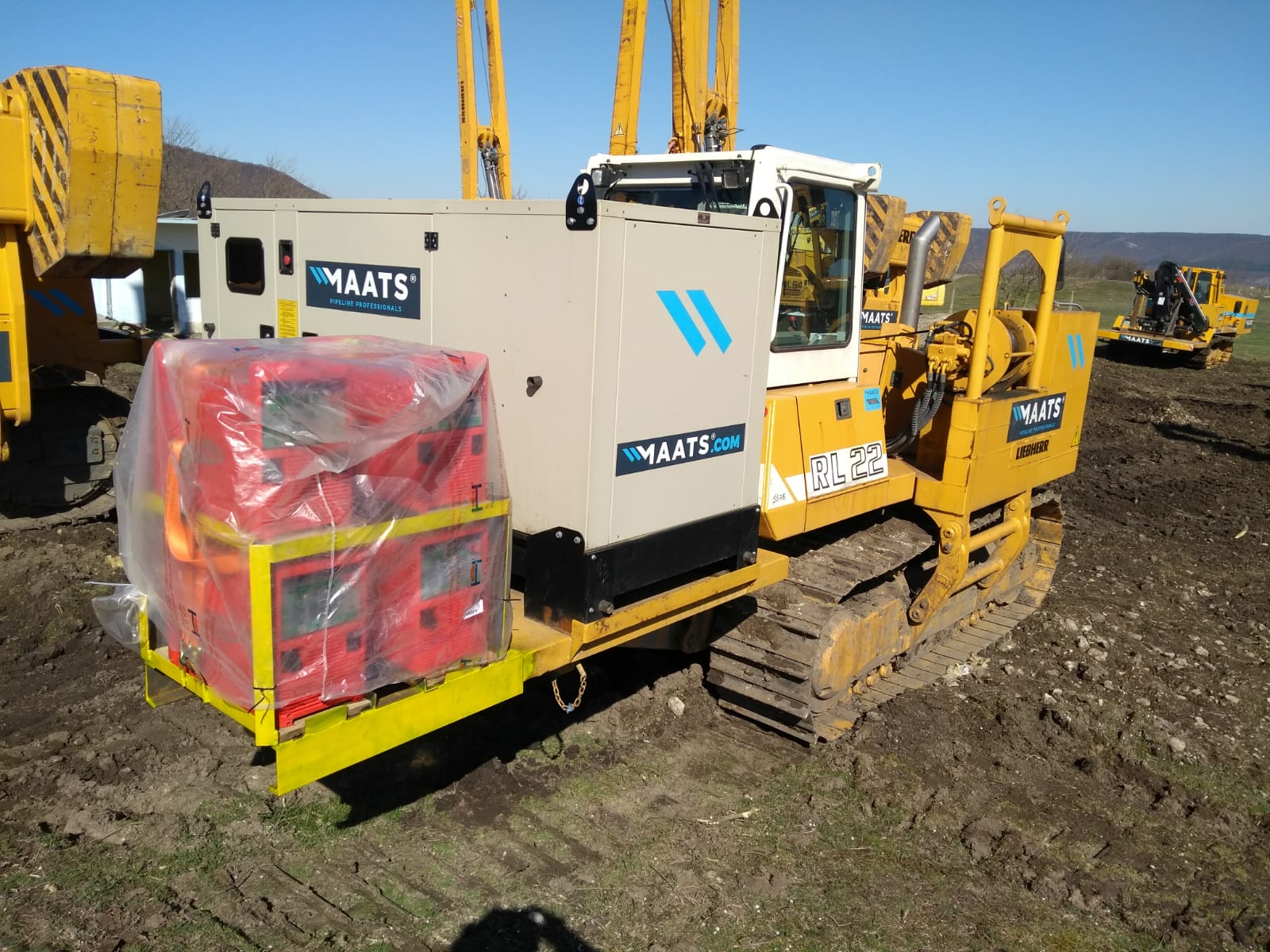

Welding platform with 100 kVA generator
Welding sources
JIB boom extension
Frequently Asked Questions
FrequentlyAsked Questions
Maats does not stop performing when the equipment is delivered to the customer. We offer operator training for daily maintenance and first trouble shooting, commissioning and de-commissioning, preventive maintenance, spare parts availability and technical support during projects, both on site and remote by our technical team. Also; the vast Liebherr service network is globally present. Please contact us for proper assistance.
Maats' servicesMaats provides a vast fleet with a wide range of equipment including pipelayers, bending machines, pipe carriers, welding equipment – complete with related equipment such as mandrels, internal line-up clamps, roller cradles and more. Please visit our Equipment page for the full delivery program and specifications or contact our Rental and Sales team.
Go to Equipment pageYes; we offer both short-term and long-term rental options to suit your project timeline and budget. Our team can assist in customizing a rental agreement that will best fit your specific project requirements.
Read moreIndeed. All our equipment is inspected, certified when applicable and maintained according to industry standards to ensure safety, reliability and peak performance. We have our own workshops in Goor, the Netherlands and in Batam, Indonesia. Safety is priority at Maats and Liebherr, which is why all pipe layers, bending machines and welding tractors are based in a well-thought-out safety concept that sets standards in pipeline construction.
Yes. We provide e.g. eco-friendly drives, low-emission units, and circular material solutions whenever possible. All movements and deployment of our equipment as well as from our complete team are fully compensated.
Read moreYes. We can assist our customers in handling their transportation and shipping, customs, and documentation, ensuring machines are ready for worldwide projects. Our equipment can comply with ISO, CE, API, and project-specific local regulations when communicated timely. (Any approvals such as Dosh, UDT, etc. are arranged by our customers).
