MAATS BM48-60

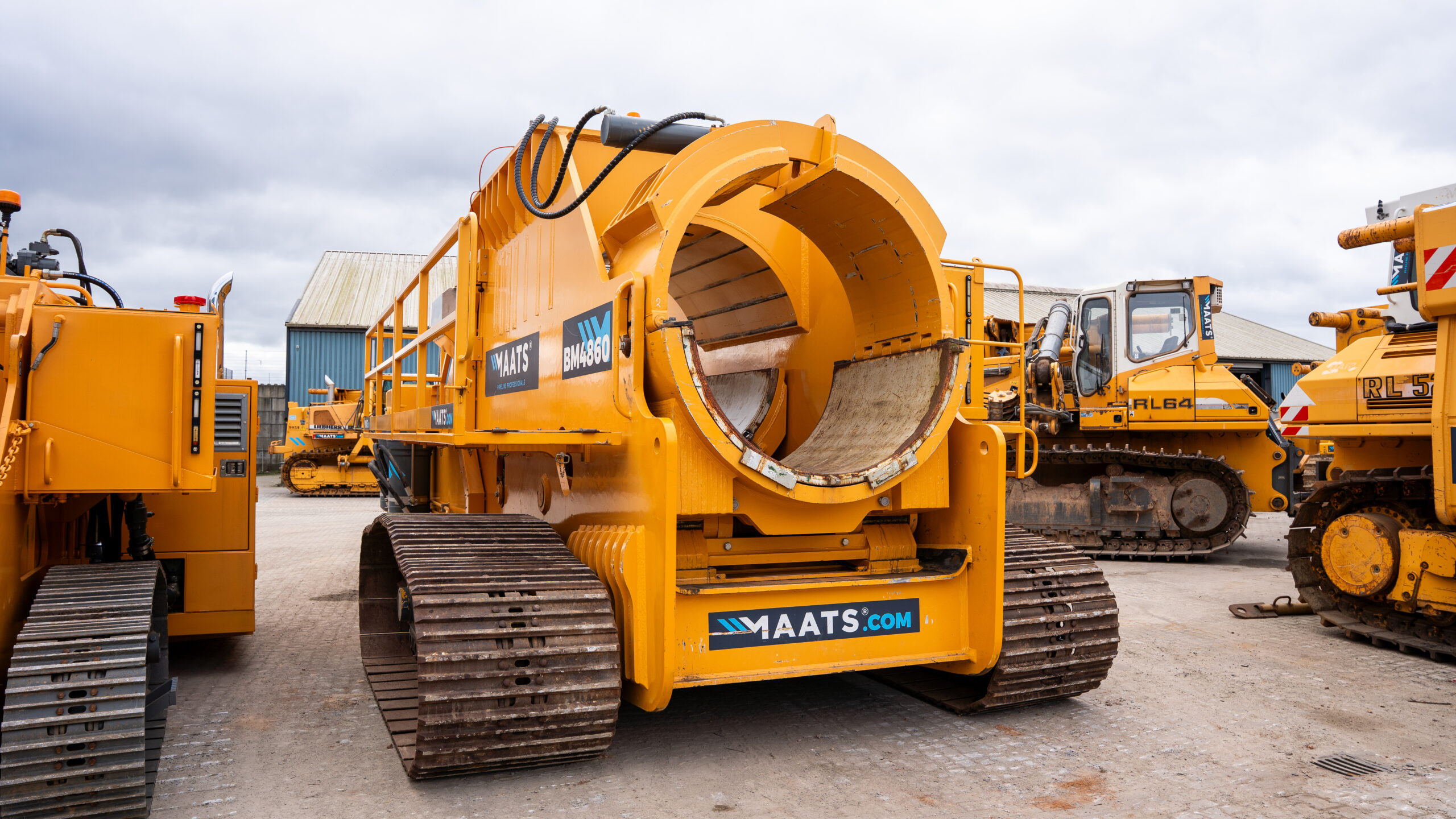

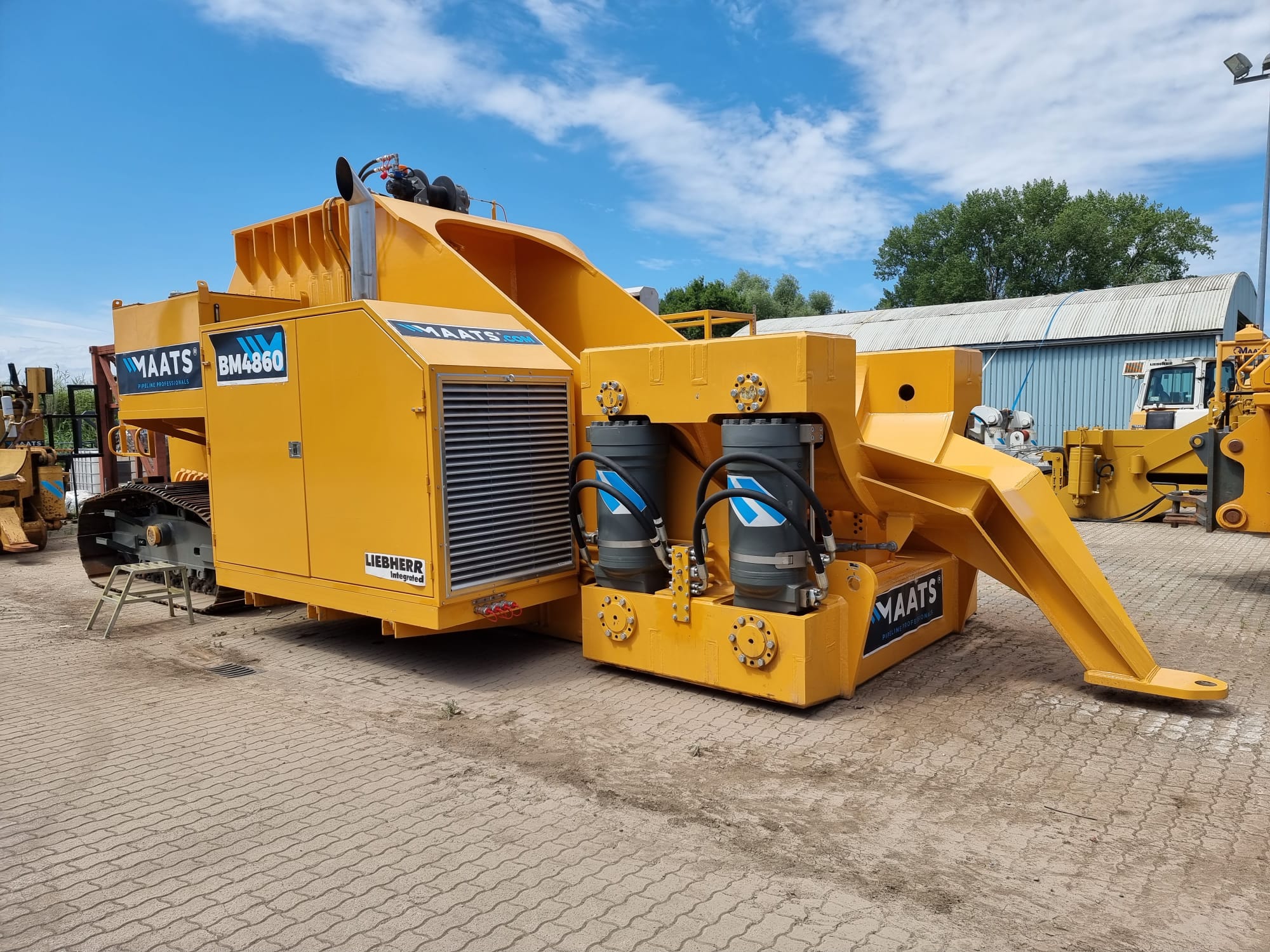

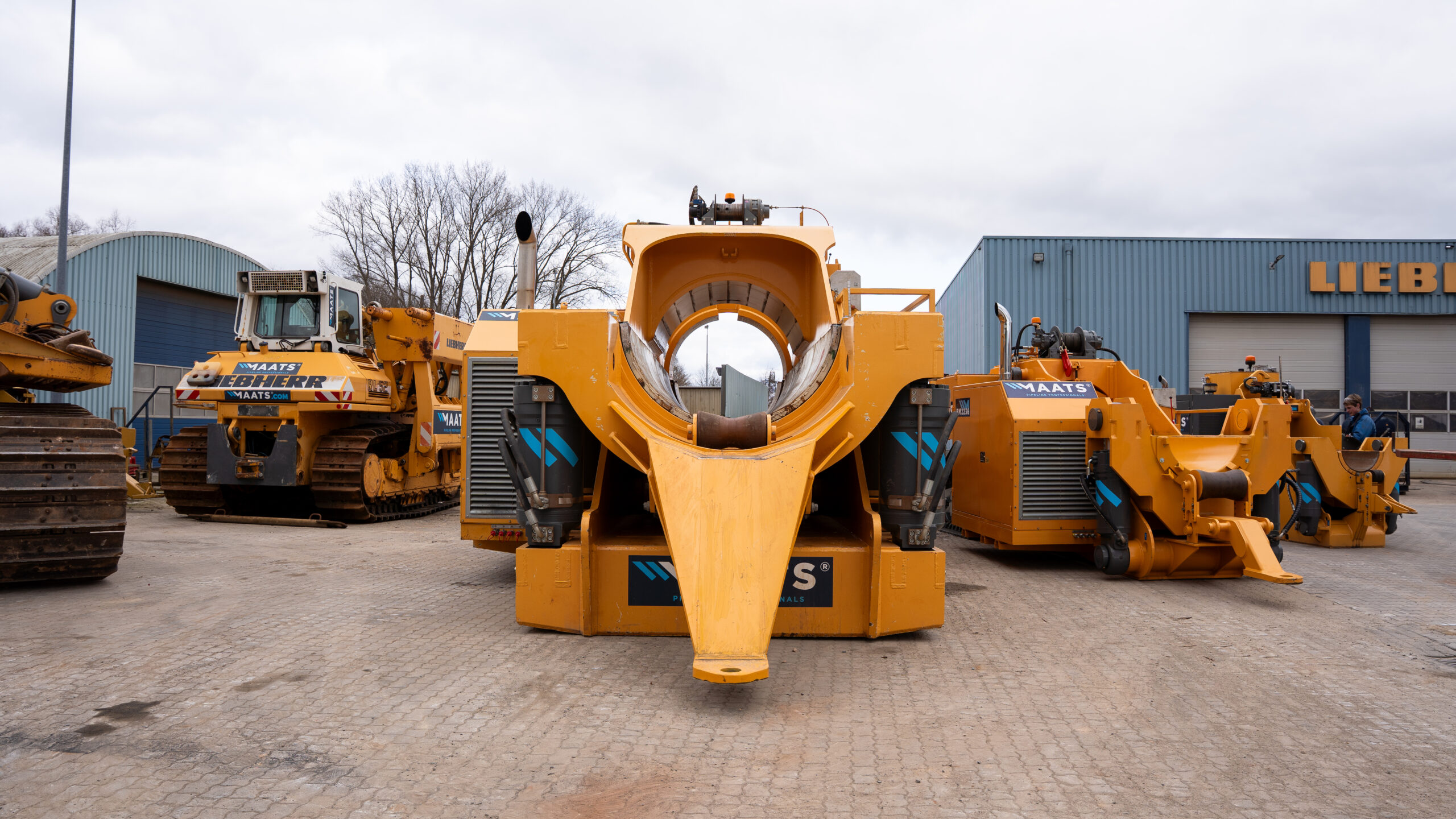

The Maats BM48-60 Pipe Bending Machine delivers exceptional strength and precision for large-diameter pipelines from 48 to 60 inches. Weighing approximately 88.000 kg and powered by the robust Liebherr D946 L A6 engine with an output of 275 kW, it offers outstanding power, reliability, and performance for the most demanding pipeline bending applications.
Need more information?
Please contact our sales department, they can and will be happy to help you.Specifications
Specifications
Featuring a Liebherr Integrated hydraulic system, the Maats BM48-60 is equipped with a hydraulic PTO for driving a mandrel, ensuring precise and consistent bending performance on large pipe diameters. Units within the Maats rental fleet are built on a tracked chassis with 914 mm track pads and include a hydraulically driven winch with a 16 mm × 25 m cable, providing secure control during bending operations. Optional equipment includes a compressor, cold-start device, extended cable lengths up to 50 m, non-standard track pads and chain lengths, as well as dedicated bending sets and dies tailored to specific pipe dimensions.
- Working range 48" to 60"
- Engine make & model Liebherr D946 L A6
- Engine output 275 kW
- Exhaust gas after-treatment No
- Emission standards EU Stage IIIA and US EPA Tier 3
- Certification CE
- Operating weight 88.000 kgs
-
Standard configuration
• Liebherr Integrated hydraulics
• Hydraulic PTO to drive a mandrel
• Tracked chassis
• Track pads 914 mm
• Hydraulic driven winch
• Cable 16 mm x 25 meters -
Optional Equipment
• Compressor
• Cold start device
• Non-standard track pads & chain length
• Cable 16 mm x 50 meters
• Bending sets
• Dies
Frequently Asked Questions
FrequentlyAsked Questions
Maats does not stop performing when the equipment is delivered to the customer. We offer operator training for daily maintenance and first trouble shooting, commissioning and de-commissioning, preventive maintenance, spare parts availability and technical support during projects, both on site and remote by our technical team. Also; the vast Liebherr service network is globally present. Please contact us for proper assistance.
Maats' servicesMaats provides a vast fleet with a wide range of equipment including pipelayers, bending machines, pipe carriers, welding equipment – complete with related equipment such as mandrels, internal line-up clamps, roller cradles and more. Please visit our Equipment page for the full delivery program and specifications or contact our Rental and Sales team.
Go to Equipment pageYes; we offer both short-term and long-term rental options to suit your project timeline and budget. Our team can assist in customizing a rental agreement that will best fit your specific project requirements.
Read moreIndeed. All our equipment is inspected, certified when applicable and maintained according to industry standards to ensure safety, reliability and peak performance. We have our own workshops in Goor, the Netherlands and in Batam, Indonesia. Safety is priority at Maats and Liebherr, which is why all pipe layers, bending machines and welding tractors are based in a well-thought-out safety concept that sets standards in pipeline construction.
Yes. We provide e.g. eco-friendly drives, low-emission units, and circular material solutions whenever possible. All movements and deployment of our equipment as well as from our complete team are fully compensated.
Read moreYes. We can assist our customers in handling their transportation and shipping, customs, and documentation, ensuring machines are ready for worldwide projects. Our equipment can comply with ISO, CE, API, and project-specific local regulations when communicated timely. (Any approvals such as Dosh, UDT, etc. are arranged by our customers).
The Maats BM48-60 Pipe Bending Machine delivers exceptional strength and precision for large-diameter pipelines from 48 to 60 inches. Weighing approximately 88.000 kg and powered by the robust Liebherr D946 L A6 engine with an output of 275 kW, it offers outstanding power, reliability, and performance for the most demanding pipeline bending applications.
