MAATS BM16-30

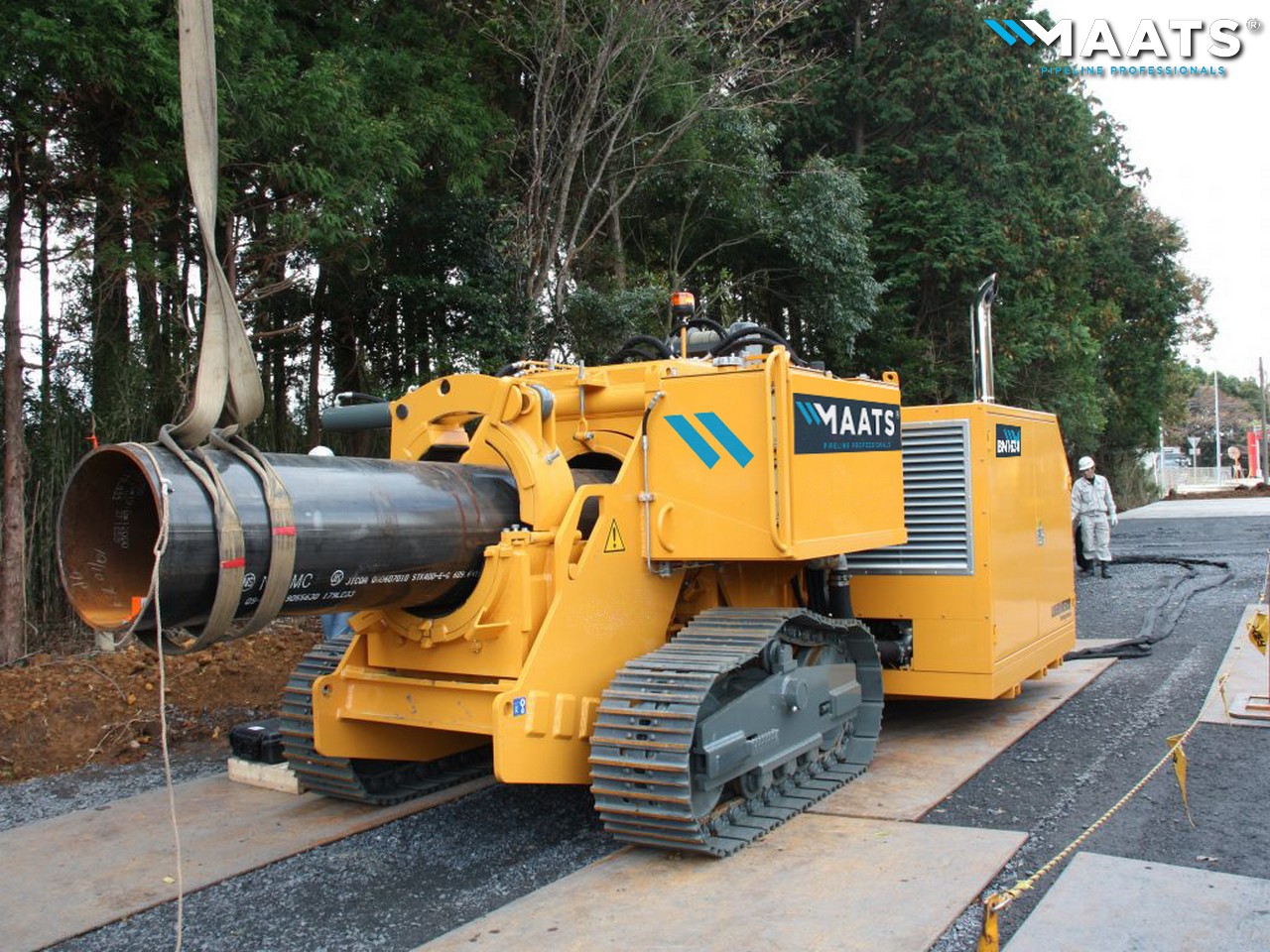

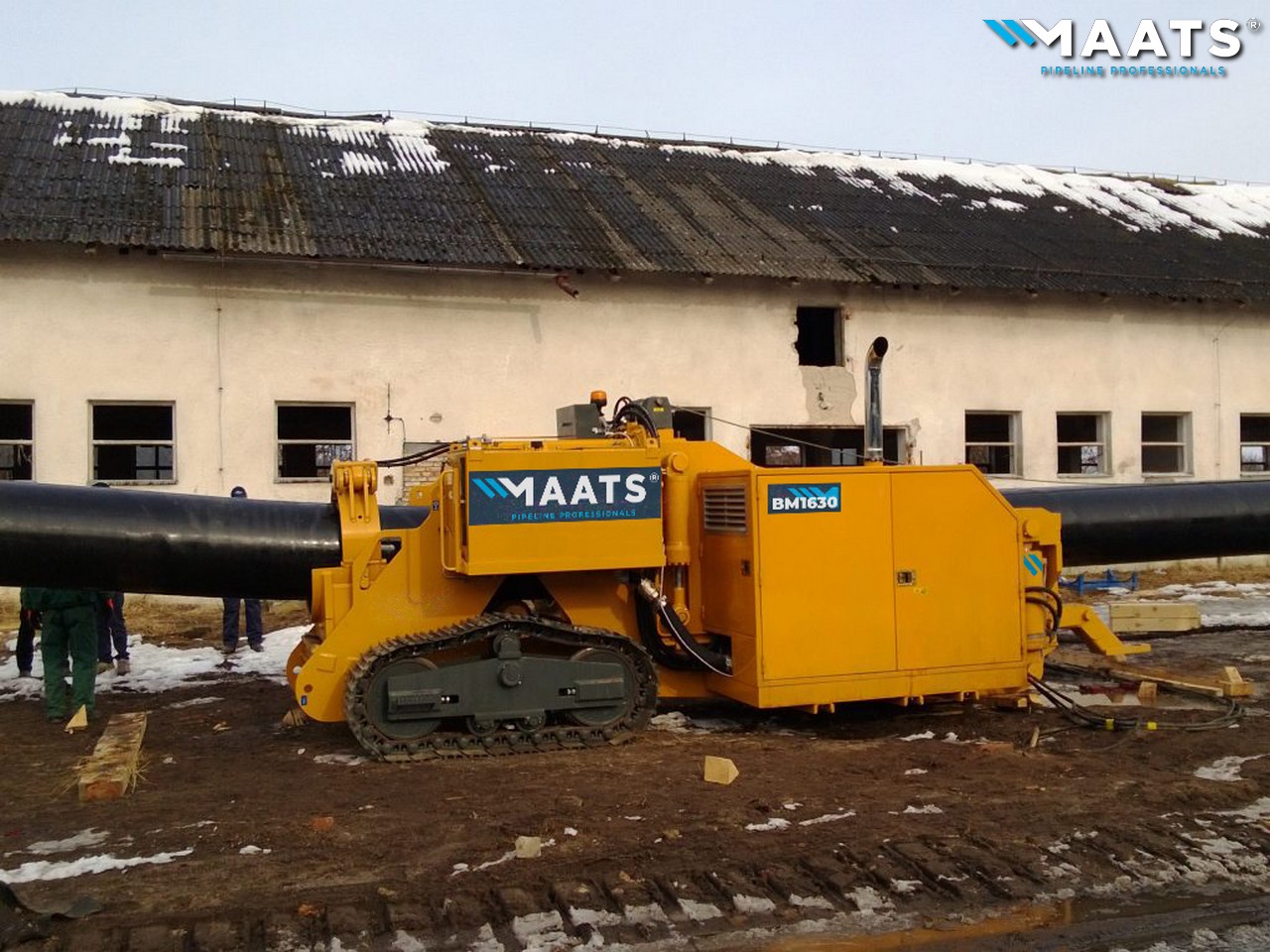

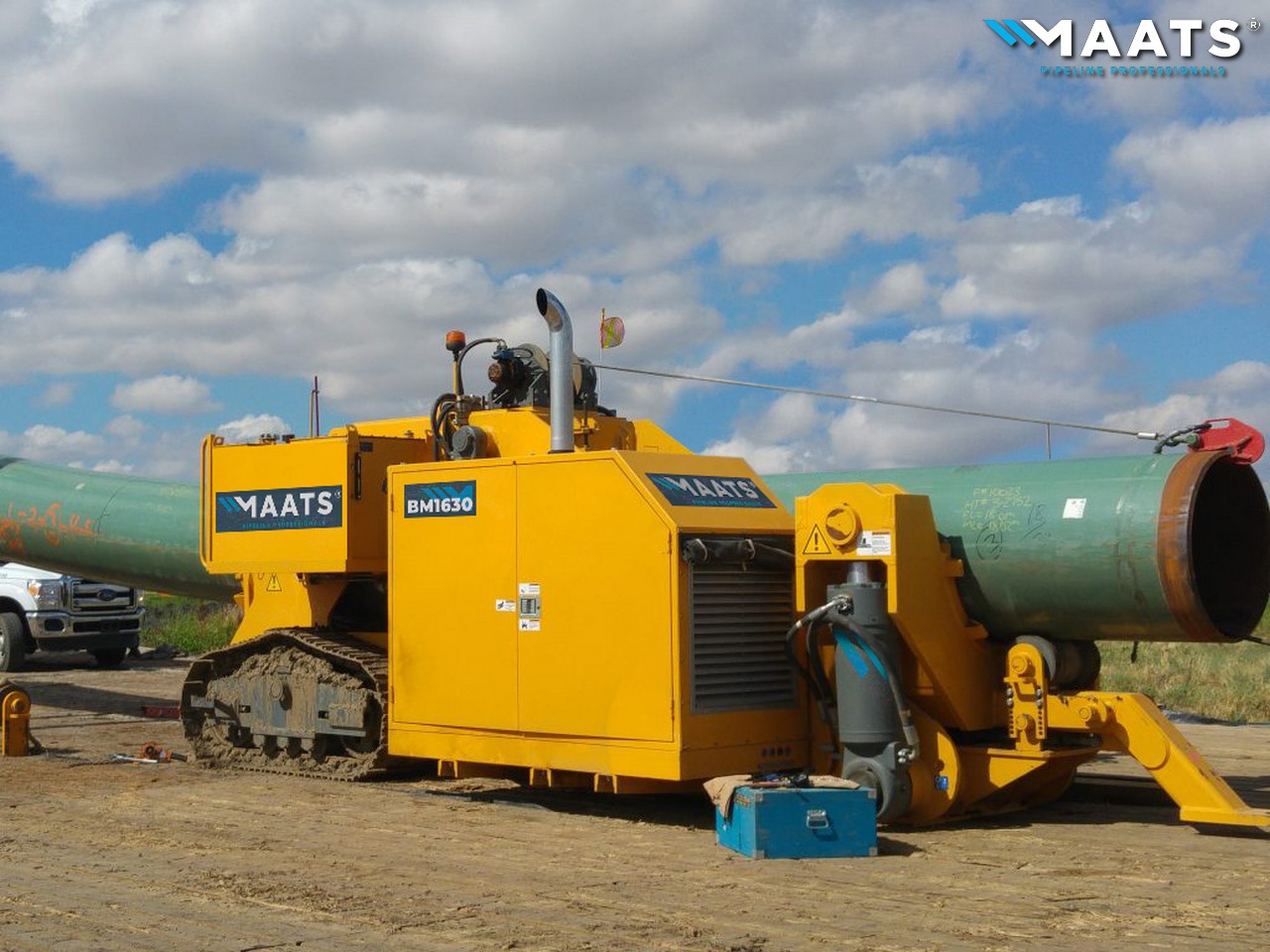

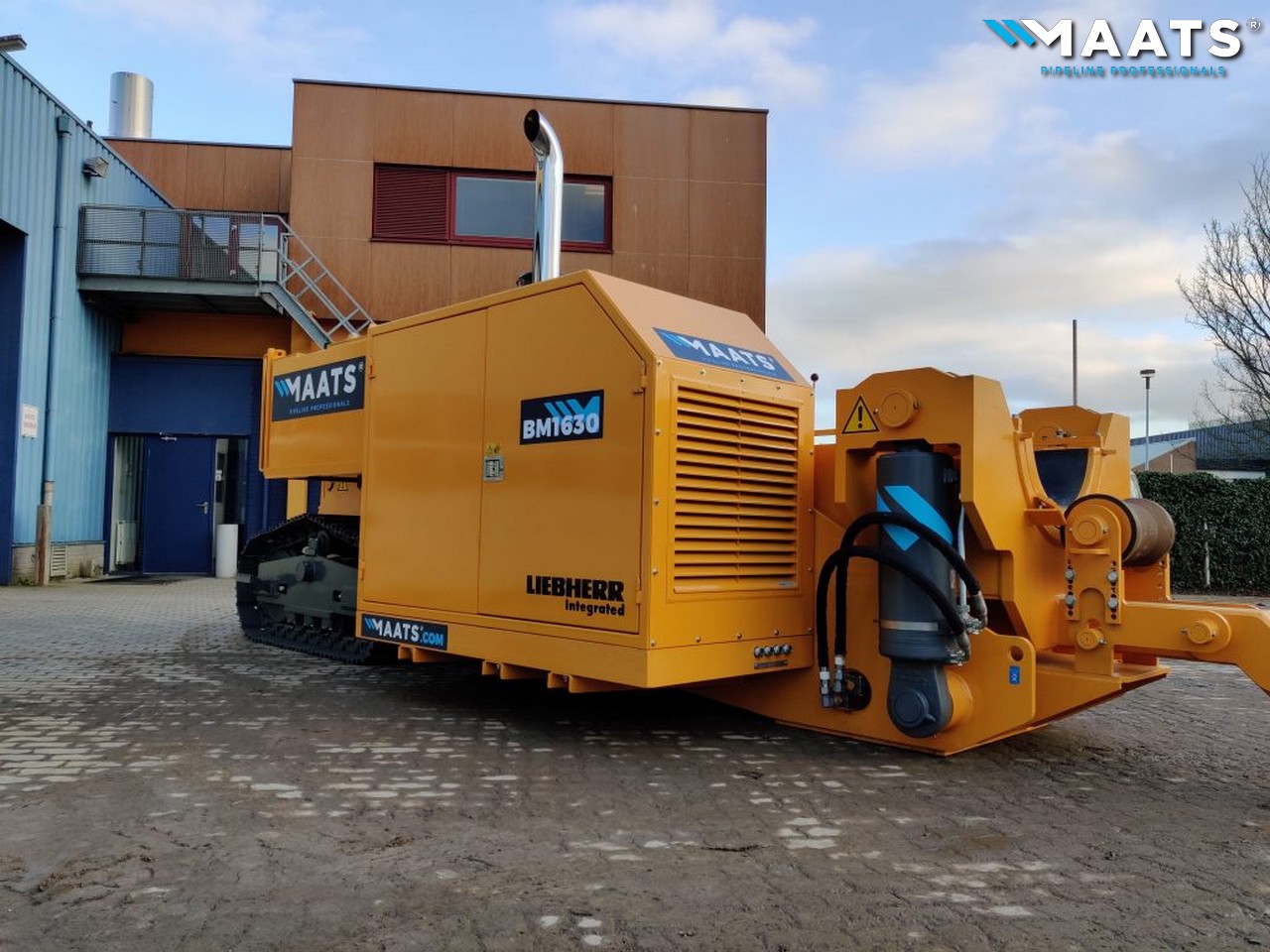

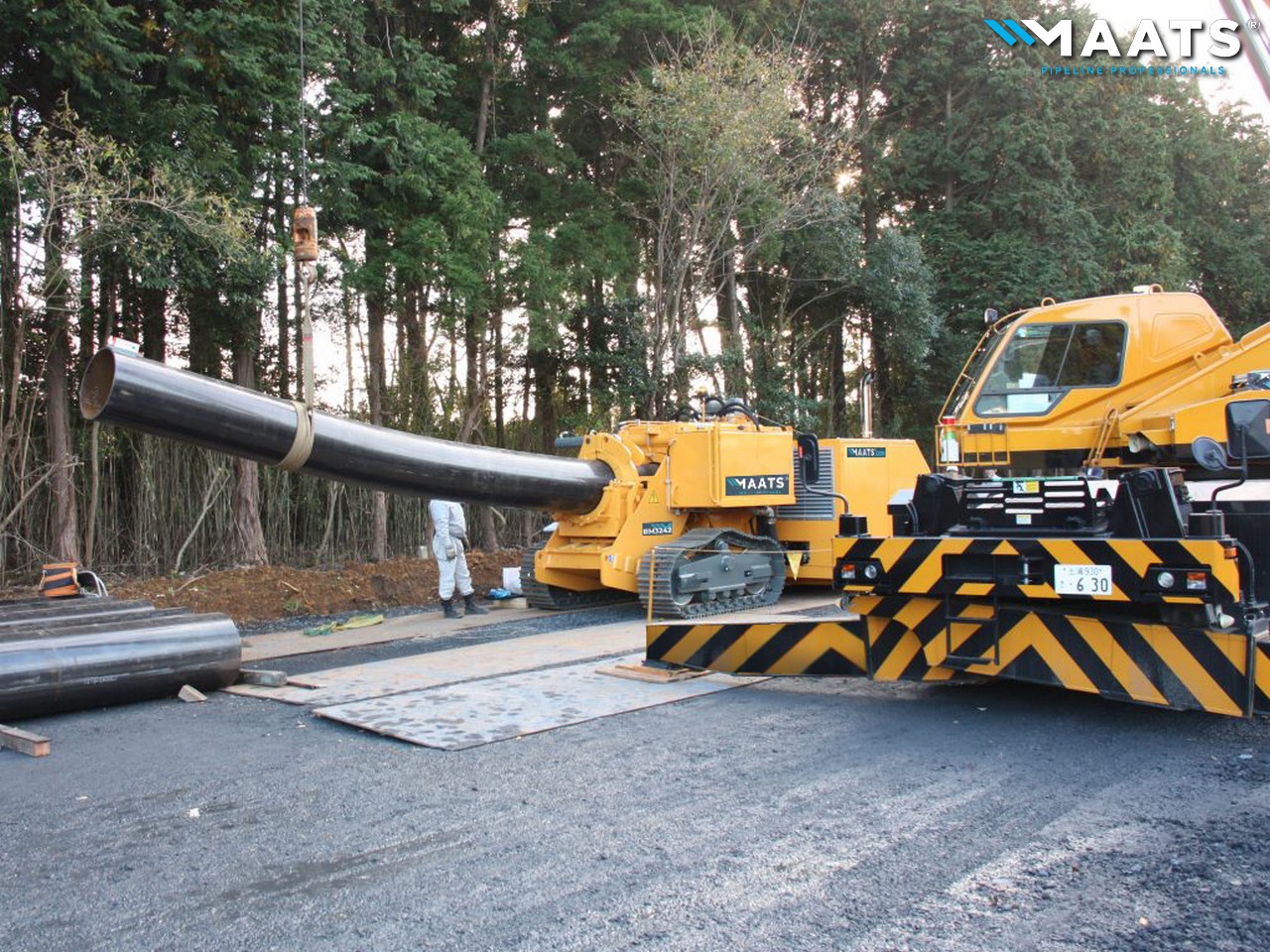

The Maats BM16-30 Pipe Bending Machine combines power, precision, and efficiency for pipelines ranging from 16 to 30 inches in diameter. Weighing approximately 22.500 kgs and powered by the advanced FPT N45 engine, it delivers reliable, low-emission performance to meet the demands of today’s pipeline construction industry.

Manufacturer: MAATS
Model: BM16-30
Working range : 16" to 30"
Operating weight: 22.250 kgs
Engine: FTP N45

Looking for more working range?

Explore the Maats BM22-36

MAATS BM22-36
MAATS BM22-36 Working range: 22" to 36"

Need more information?

Please contact our sales department, they can and will be happy to help you.

Specifications

Specifications

The machine is equipped with a Liebherr Integrated hydraulic system and a hydraulic PTO that powers the mandrel system, enabling precise and controlled bending operations. Standard configuration is mounting on a wheeled chassis and feature a hydraulically driven winch complete with a 13 mm x 25 m cable, ensuring safe and efficient handling throughout the bending process. Optional bending sets are available to accommodate various pipe diameter ranges, tailored to the specific requirements of each project configuration.

  • Working range 16" to 30"
  • Engine make & model FTP N45
  • Engine output 125 kW
  • Exhaust gas after-treatment
  • Emission standards EU Stage IV and US EPA Tier 4 F
  • Certification CE
  • Operating weight 22.250 kgs
  • Standard configuration • Liebherr Integrated hydraulics
    • Hydraulic PTO to drive a mandrel
    • Tracked chassis
    • Track pads 458 mm
    • Hydraulic driven winch
    • Cable 13 mm x 25 meters
  • Optional equipment • Bending sets
    • Dies
    • Track pads 508 mm

Frequently Asked Questions

FrequentlyAsked Questions

Maats does not stop performing when the equipment is delivered to the customer. We offer operator training for daily maintenance and first trouble shooting, commissioning and de-commissioning, preventive maintenance, spare parts availability and technical support during projects, both on site and remote by our technical team. Also; the vast Liebherr service network is globally present. Please contact us for proper assistance.

Maats' services

Maats provides a vast fleet with a wide range of equipment including pipelayers, bending machines, pipe carriers, welding equipment – complete with related equipment such as mandrels, internal line-up clamps, roller cradles and more. Please visit our Equipment page for the full delivery program and specifications or contact our Rental and Sales team.

Go to Equipment page

Yes; we offer both short-term and long-term rental options to suit your project timeline and budget. Our team can assist in customizing a rental agreement that will best fit your specific project requirements.

Read more

Indeed. All our equipment is inspected, certified when applicable and maintained according to industry standards to ensure safety, reliability and peak performance. We have our own workshops in Goor, the Netherlands and in Batam, Indonesia. Safety is priority at Maats and Liebherr, which is why all pipe layers, bending machines and welding tractors are based in a well-thought-out safety concept that sets standards in pipeline construction.

Yes. We provide e.g. eco-friendly drives, low-emission units, and circular material solutions whenever possible. All movements and deployment of our equipment as well as from our complete team are fully compensated.

Read more

Yes. We can assist our customers in handling their transportation and shipping, customs, and documentation, ensuring machines are ready for worldwide projects. Our equipment can comply with ISO, CE, API, and project-specific local regulations when communicated timely. (Any approvals such as Dosh, UDT, etc. are arranged by our customers).
