used equipment by maats

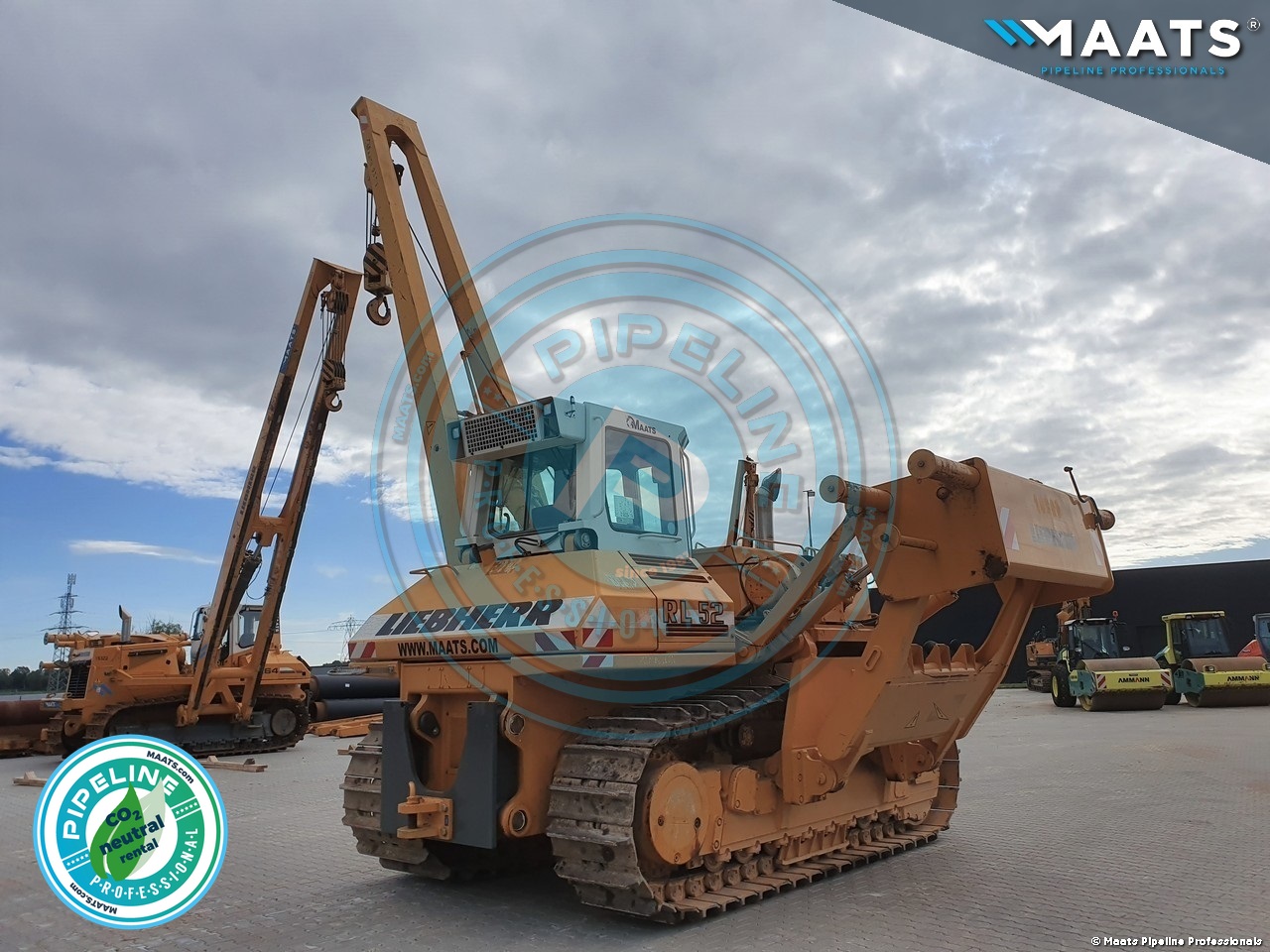

liebherr RL52 litronic

liebherr rl52 pipelayer lift capacity 80.000 kgs
Manufacturer LIEBHERR
Model RL52 Litronic Sideboom Pipelayer
Year of manufacture 2007
Recorded hours 7.000 hours
Operating weight 52.300 kgs
Lift capacity 80.000 kgs
Certification CE
Engine make & model LIEBHERR D9406T1-E A4
Engine output 243 kW
Emission standards EU Stage IIIA & USA EPA Tier3
Fuel tank capacity 610 liters
Configuration ROPS cab with heating
Air conditioning
Boom 8.500 mm
Track pads 914 mm & 710 mm
Centre track guide
Acoustic back-up alarm
Fourteen (14) removable counterweights
Hydraulic driven winch
Partially prepared for arctic conditions (-40 degrees)
Free fall control
Load monitoring system
Transport dimensions (LxWxH) Base machine: 5.800 mm x 3.750 mm x 3.650 mm
Weight base machine: 40.100 kgs
Boom: 8.500 mm x 1.450 mm x 500 mm
Weight boom: 2.375 kgs
a) Counterweight - 7 units: 1.050 mm x 1.250 mm x 100 mm
Weight each: 810 kgs
b) Counterweight - 7 units: 1.050 mm x 800 mm x 100 mm
Weight each: 515 kgs
Remarks Availability subject to prior rental or sale
Machine is currently rented
Machine is available for rental as well: contact us for our rental rates
Product brochure Specifications Liebherr RL52
Price Contact us for a detailed quotation including pictures and price
Contact Roderik van der Velde for more details:  velde@maats.com | +31 (0)6 86 89 80 55
