CRC-EVANS 22-36

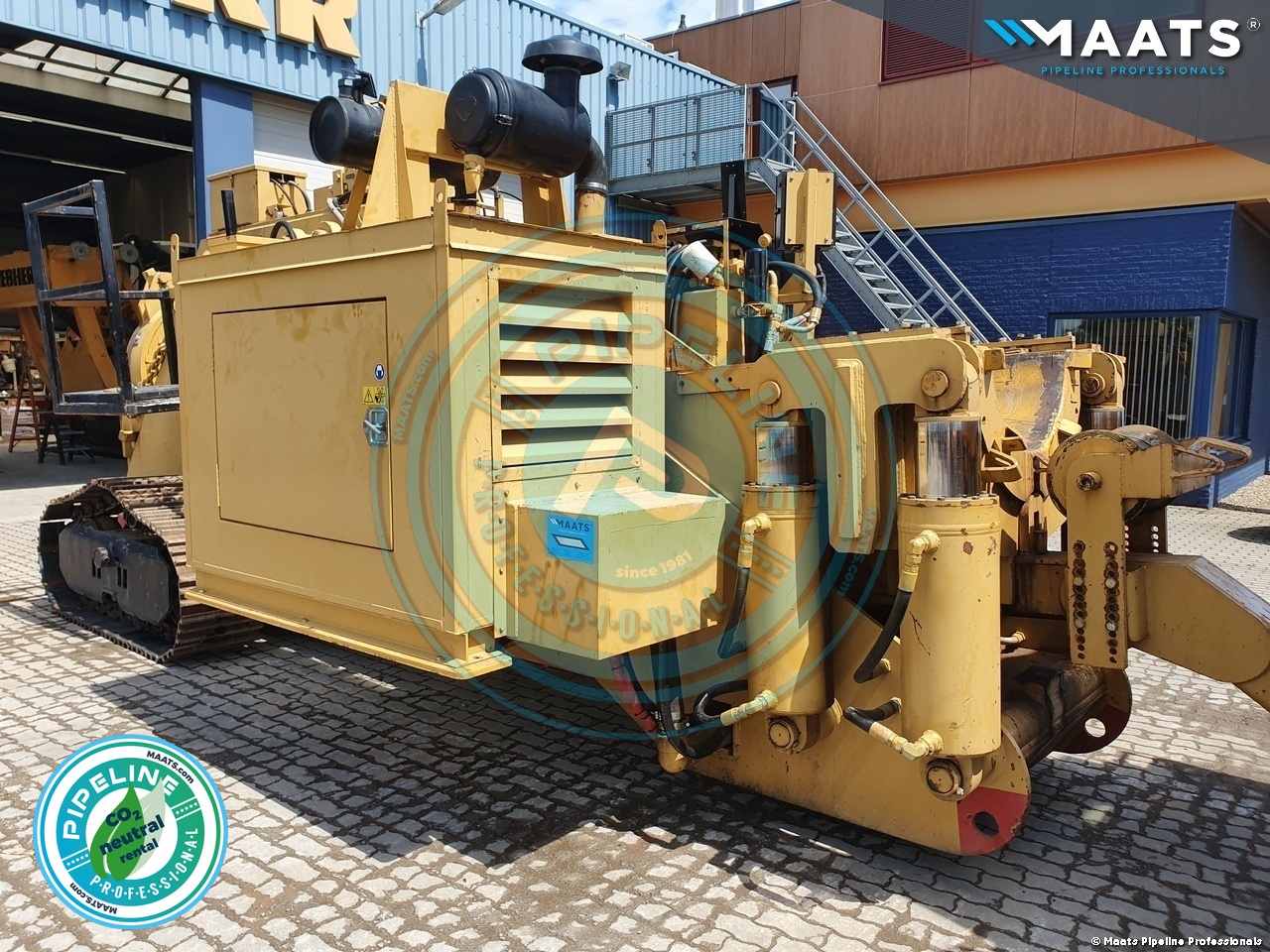

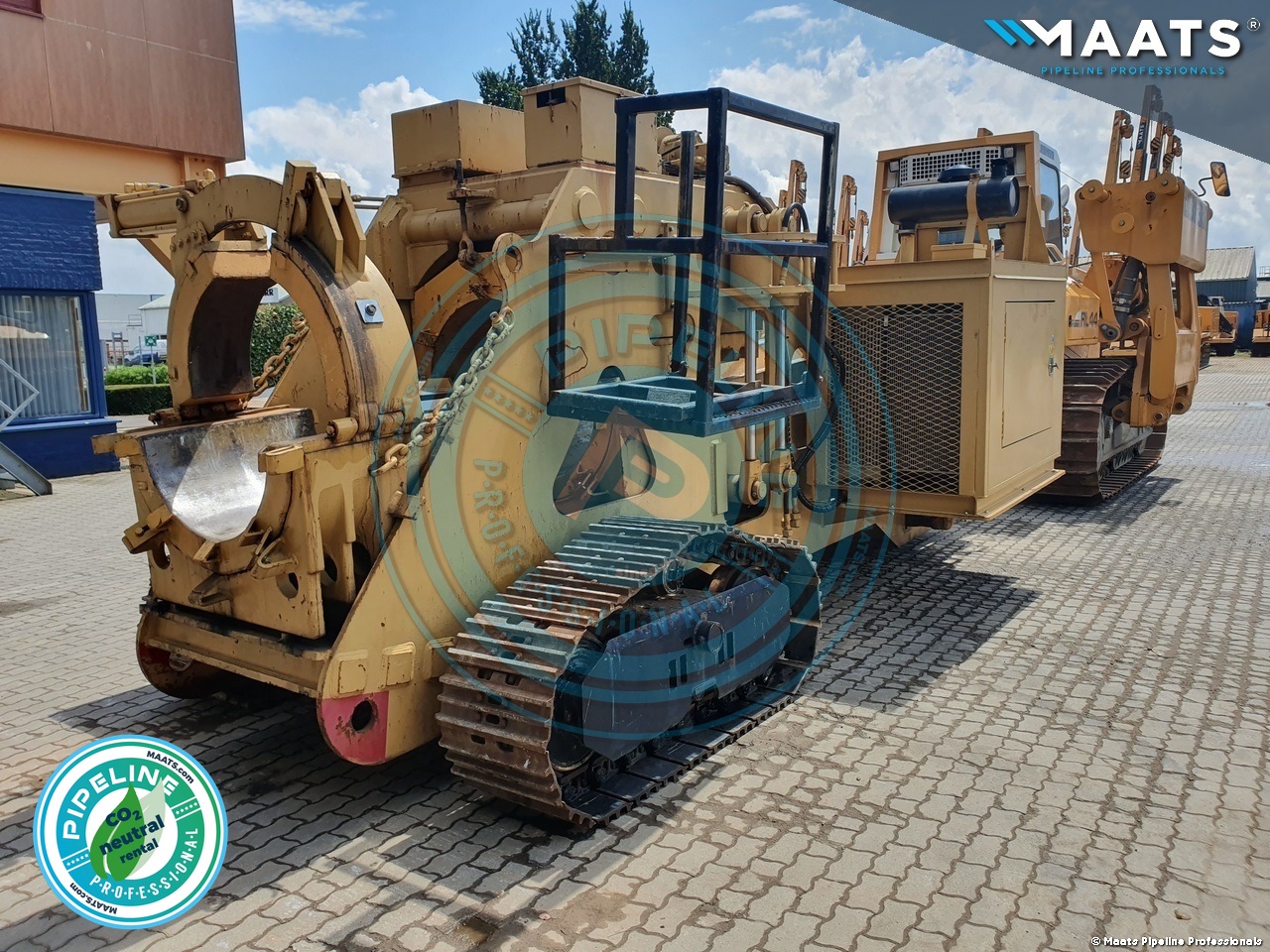

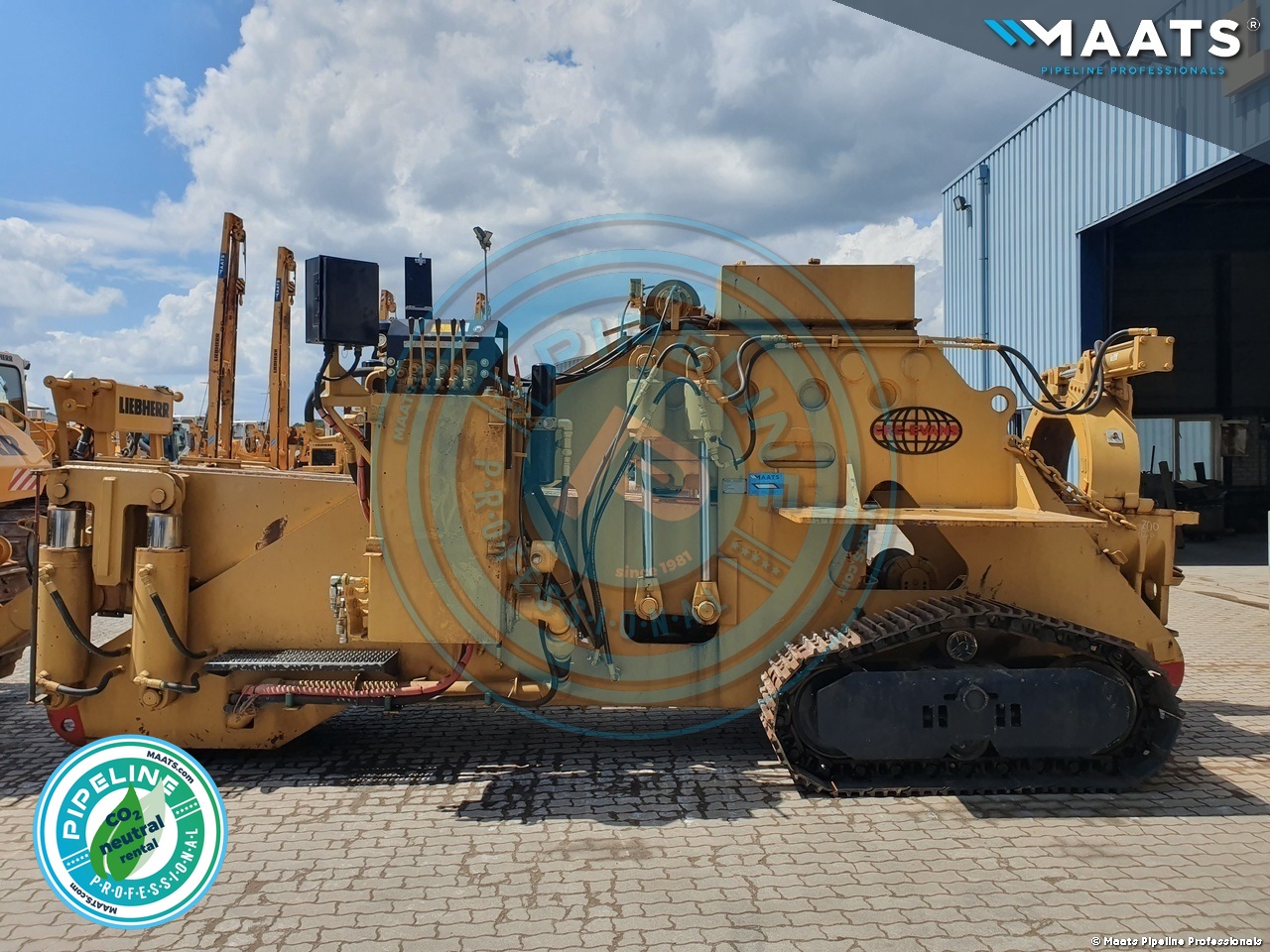

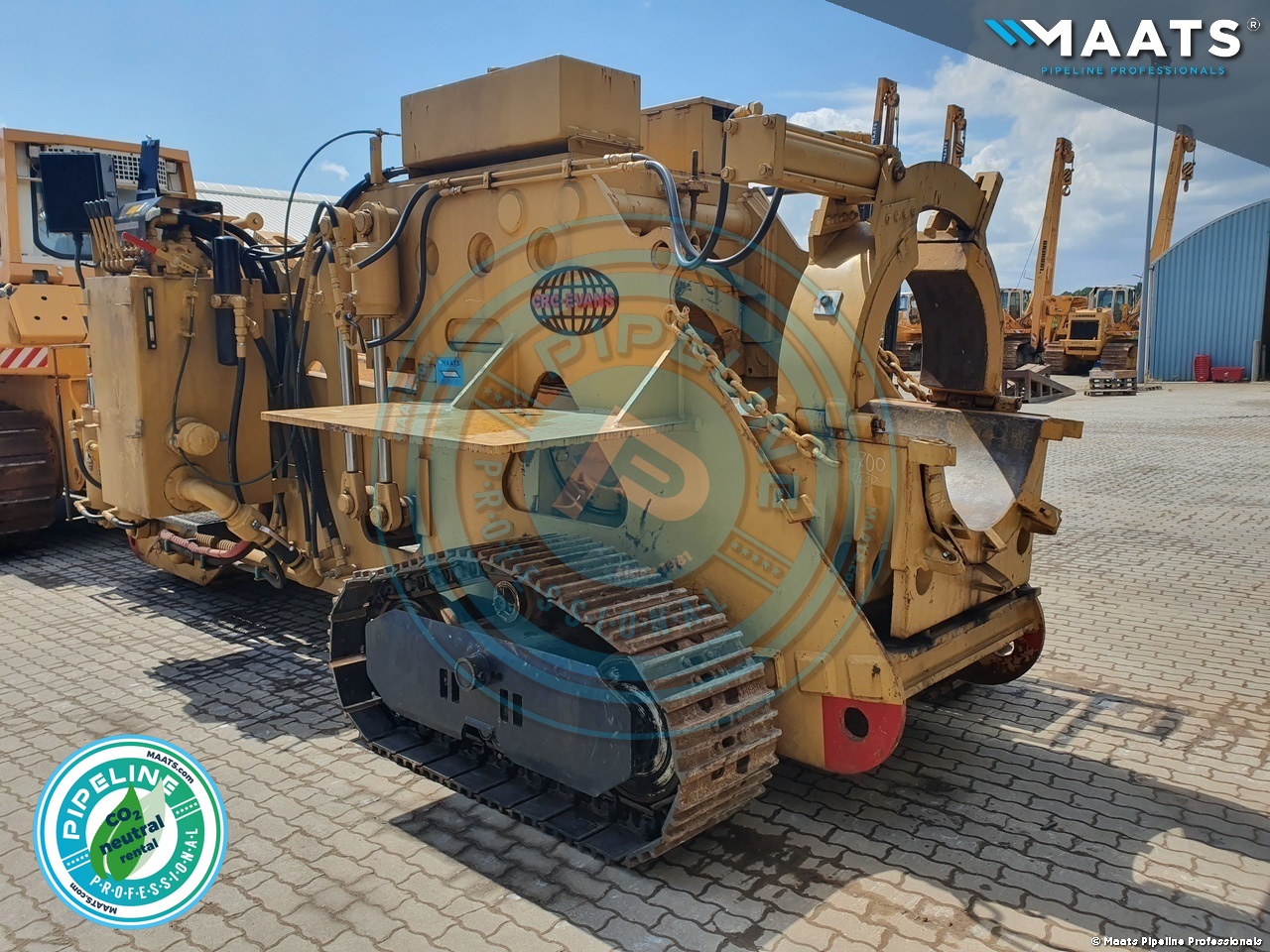

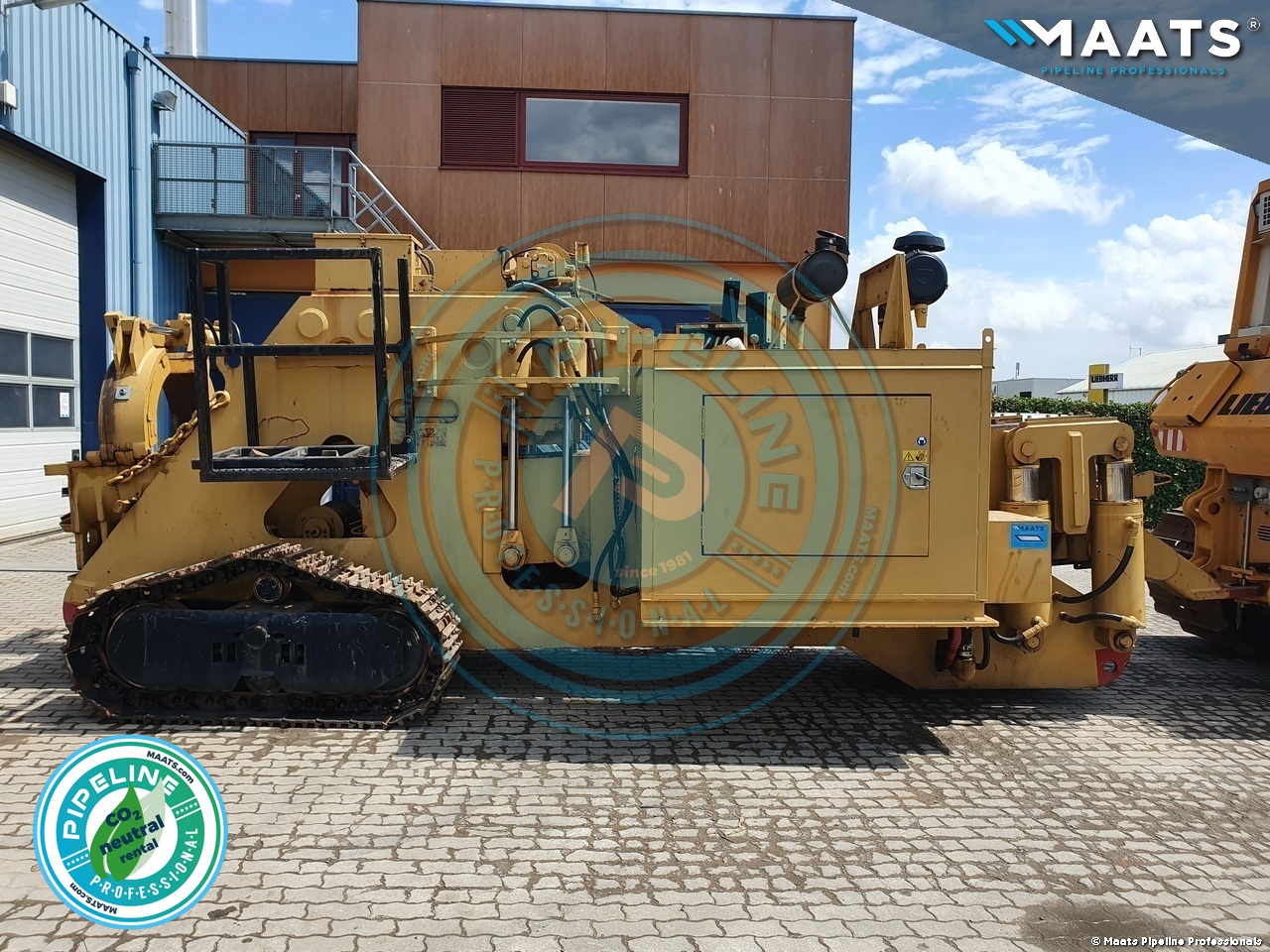

CRC-EVANS 22-36 pipe BENDING MACHINE for 22" to 36"
Manufacturer | CRC-EVANS |
Model | 22-36 Centurion Pipe Bending Machine |
Year of manufacture | 2008 |
Recorded hours | machine is currently rented |
Operating weight | 22.000 kgs |
Bending range | 22 inch to 36 inch |
Certification | CE |
Engine make & model | CATERPILLAR C6.6 |
Engine output | 129 kW |
Emission standards | EU Stage IIIA & USA EPA Tier3 |
Fuel tank capacity | 322 liters |
Configuration | Tracked chassis |
Hydraulic driven winch | |
Hydraulic PTO to drive a mandrel | |
Optional equipment | Bending sets |
Dies | |
Mandrels | |
Contact us for options & prices for options | |
Transport dimensions (LxWxH) | 7.420 mm x 2.860 mm x 2.810 mm |
Remarks | Availability subject to prior rental or sale |
Machine is located in our yard in GOOR - The Netherlands | |
Machine is available for rental as well: contact us for our rental rates | |
Product brochure | Specifications CRC-Evans 22-36 |
Price | Contact us for a detailed quotation including pictures and price |
